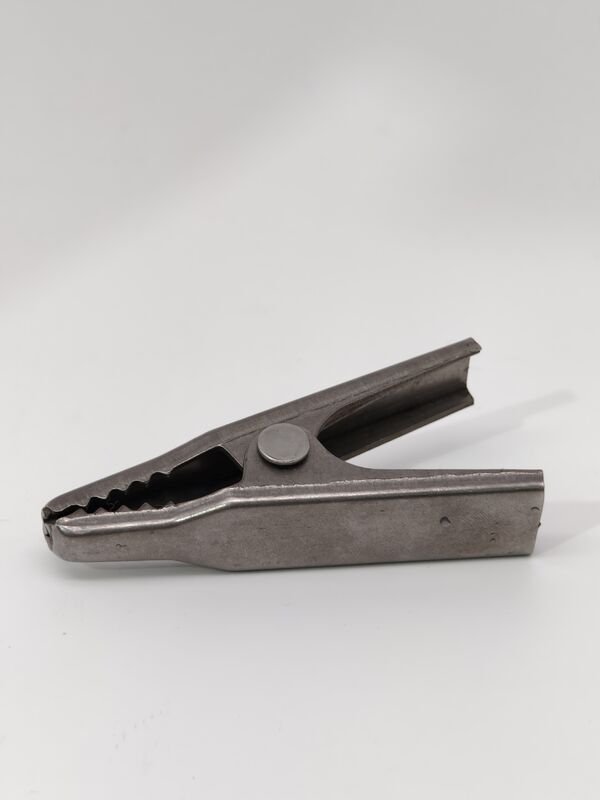

Spray Coating Clamp for Aluminum Profile Coating Line

The Spray Coating Clamp for Aluminum Profile Coating Line is a specialized fixture used in aluminum profile coating systems to securely hold workpieces during continuous spraying and curing processes.

In aluminum powder coating production, the clamp must not only provide stable hanging support but also match different profile structures, clamping positions, and coating requirements. Rongjun Hardware spray coating clamps are designed with a metal stamped structure and toothed jaw design, offering multiple size options including 45mm, 70mm, and 83mm lengths, with 4.5mm, 6mm, and 8mm jaw widths to meet different aluminum profile coating applications.

The product is mainly used for aluminum profile powder coating lines, industrial coating systems, and extrusion surface treatment applications.

Problem

Unstable Workpiece Holding During Aluminum Profile Coating

In continuous coating lines, aluminum profiles are usually transported by hanging conveyor systems. If the clamp size or structure does not match the profile, common issues may occur:

• Profile movement during transportation
• Improper clamping position affecting coating coverage
• Frequent fixture replacement for different profiles
• Limited flexibility when handling various aluminum profile sizes

For aluminum extrusion, window profiles, and solar frame applications, the coating clamp plays an important role as the connection component between the profile and conveyor system.

Cause

Clamp Structure and Size Selection Affect Coating Performance

The performance of a coating clamp depends on several factors:

1. Jaw Size Matching

Different aluminum profiles have different:

• Cross-section designs
• Wall thickness
• Hanging positions

A suitable jaw width helps achieve proper contact between the clamp and the profile.

2. Clamp Length Selection

Different clamp lengths influence:

• Hanging distance
• Coating space
• Conveyor installation requirements

3. Clamping Structure Design

A toothed jaw design provides defined contact points between the clamp and aluminum profile, supporting stable positioning during coating operations.

Solution

Multi-Size Spray Coating Clamp for Aluminum Profile Applications

Rongjun Hardware Spray Coating Clamp provides:

Multiple Size Options

These options allow customers to select suitable clamps according to:

• Aluminum profile dimensions
• Hanging requirements
• Coating line configuration

Toothed Jaw Design

The toothed clamping structure provides:

• Defined contact points
• Suitable profile holding structure
• Better adaptability for coating line applications

Metal Stamped Construction

The stamped metal body design provides:

• Compact industrial structure
• Suitable for continuous coating environments
• Practical solution for aluminum profile finishing lines

Application

Aluminum Profile Powder Coating Line

Used for:

• Architectural aluminum profiles
• Window and door profiles
• Industrial aluminum extrusion products

Aluminum Extrusion Surface Treatment

Suitable for:

• Profile hanging
• Conveyor transportation
• Spray coating processes

Solar Aluminum Frame Coating

Applied in surface coating processes for aluminum solar frame components.

Industrial Coating Systems

Used as a fixture component in automated coating production lines.

How to Choose the Right Spray Coating Clamp

1. Select Jaw Width According to Profile Structure

2. Select Clamp Length According to Line Layout

3. Confirm Profile and Hanging Conditions

Before selection, consider:

• Aluminum profile dimensions
• Clamping position
• Coating coverage requirements
• Conveyor system design

FAQ

Q1: What is a spray coating clamp used for?

A spray coating clamp is used to hold aluminum profiles during coating line operations, allowing profiles to move through spraying and curing processes.

Q2: Can this clamp be used for aluminum extrusion profiles?

Yes. It is mainly designed for aluminum extrusion surface treatment and powder coating applications.

Q3: What sizes are available?

Available specifications include:

• 45mm length with 6mm jaw width
• 70mm length with 8mm jaw width
• 83mm length with 4.5mm jaw width

Customized dimensions are also available.

Q4: How do I choose the correct spray coating clamp?

Selection should be based on:

1. Aluminum profile dimensions
2. Clamping position
3. Coating line hanging structure

Q5: Is this clamp suitable for powder coating lines?

Yes. The spray coating clamp is designed for aluminum profile powder coating and industrial coating line applications.
