Pneumatic Clamping Solution for Aluminum Anodizing Production | Improving Fixture Stability and Process Consistency

Product Overview

In aluminum profile anodizing production, the clamp is not only used for holding profiles but also plays an important role in positioning stability, electrical contact conditions, and production consistency.

With the development of automated surface treatment lines, traditional manual clamps may create challenges such as inconsistent clamping force, slower operation cycles, and frequent manual adjustments.

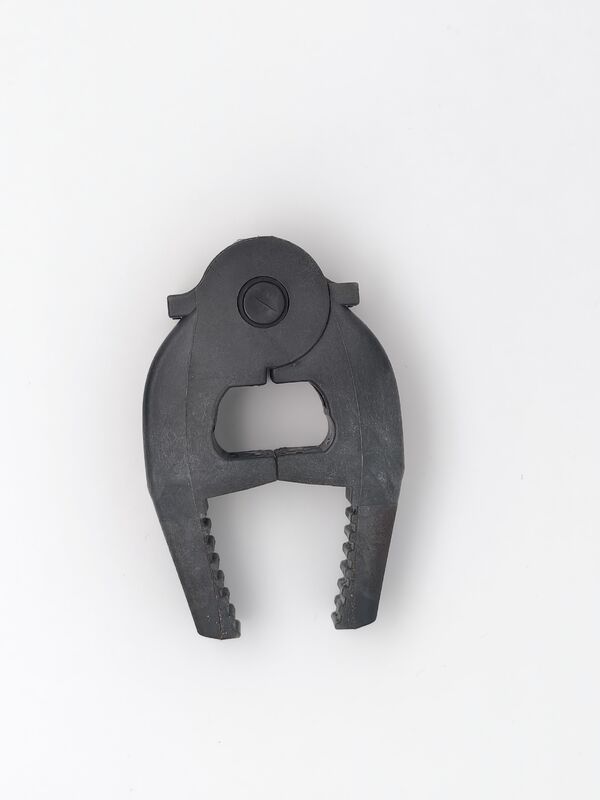

KRT-094 Pneumatic Anodizing Clamp is designed for aluminum extrusion surface treatment applications. It adopts a pneumatic operating structure with dual-side jaws and serrated anti-slip contact surfaces to provide reliable profile holding during continuous production processes.

The clamp supports customized colors and can be adapted to different production management requirements for anodizing, electrophoresis, and other aluminum finishing lines.

Problem

Why Does Clamp Stability Matter in Aluminum Anodizing Production?

During continuous anodizing processes, aluminum profiles usually pass through multiple treatment stages, including cleaning, anodizing, coloring, and sealing.

The fixture directly affects how the profile is positioned throughout the production cycle.

Common problems include:

Profile Position Movement

If the clamp does not maintain stable contact, aluminum profiles may shift during transportation or processing.

This can affect process consistency, especially for long extrusion profiles.

Limited Manual Operation Efficiency

Manual clamps require operators to repeatedly open, position, and close each fixture.

During high-volume production, differences in operator handling may lead to inconsistent clamping conditions.

Difficult Production Changeover

Aluminum extrusion manufacturers often process different profile designs.

A suitable fixture needs to support flexible production requirements without frequent adjustment.

Cause

Why Do Traditional Clamping Solutions Create Production Challenges?

The main issue is usually not only the clamp size but the matching between the clamp structure and actual production conditions.

Insufficient Contact Stability

Smooth clamp surfaces may provide limited mechanical holding performance when exposed to vibration or repeated production cycles.

KRT-094 uses a serrated jaw design to increase the mechanical contact between the fixture and aluminum profiles.

Different Manual Clamping Force

Manual operation depends on operator experience.

Pneumatic control helps create more repeatable opening and closing movements.

Automation Requirements

Modern aluminum finishing lines require fixtures that support:

Fast operation

Repeatable movement

Reduced manual intervention

Solution

How Does KRT-094 Improve Aluminum Surface Treatment Processes?

Pneumatic Clamping System

KRT-094 converts manual clamping actions into pneumatic-controlled operations.

Benefits include:

Reduced manual handling

Consistent operating cycles

Compatibility with automated production systems

Dual-Side Jaw Structure

The dual-side jaw structure applies balanced holding force on both sides of the aluminum profile.

This helps improve:

Clamping balance

Position stability

Repeatability during production

Serrated Anti-Slip Jaw Design

The serrated jaw surface improves the contact condition between the clamp and aluminum profile.

Compared with smooth surfaces, the serrated structure provides additional mechanical gripping support for repeated industrial operation.

Custom Color Options

KRT-094 supports customized colors.

This helps manufacturers:

Identify different fixture types

Manage multiple production lines

Match customer equipment requirements

Application

KRT-094 is suitable for:

Aluminum anodizing production lines

Electrophoresis processing lines

Industrial aluminum extrusion finishing

Automatic loading and unloading systems

How to Choose a Pneumatic Clamp

1. Match the Clamp with Profile Geometry

Selection should consider:

Profile cross-section

Clamping position

Profile weight

Fixture installation method

2. Consider Production Automation Level

For automated production lines, pneumatic clamps provide better compatibility with automatic control systems.

For low-volume production, manual clamps may still be suitable.

3. Evaluate Processing Environment

Surface treatment environments usually involve:

Chemical solutions

Continuous operation

Temperature changes

The clamp structure should match the actual working conditions.

FAQ

Q1: What applications is KRT-094 suitable for?

KRT-094 is designed for aluminum profile surface treatment applications, including anodizing, electrophoresis, and automated production lines.

Q2: What is the advantage of a pneumatic clamp compared with a manual clamp?

A pneumatic clamp provides automated opening and closing control, reducing manual operation and improving repeatability in continuous production.

Q3: Can KRT-094 be customized?

Yes.

The clamp supports customized colors and can be adapted according to customer production requirements.

Q4: Why does KRT-094 use a serrated jaw design?

The serrated jaw increases contact stability between the clamp and aluminum profile, supporting reliable holding during repeated processing cycles.

Q5: How can customers confirm whether this clamp fits their production line?

Customers should provide:

Aluminum profile drawings

Profile dimensions

Production line type

Installation requirements

A suitable fixture structure can then be selected according to actual application conditions.
