Pneumatic Anodizing Clamp for Aluminum Profile Surface Treatment Line

Product Overview

In aluminum extrusion anodizing, electrophoresis, and surface treatment processes, clamps are not only used for fixing profiles but also directly influence electrical contact stability, production rhythm, and processing consistency.

Traditional manual clamps may experience variations caused by operator handling, inconsistent clamping force, and long-term repeated operation. These factors can lead to profile movement, unstable positioning, and increased adjustment requirements.

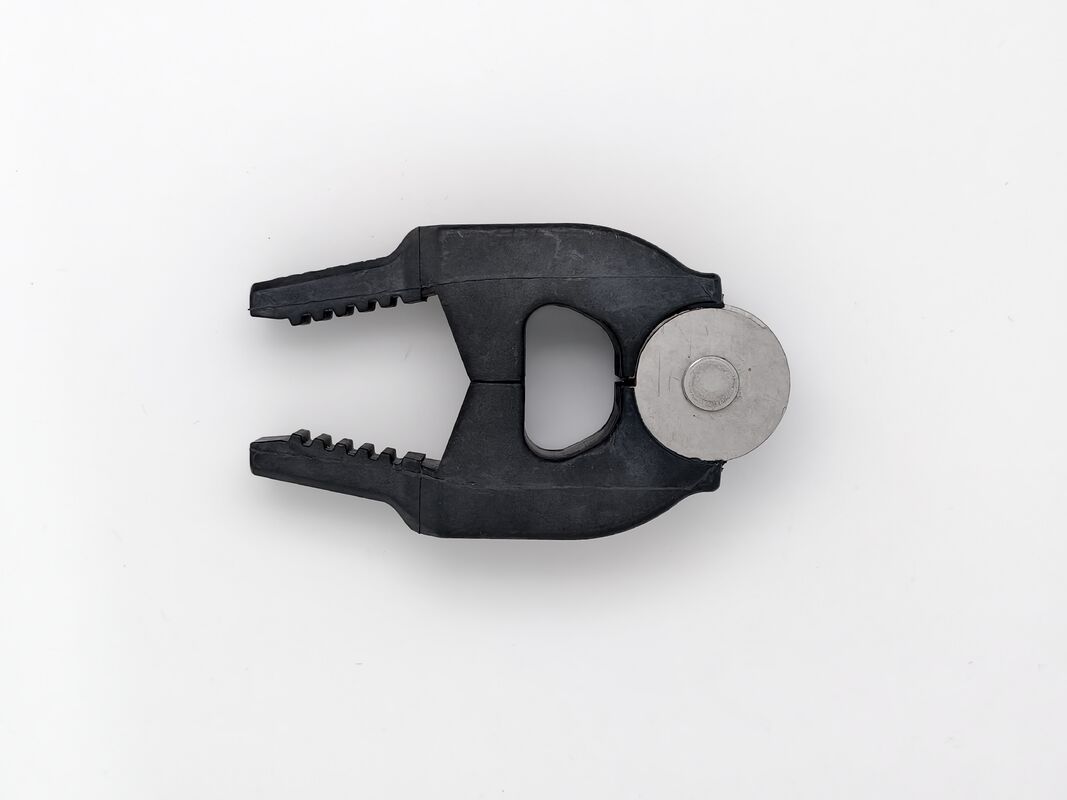

A pneumatic clamp uses compressed air to control opening and closing actions, providing repeatable clamping performance for automated production lines. With an integrated clamp body and serrated gripping jaws, this type of fixture improves mechanical contact with aluminum profiles and supports stable holding during continuous surface treatment operations.

Problem

Why Does Clamping Stability Become a Challenge in Automated Anodizing Lines?

During aluminum anodizing production, profiles usually go through:

• Loading
• Clamping
• Chemical treatment
• Washing
• Unloading

The clamp must repeatedly perform opening and closing cycles.

Any instability during clamping may cause:

1. Profile Position Variation

Aluminum profiles have different structures, including:

• Hollow sections
• Multi-chamber profiles
• Grooved profiles
• Large industrial extrusions

Incorrect gripping positions may result in slight movement during processing.

2. Inconsistent Manual Operation

Manual clamps depend on operators.

Different operators may create differences in:

• Clamping force
• Operation speed
• Loading consistency

For automated production, reducing human variation is essential.

3. Long-Term Cycle Wear

Surface treatment environments often include:

• Chemical solutions
• Continuous operation
• Frequent clamping cycles

Over time, conventional fixtures may require more adjustments due to wear and positioning changes.

Cause

What Causes Unstable Clamping Performance?

Many manufacturers focus only on whether a clamp can hold a profile. However, production stability depends on several factors, including contact design, structure, and application matching.

1. Limited Contact Area

Flat clamping surfaces mainly rely on friction.

When aluminum profiles have:

• Surface oxide layers
• Residue
• Different surface conditions

Holding stability may be affected.

The serrated jaw structure increases mechanical contact points between the clamp and the profile.

2. Human Operation Variation

Pneumatic operation provides controlled opening and closing movements.

Compared with manual operation, automated actuation helps reduce differences between repeated clamping cycles.

3. Production Rhythm Requirements

Modern anodizing lines require clamps that can provide:

• Fast opening
• Fast release
• Repeated operation
• Stable positioning

Solution

How Does a Pneumatic Clamp Improve Production Stability?

A pneumatic clamp provides an automated clamping method designed for repeated industrial operations.

1. Pneumatic Control for Repeatable Clamping

The pneumatic system controls clamp movement through compressed air.

Advantages include:

• More consistent operation
• Reduced manual variation
• Better compatibility with automated lines

2. Serrated Jaw Design for Better Holding Stability

The serrated gripping structure provides:

• Increased contact points
• Reduced sliding possibility
• Improved positioning stability

This design is suitable for aluminum profiles with different shapes and weight distributions.

3. Integrated Body Structure

The integrated clamp body design helps improve structural rigidity.

Compared with multi-component structures, integrated construction reduces potential movement between parts during repeated operation.

Application

Where Are Pneumatic Clamps Used?

Aluminum Anodizing Lines

Applications include:

• Aluminum profile hanging systems
• Automated anodizing lines
• Continuous surface treatment production

Electrophoresis and Coating Lines

Suitable for:

• Aluminum electrophoresis
• Surface coating production
• Automated processing equipment

Industrial Automation Systems

Used in:

• Automatic loading systems
• Industrial fixtures
• Positioning equipment

How to Choose a Pneumatic Clamp

1. Match the Clamp with Profile Structure

Consider:

• Profile thickness
• Contact position
• Cross-section design
• Clamping direction

2. Select According to Production Requirements

For:

• Continuous production
• Automatic handling
• High-frequency cycles

pneumatic operation is usually more suitable.

3. Consider Working Environment

Evaluate:

• Chemical exposure
• Temperature conditions
• Continuous operation requirements

FAQ

Q1: What is the advantage of a pneumatic clamp compared with a manual clamp?

A pneumatic clamp provides more consistent opening and closing control.

It reduces operator-related differences and is better suited for automated production environments.

Q2: Can pneumatic clamps be used for aluminum anodizing production?

Yes.

They are commonly used in aluminum surface treatment lines, but selection should consider profile size, chemical environment, and gripping position.

Q3: Why does a serrated jaw improve clamping stability?

The serrated jaw design increases mechanical contact between the clamp and the workpiece.

Compared with flat gripping surfaces, it provides more reliable positioning for repeated industrial operations.

Q4: How should engineers select a suitable pneumatic clamp?

Engineers should evaluate:

1. Profile dimensions
2. Maximum jaw opening
3. Working environment
4. Automation system requirements
5. Operating frequency

Correct matching helps improve long-term production reliability
