Pneumatic Anodizing Clamp for Aluminum Profiles | Automatic Clamping Fixture for Surface Treatment Line

Product Overview

In aluminum profile anodizing, electrophoresis, and surface treatment production, clamps do more than simply hold profiles. They directly influence positioning accuracy, electrical contact stability, and production consistency.

Traditional manual clamps or standard fixtures may face problems such as inconsistent gripping force, profile movement, and frequent manual adjustment during continuous operation.

This Pneumatic Anodizing Clamp is designed for aluminum surface treatment production lines. Through pneumatic opening and closing control, combined with a serrated jaw structure and spring return mechanism, it provides stable and repeatable clamping performance for automated production environments.

The product structure includes:

• Dual serrated jaws
• Pneumatic operation system
• Spring return mechanism
• Engineering plastic body structure

It is suitable for aluminum profile anodizing and surface treatment applications.

Problem｜Common Clamping Problems in Aluminum Surface Treatment

1. Profile Movement During Processing

During anodizing processes, aluminum profiles pass through multiple chemical treatment stages.

If the clamp cannot maintain stable positioning, profiles may move during production cycles.

Possible consequences include:

• Uneven surface treatment
• Incorrect profile positioning
• Reduced process consistency

2. Manual Clamping Cannot Meet High-Frequency Production

Manual clamps depend heavily on operator actions.

Common issues include:

• Different gripping force between operations
• Slow opening and closing
• Operator fatigue during long production periods

3. Different Profile Designs Require Better Holding Solutions

Aluminum extrusion profiles vary in:

• Cross-section design
• Wall thickness
• Edge structure

A standard flat clamp may not provide sufficient contact stability for different profiles.

Cause｜Why These Problems Occur

1. Limited Contact Between Clamp and Profile

Flat jaws mainly rely on pressure.

When aluminum profiles have liquid residue or surface changes, friction performance may decrease.

A serrated jaw increases contact points and improves mechanical gripping.

2. Manual Operation Creates Inconsistent Results

Automated production requires repeated cycles:

Opening → Clamping → Releasing → Repeating

Pneumatic control provides a more consistent operating method.

3. Continuous Production Requires Reliable Structure

Surface treatment lines often operate continuously.

The clamp structure must support:

• Repeated opening cycles
• Long-term operation
• Stable mechanical movement

Solution｜How Pneumatic Anodizing Clamps Improve Production

1. Pneumatic Control Improves Repeatability

The pneumatic opening system reduces operation differences caused by manual handling.

It can integrate with:

• Automatic loading systems
• Cylinder control systems
• Conveyor production lines

2. Serrated Jaw Improves Anti-Slip Performance

The serrated jaw structure provides:

• Increased contact friction
• Better profile holding stability
• Reduced movement risk

3. Spring Return Supports Repeated Operation

The internal spring mechanism helps maintain consistent movement during repeated production cycles.

Technical Specifications

Evidence Source:

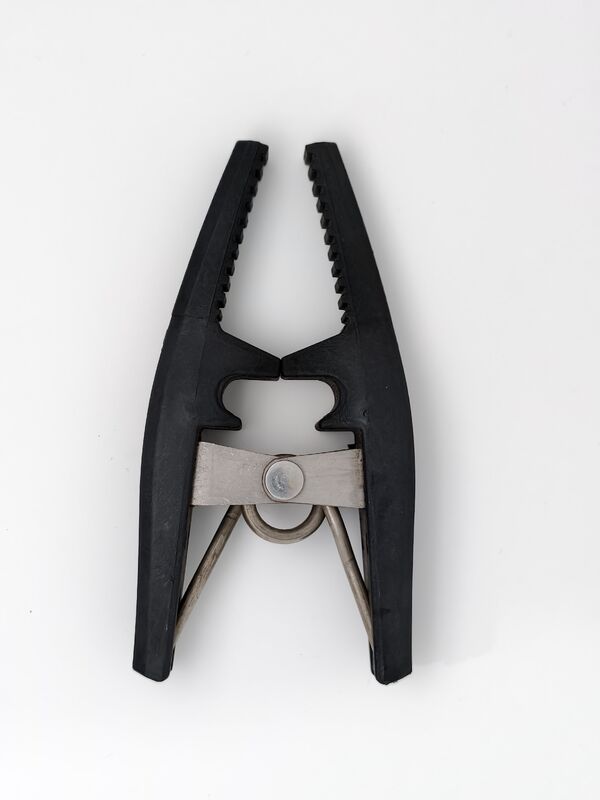

• Product Structure: Image No. RJ-Q38

Application

Aluminum Anodizing Production Lines

Suitable for:

• Aluminum profile anodizing lines
• Aluminum extrusion surface treatment
• Automatic loading systems
• Continuous finishing production

Industrial Aluminum Processing

Applications include:

• Architectural aluminum profiles
• Industrial extrusion profiles
• Precision aluminum products

Especially suitable for production environments requiring:

• High-frequency operation
• Automation compatibility
• Stable clamping

How to Choose

1. Select Jaw Design According to Profile Structure

Consider:

• Clamping position
• Profile edge thickness
• Required contact area

Serrated jaws are recommended when higher anti-slip performance is required.

2. Select Operation Method According to Production Mode

Manual clamps are suitable for low-volume production.

Pneumatic clamps are more suitable for:

• Automatic lines
• Continuous operation
• High-frequency cycles

3. Confirm Material Requirements

Anodizing environments include:

• Chemical solutions
• Humidity
• Long operating cycles

Material compatibility should be considered before selection.

FAQ

Q1: What is a pneumatic anodizing clamp used for?

A pneumatic anodizing clamp is used for holding aluminum profiles during anodizing, electrophoresis, and surface treatment processes.

It provides automatic opening and closing for production line applications.

Q2: Why choose serrated jaws instead of flat jaws?

Serrated jaws increase contact points between the clamp and aluminum profile, improving mechanical gripping stability.

Q3: Can this clamp be customized for different aluminum profiles?

Yes.

The jaw design and dimensions can be adjusted according to:

• Profile size
• Cross-section
• Clamping position

Q4: Is this clamp suitable for automatic anodizing lines?

Yes.

The pneumatic structure is designed for integration with automated production systems.

Q5: What information is required when selecting a pneumatic clamp?

Customers should provide:

• Aluminum profile dimensions
• Clamping position
• Production line type
• Surface treatment process
• Automation method

This information helps select the correct fixture design.
