Aluminum Anodizing Pneumatic Clamp Opener Air Powered Clamp Opener Tool

Pneumatic Clamp Opener for Aluminum Anodizing Line | Air-Powered Clamp Opening Tool

Product Overview

In an aluminum extrusion anodizing line, pneumatic clamps are repeatedly opened and released during profile loading and unloading. When a production line processes multiple batches of aluminum extrusions, clamp opening becomes a repeated production operation rather than an occasional manual task.

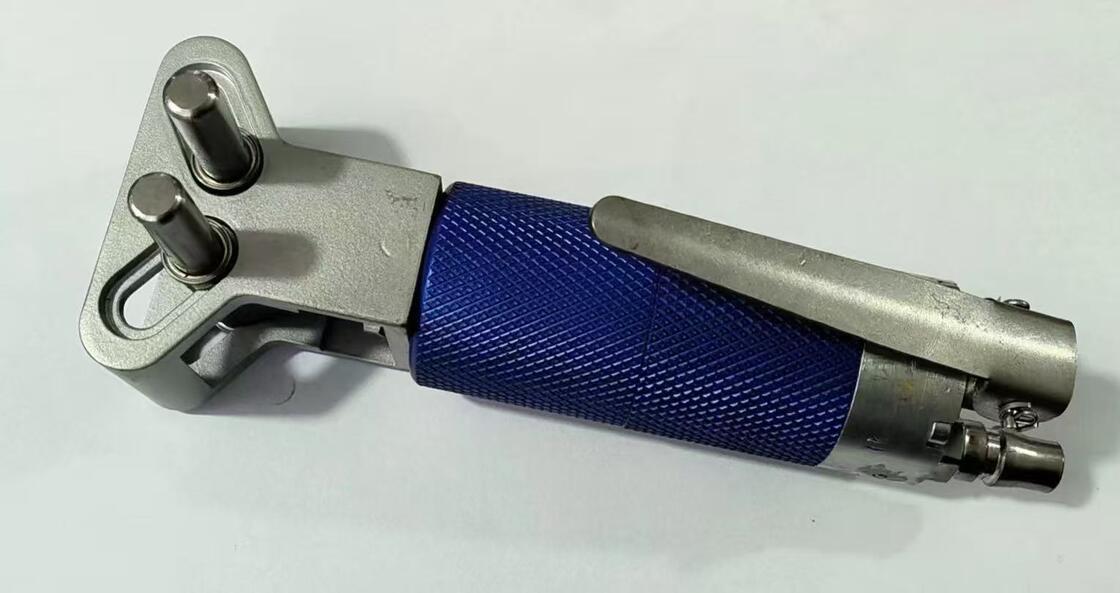

The Pneumatic Clamp Opener is a handheld, air-powered tool designed to assist with opening and releasing compatible pneumatic clamps. Compressed air provides the driving power for the opening mechanism, while the operator positions the tool according to the actual clamp location.

It is important to distinguish this product from a Pneumatic Clamp. The opener does not directly hold the aluminum profile; it operates as an auxiliary Clamp Opening Tool for the compatible clamp.

Problem｜Why Is a Dedicated Clamp Opener Needed?

Repetitive manual clamp opening increases operating steps

Before anodizing, aluminum profiles must be positioned and secured within the racking or clamping system. After surface treatment, the clamps must be released so that the profiles can be unloaded.

On a continuous production line, this opening action may be repeated across multiple clamps and production batches.

Using an unsuitable manual tool can require repeated force, repositioning and adjustment. This makes the opening process dependent on the operator and the contact position between the tool and clamp.

Similar clamp dimensions do not guarantee compatibility

Overall clamp size alone is not enough to select a pneumatic clamp opener.

Compatibility can depend on the opening mechanism, actuation position, required stroke, connection structure and mechanical contact point between the opener and pneumatic clamp.

For this reason, two pneumatic clamps with similar external dimensions may still require different opening-tool configurations.

Cause｜What Causes Pneumatic Clamp Opening Problems?

Incorrect mechanical contact position

The force generated by the opener must be transferred to the correct actuation point on the pneumatic clamp.

If the contact position is incorrect, the clamp may not move in its intended opening direction. Mechanical compatibility is therefore more important than simply selecting a tool based on external dimensions.

Variation in manual force

Conventional manual opening depends heavily on operator force and positioning.

Different operators may apply force at different angles or contact points. In repeated loading and unloading operations, these variations can require additional repositioning.

A dedicated pneumatic opening tool provides a defined mechanical structure for transmitting the opening action.

Air supply and tool specifications must match

Because the tool is powered by compressed air, the production-line air supply must match the opener specifications.

Before installation, users should verify the Working Air Pressure, Air Inlet Size and Air Connection. These values should come from confirmed technical data rather than specifications copied from similar tools.

Solution｜How Does the Pneumatic Clamp Opener Work?

Air-powered opening mechanism

The Pneumatic Clamp Opener uses a pneumatic / air-powered drive system.

Compressed air powers the internal actuator, which converts pneumatic energy into mechanical movement at the opening mechanism. The tool then transfers this movement to the corresponding actuation point of the pneumatic clamp.

The technical purpose is not simply to provide “more force.” Instead, it changes the opening process from direct manual force to a combination of pneumatic actuation, mechanical positioning and handheld control.

Handheld operation

The tool uses a handheld configuration, allowing the operator to position the opener according to the actual location of each pneumatic clamp.

This design is suitable for anodizing operations where operators still participate in profile loading and unloading while pneumatic power is used to assist repetitive clamp opening.

Technical Specifications

The working air pressure, air inlet size and overall dimensions should be confirmed from actual measurements or technical drawings before being published as fixed specifications.

Application｜Where Is the Clamp Opener Used?

Aluminum extrusion anodizing lines

The primary application is an Aluminum Extrusion Anodizing Line, where pneumatic clamps are used during profile racking, loading and unloading.

During loading, the opener can assist in opening the compatible clamp so that the extrusion can be positioned correctly. During unloading, it assists with clamp release after the surface-treatment process.

Production systems using multiple pneumatic clamps

When multiple pneumatic clamps are installed across a racking system, operators may need to repeat the same opening action many times.

A dedicated clamp opening tool provides a defined method of operating compatible clamps instead of relying on improvised mechanical tools.

Semi-automated production

Because this model uses handheld operation with pneumatic power, it is particularly relevant to production lines where operators position the tool manually while compressed air supplies the opening force.

Unless an automatic control interface is confirmed, the product should not be described as a fully automatic clamp opener.

How to Choose a Pneumatic Clamp Opener

Selecting the correct opener requires matching the tool to the actual pneumatic clamp rather than comparing only the overall dimensions.

Check the following before ordering:

1. Pneumatic Clamp Model — Identify the clamp structure and model currently used.
2. Clamp Opening Position — Determine where the opener contacts the clamp.
3. Opening Stroke — Confirm the movement required to release the clamp.
4. Working Air Pressure — Match the tool requirement to the factory compressed-air supply.
5. Air Inlet Size — Confirm compatibility with the existing hose and fitting system.
6. Operating Frequency — Consider how frequently the opener will be used during each production shift.

For customized pneumatic clamps, providing photos, dimensional drawings and the actual opening position is recommended before confirming compatibility.

FAQ

What is the difference between a Pneumatic Clamp Opener and a Pneumatic Clamp?

A pneumatic clamp holds or secures the workpiece, while a pneumatic clamp opener assists with opening or releasing the compatible clamp.

They perform different functions and should not be treated as the same product category.

Can one Pneumatic Clamp Opener work with every pneumatic clamp?

Not necessarily.

Compatibility depends on the clamp structure, actuation point, required opening stroke and mechanical interface. The term Universal Pneumatic Clamp Opener should therefore not be used unless compatibility has been verified across specific clamp models.

Why use compressed air for clamp opening?

Compressed air powers the pneumatic actuator and reduces the need for repetitive direct manual force.

However, correct operation still depends on suitable air pressure, mechanical compatibility and correct positioning of the opening tool.

Is this tool suitable for aluminum anodizing lines?

Yes. It is designed as an auxiliary clamp opening tool for pneumatic clamps used in aluminum extrusion anodizing and related surface-treatment operations.

What information should be provided before ordering?

Provide the pneumatic clamp model, photos, key dimensions, opening position, required stroke and production-line application.

For non-standard clamps, a dimensional drawing is particularly useful for checking whether the opener mechanism matches the actual clamp structure.
