How to Match a Pneumatic Clamp Opener with Different Clamps? A Guide to Jaw Structure and Opening Travel

Problem | Why Can't One Clamp Opener Automatically Fit Every Pneumatic Clamp?

One of the most common questions in aluminum profile racking is:

“Can this pneumatic clamp opener work with the clamps already installed on my line?”

The answer cannot be determined from appearance alone.

Different pneumatic clamps may use different jaw structures, operating-point positions, resting openings, maximum openings, body dimensions and opening mechanisms.

If the working points of the opener do not correctly correspond with the clamp structure, the tool may contact the clamp without producing a complete or stable opening movement.

For this reason, clamp opener selection should focus on mechanical compatibility rather than simply choosing a larger or stronger-looking tool.

The key question is:

Can the opener apply force at the correct points and create sufficient clearance for profile loading?

Cause | What Causes a Clamp Opener to Mismatch a Pneumatic Clamp?

Opening a pneumatic clamp is fundamentally a mechanical force-transfer process.

The front section of the opener must engage the correct operating positions on the clamp. Force is then transferred through these positions to move the clamp toward its open state.

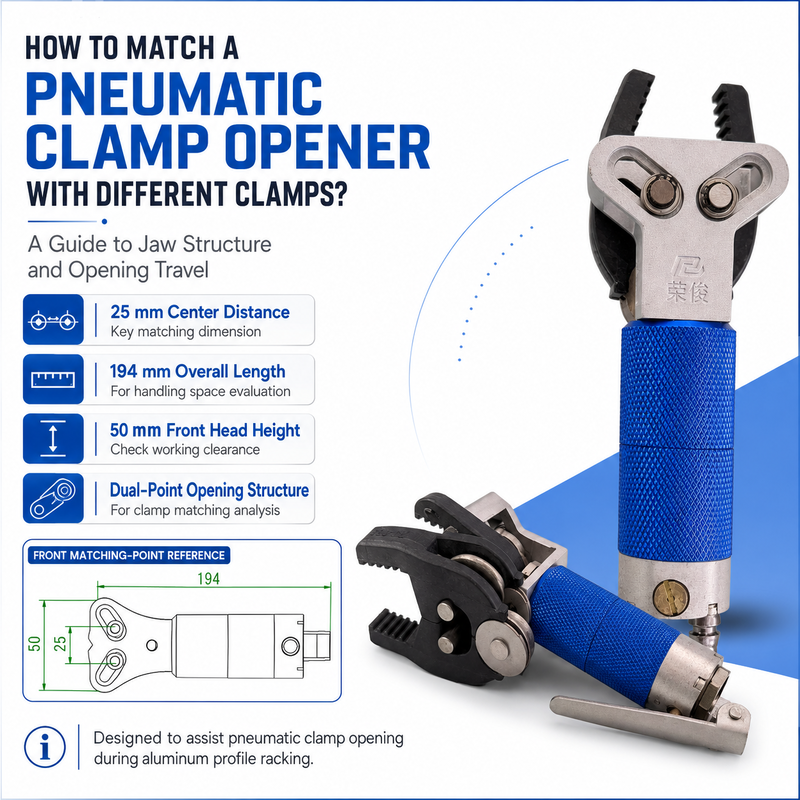

For the current pneumatic clamp opener, three dimensions have been confirmed from the technical drawing:

Overall Length: 194 mm

Front Head Height: 50 mm

Center Distance: 25 mm

Among these values, the 25 mm center distance is particularly important for mechanical matching.

It represents the distance between the centers of the two operating points on the front section of the opener.

If the corresponding positions on the pneumatic clamp are significantly different, several problems may occur:

only one operating point makes proper contact
the two sides do not move evenly
the required opening cannot be reached
the operator needs to change the tool angle repeatedly
the opener interferes with the clamp body

Therefore, the 25 mm center distance should be treated as a functional matching dimension rather than only a catalogue specification.

Cause | Why Do Resting Opening and Maximum Opening Matter?

Matching the operating points alone is not enough.

The real purpose of the opener is to create sufficient clamp clearance for the aluminum extrusion to be loaded.

Three dimensions should be considered separately.

Resting Opening is the jaw clearance before the clamp is opened.

Maximum Opening is the largest clearance allowed by the clamp structure.

Required Loading Clearance is the actual space required to insert and position the target aluminum profile.

The third value is often the most important in practical production.

For example, even if the theoretical maximum opening is slightly larger than the profile thickness, loading can still be difficult if there is almost no additional positioning clearance.

Therefore, the correct selection question is not:

“Can this opener open my clamp?”

It should be:

“Can this opener open my clamp sufficiently and consistently for the required aluminum profile to be loaded?”

Solution | What Is the Correct Matching Process?

A reliable selection process should begin with the pneumatic clamp rather than the opener.

First, identify the operating points of the existing clamp.

Determine which parts of the clamp must be acted upon to create the opening movement, and measure their relative position.

For this opener, the confirmed operating-point center distance is 25 mm.

Second, determine the required jaw clearance.

The resting opening and maximum opening of the pneumatic clamp should be considered together with the actual aluminum profile dimensions.

Third, evaluate the available working space.

This opener has a confirmed:

194 mm overall length

and

50 mm front head height

These values help determine whether the tool can be positioned around the clamp without interference from racks, profiles or nearby components.

Only after these checks should the opener model be selected.

A practical selection sequence is:

Clamp Structure → Operating Points → Required Opening → Working Clearance → Opener Selection

Solution | Why Does the Dual-Point Structure Matter?

The current opener uses two mechanical operating points at its front section.

When these points correspond correctly with the pneumatic clamp structure, the opening force can be transferred through a more defined mechanical path.

However, a dual-point design does not automatically mean compatibility with every clamp that also has two operating areas.

The important combination is:

Operating-Point Position + Center Distance + Clamp Geometry + Required Opening

For this model, the verified operating-point center distance is 25 mm.

This makes the 25 mm dimension especially useful in technical selection content.

Application | Where Is This Matching Important?

This type of opener is primarily used with pneumatic clamps during aluminum profile racking and loading.

A typical working sequence is:

pneumatic clamp positioned on the racking system
opener aligned with the clamp operating points
clamp opened with the assistance of the opener
aluminum profile inserted
profile contact position adjusted
opener released
pneumatic clamp performs the final holding function

Typical applications include:

aluminum anodizing lines
aluminum surface treatment racking stations
high-frequency aluminum extrusion loading operations
factories already using pneumatic clamps
projects involving multiple clamp designs

The important functional distinction is:

The opener assists the opening operation, while the pneumatic clamp performs the final holding operation.

How to Choose | How Can You Check Whether Your Clamp Matches This Opener?

1. Measure the Distance Between the Operating Points

The confirmed center distance of this opener is:

25 mm

This should be compared with the corresponding mechanical positions on the pneumatic clamp.

2. Provide Front and Side Photos of the Clamp

Useful reference information includes:

front view
side view
closed-jaw condition
open-jaw condition

This helps identify potential interference that cannot be judged from dimensions alone.

3. Check Resting and Maximum Opening

These values should be evaluated together with the actual aluminum extrusion size.

The theoretical maximum opening alone does not guarantee easy loading.

4. Evaluate the Available Operating Space

The opener has a confirmed 194 mm overall length and 50 mm front head height.

These dimensions should be checked against the available clearance around the racking station.

5. Do Not Select Only by Appearance

Two pneumatic clamps may look similar but use different operating-point positions or opening mechanisms.

For customized clamps, matching should preferably be based on actual dimensions and structure.

FAQ | Pneumatic Clamp Opener Matching

Q1: Why is the 25 mm center distance important?

It defines the spacing between the two operating points of this opener.

If the corresponding clamp positions do not match this geometry, the opening movement may not be transferred correctly.

Q2: If my clamp also has a 25 mm center distance, does that guarantee compatibility?

No.

Center distance is only one matching factor.

Clamp geometry, operating-point shape, required opening and surrounding clearance must also be checked.

Q3: Why should I provide the clamp's maximum opening?

Because the clamp must open far enough for the required aluminum profile to enter.

If the clamp itself cannot reach the necessary clearance, the opener cannot compensate for an unsuitable clamp opening range.

Q4: Does the 194 mm overall length affect selection?

Yes.

It is relevant to the available operating space around the clamp.

A compact racking arrangement may restrict how the opener can be positioned and operated.

Q5: What does the 50 mm front head height tell me?

It helps determine whether the front working section can enter the space around the pneumatic clamp without interfering with racks, profiles or other components.

Q6: Can this opener be used with a customized pneumatic clamp?

Compatibility can be evaluated, but it should not be assumed.

For customized clamps, actual photos, operating-point dimensions, jaw opening data and structural information should be checked before confirming the matching solution.
