Anodizing High Temperature Clamps Serrated Jaws Electrophoresis E Coating Clamp

Heat Resistant E-Coating Clamp with Serrated Jaws for Stable Aluminum Profile Holding

Product Positioning

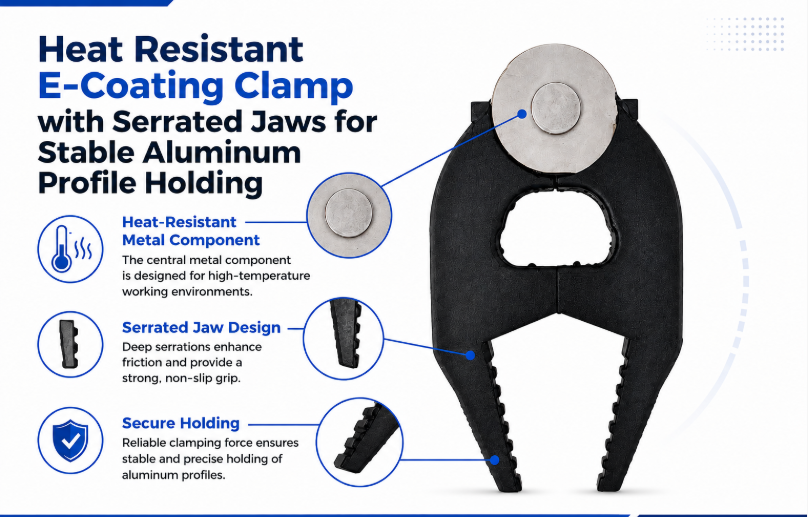

This electrophoresis clamp is designed for aluminum profile e-coating, electrophoresis, and surface treatment lines. It uses a two-jaw mechanical structure, dual serrated jaw surfaces, and a single top metal pivot assembly.

The confirmed high-temperature specification applies specifically to the central/top metal component, which is rated up to 280°C.

This distinction is important. The 280°C value should not automatically be applied to the entire black clamp body unless separate material or test data confirms that capability.

Problem

Why can clamping become unstable in high-temperature electrophoresis processes?

In aluminum electrophoresis and e-coating lines, workpieces may pass through pretreatment, coating, rinsing, baking, curing, and other elevated-temperature stages.

If a key mechanical connection cannot withstand the actual process temperature, repeated thermal exposure may affect its dimensions or operating condition.

For a two-jaw clamp, changes around the connection area can influence jaw position and overall clamping geometry.

Smooth aluminum extrusion surfaces also create another challenge.

If the jaw relies only on a flat contact surface, the workpiece may move more easily during transportation or processing when sufficient mechanical resistance is not available.

Cause

1. High temperature affects critical mechanical components

Not every part of a clamp performs the same function.

In this product, the top metal component forms an important part of the connection and jaw movement structure.

The confirmed specification is:

Heat resistance of the metal component: 280°C

This gives engineers a measurable parameter that can be compared with the maximum temperature of their production line.

2. Smooth aluminum profiles can increase slippage risk

Aluminum extrusion surfaces are generally smooth.

With a flat jaw, gripping depends heavily on clamping pressure and surface friction.

This clamp uses:

2 jaws + 2 serrated contact surfaces

The serrations provide multiple mechanical contact points and create additional resistance against movement.

3. Jaw structure determines how the workpiece is held

The clamp uses two opposing jaws.

Both jaws participate in holding the workpiece from opposite sides.

This provides a defined mechanical holding structure for aluminum profiles rather than relying on one-sided contact.

4. The pivot affects jaw movement

The product uses:

1 top metal pivot assembly

to connect the two clamp bodies.

The jaws open and close around this connection area, making the pivot an important structural point when evaluating high-temperature operating conditions.

Solution

280°C Heat-Resistant Metal Component

The key metal component of this electrophoresis clamp has a confirmed temperature resistance of 280°C.

For industrial buyers, this value is more useful than a general “heat resistant” statement because it can be compared directly with the actual process temperature.

For e-coating lines involving elevated-temperature baking or curing, buyers should first identify the maximum process temperature before selecting the fixture.

Dual Serrated Jaw Surfaces

Both jaws use serrated inner contact surfaces.

Compared with completely smooth jaws, serrations create multiple mechanical contact points and increase the resistance that must be overcome before the workpiece can move.

This makes the structure particularly relevant for smooth aluminum profiles.

A technically appropriate claim is:

helps reduce the risk of slippage

rather than an absolute claim such as:

zero slip

Two-Jaw Mechanical Clamping Structure

The clamp has:

2 opposing jaws

that hold the workpiece from both sides.

This gives a clear structural basis for discussing clamping consistency without relying on unsupported performance percentages.

Single Top Metal Pivot

A single top metal pivot assembly connects the two clamp bodies.

This component forms the main mechanical joint for jaw movement and is therefore an important point when evaluating fixture performance in elevated-temperature environments.

Technical Specifications

Application

Aluminum Profile Electrophoresis Lines

The clamp can be used to hold aluminum profiles during electrophoresis processing.

When the production line includes elevated-temperature baking or curing stages, the temperature rating of the key metal connection becomes an important selection factor.

The confirmed 280°C metal component rating provides engineers with a measurable reference for process matching.

E-Coating Production Lines

International buyers may search for this product as:

E-Coating Clamp

E-Coat Fixture

or

Electrophoresis Fixture

For these applications, fixture selection should consider both thermal conditions and mechanical gripping structure.

Aluminum Extrusion Surface Treatment

Long aluminum profiles may be affected by vibration, transportation movement, or changing orientation during processing.

The two-jaw structure holds the workpiece from both sides, while the dual serrated surfaces provide multiple mechanical contact points.

This combination is particularly relevant where reducing workpiece movement is important.

How to Choose

1. Identify the maximum process temperature

Start with the highest actual temperature in the production line.

For this product:

Central/top metal component: 280°C

If the process exceeds 280°C, this value alone is not sufficient to confirm compatibility.

Even below 280°C, exposure duration, repeated thermal cycles, and mechanical loading should also be considered.

2. Confirm exactly which component is heat resistant

This is essential.

A 280°C rating for one metal component should not automatically be presented as a 280°C rating for the entire clamp.

Buyers should separately confirm:

• Metal pivot temperature capability
• Black body material temperature capability
• Jaw temperature capability
• Continuous exposure duration
• Thermal cycling conditions

3. Match the jaw structure to the workpiece surface

For smooth aluminum profiles, serrated jaws can provide additional mechanical resistance against movement.

This product uses:

2 serrated contact surfaces

which makes it suitable for applications where slippage risk is a concern.

4. Match the jaw opening to the profile dimensions

The resting opening and maximum opening should also match the actual workpiece.

Before purchasing, confirm:

• Workpiece thickness
• Clamping position width
• Resting jaw opening
• Maximum jaw opening
• Required gripping depth

A good jaw design cannot compensate for an incorrect dimensional match.

FAQ

1. Is the entire electrophoresis clamp rated to 280°C?

No.

The confirmed 280°C rating applies to the central/top metal component.

The temperature capability of the black body and serrated jaws requires separate supporting data.

2. Why is the 280°C value important?

It provides a measurable selection parameter for high-temperature e-coating and electrophoresis applications.

Engineers can compare the 280°C component rating with the actual baking, curing, or process temperature.

3. Why does the clamp use serrated jaws?

Serrated jaws create multiple mechanical contact points.

For smooth aluminum profiles, this structure helps increase resistance to movement and reduce the risk of slippage.

4. What is the purpose of the two-jaw structure?

The product uses 2 opposing jaws to hold the workpiece from both sides.

This creates a defined two-sided mechanical clamping condition for aluminum profiles.

5. How do I know whether this clamp is suitable for my aluminum profile?

At minimum, confirm:

process temperature, workpiece dimensions, jaw opening range, and clamping position.

For high-temperature applications, also verify the temperature capability of each relevant component rather than relying on a general “heat resistant clamp” description.
