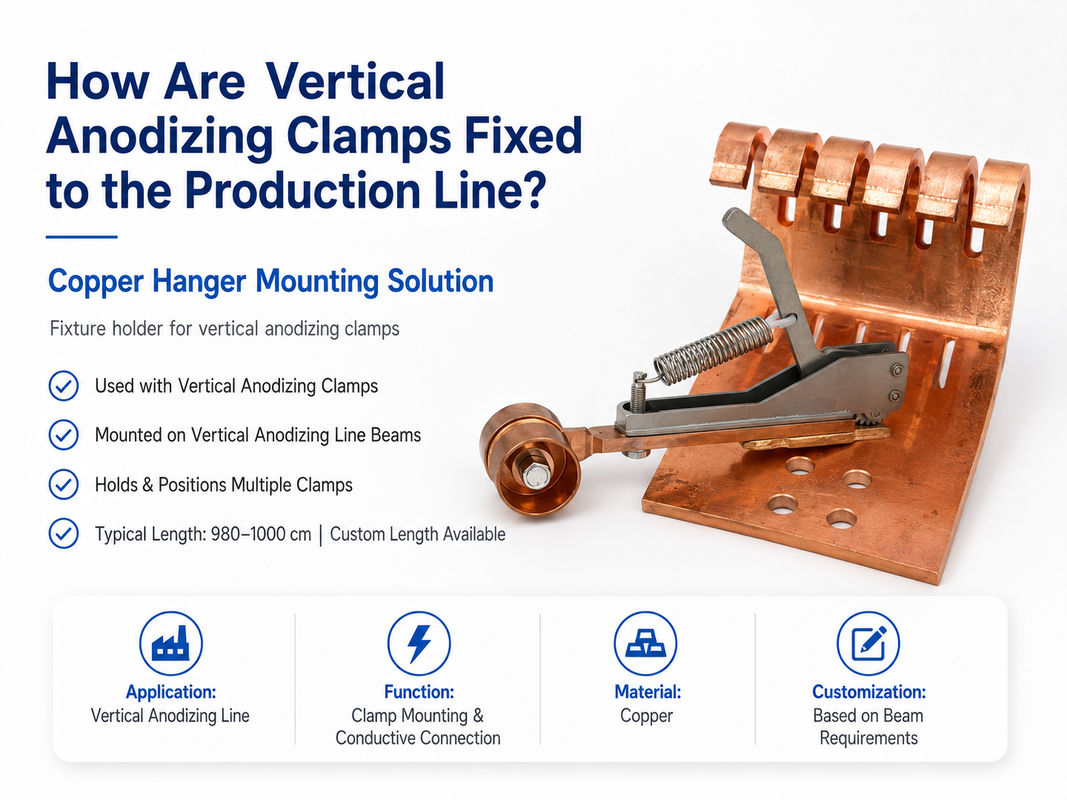

How Are Vertical Anodizing Clamps Fixed to the Production Line? Copper Hanger Mounting Solution

Product Positioning

In a vertical aluminum anodizing line, vertical anodizing clamps are not normally used as independent components. They need a stable connection to the production line beam.

The copper hanger acts as the intermediate mounting and conductive component between the beam and the vertical anodizing clamps.

Its main role is to position multiple clamps consistently, provide mechanical support, and maintain the electrical connection required during anodizing.

A typical copper hanger length is approximately 980–1000 cm (9.8–10 m), while customized lengths and mounting layouts are available according to the customer's beam design.

Problem

Why do vertical anodizing clamps become difficult to position consistently on the production line?

The common problem is usually not the clamp itself.

It is the mismatch between the production line beam, copper hanger, and clamp mounting layout.

Typical issues include:

• Inconsistent clamp positions
• Incorrect clamp center distance
• Beam length mismatch
• Unstable electrical contact
• Difficult clamp replacement
• Different mounting structures between clamp models

When every clamp is positioned independently, installation deviation may increase across a long production line.

For a beam close to 10 meters long, accumulated positioning errors can affect aluminum profile loading and overall line stability.

Cause

The beam, copper hanger, and vertical anodizing clamp must be designed as one system

A complete clamping system can be understood as:

Production Line Beam → Copper Hanger → Vertical Anodizing Clamp → Aluminum Profile

Each interface affects the next component.

1. Beam length determines copper hanger length

A typical hanger length is:

980–1000 cm

or:

9.8–10 m

However, actual design should consider:

• Effective mounting length
• End clearance
• Clamp quantity
• Clamp spacing
• Mounting hole positions

Two production lines with the same nominal beam length may still require different hanger designs.

2. Clamp spacing determines installation consistency

Incorrect clamp spacing may cause:

• Aluminum profile positioning errors
• Mechanical interference
• Uneven loading

The copper hanger therefore works as a common positioning reference for multiple vertical anodizing clamps.

3. The copper hanger is part of the conductive path

The electrical path can be understood as:

Power Supply → Beam → Copper Hanger → Vertical Anodizing Clamp → Aluminum Profile

The copper hanger is therefore not only a mechanical support component.

Poor contact surfaces or loose connections may increase contact resistance and reduce current transmission stability.

Solution

Use a customized copper hanger to mount and connect multiple vertical anodizing clamps

The most effective solution is to use the copper hanger as the standard interface between the production line beam and the clamps.

1. Unified Clamp Positioning

Clamp positions can be predefined on the copper hanger.

This helps reduce variation between individual clamps and creates a more consistent mounting layout.

2. Customized Length According to Beam Design

Typical length:

980–1000 cm

Customized designs can be produced according to:

• Beam total length
• Effective mounting length
• Beam profile
• Clamp quantity
• Clamp center distance
• Mounting holes
• Clamp model

3. Mechanical and Electrical Connection

The hanger should provide both:

• Mechanical support
• Reliable electrical contact

Design considerations include:

• Contact area
• Installation direction
• Structural rigidity
• Electrical path
• Maintenance space

Technical Specification

Application

Vertical Aluminum Anodizing Lines

The copper hanger is primarily used on vertical aluminum profile anodizing lines.

It is installed between the production line beam and the vertical anodizing clamps.

Its main functions are:

• Clamp mounting
• Clamp positioning
• Conductive connection
• Supporting profile loading

Automated Vertical Anodizing Lines

Automated production requires higher positioning consistency.

During lifting, transport, lowering, and tank entry, excessive variation in clamp position can increase adjustment difficulty.

A unified copper hanger helps maintain a common mounting reference.

Existing Line Upgrades

Copper hangers can also be used when modifying existing lines.

Typical situations include:

• Replacing clamps
• Changing clamp quantity
• Replacing beams
• Changing product specifications

Multi-Size Aluminum Profile Production

Different aluminum profile sizes may require different clamp arrangements.

Customized hanger layouts allow clamp quantity and spacing to be adjusted accordingly.

How to Choose

1. Confirm the Effective Beam Length

Do not provide only the total beam length.

Provide:

• Total beam length
• Effective mounting length
• End clearance

2. Confirm Clamp Quantity

Clamp quantity affects:

• Mounting hole quantity
• Clamp spacing
• Structural layout
• Contact positions

3. Confirm Clamp Center Distance

Center distance should be determined according to:

• Clamp width
• Aluminum profile size
• Installation space
• Mechanical interference

4. Confirm the Clamp Model

Different vertical anodizing clamps may have different:

• Base structures
• Contact positions
• Mounting widths
• Clamp head structures

The actual clamp model should therefore be confirmed before hanger design.

5. Confirm Beam Structure

Recommended information includes:

• Beam cross-section
• Mounting holes
• Fixing method
• Mounting surface width

FAQ

Q1: Must the copper hanger and vertical anodizing clamp be used together?

In most cases, yes.

The copper hanger is designed to mount and connect the vertical anodizing clamp.

The mounting structure and contact positions should match.

Q2: Why not mount vertical anodizing clamps directly on the beam?

Direct mounting may be possible in some designs, but it can make positioning, electrical contact, and maintenance more difficult.

A copper hanger provides a unified mounting reference.

Q3: Is 980–1000 cm a fixed length?

No.

It is a typical reference range.

The actual length can be customized according to the beam.

Q4: Is the copper hanger mainly for mechanical support or electrical conduction?

Both.

Mechanically, it holds the clamps.

Electrically, it forms part of the conductive path between the beam and the clamps.

Q5: What information is required for customization?

Recommended information includes:

1. Beam length
2. Effective mounting length
3. Beam cross-section
4. Clamp quantity
5. Clamp center distance
6. Clamp model
7. Mounting hole positions

These details help determine the correct copper hanger structure.
