How Do High Temperature Felt Rollers Support Hot Aluminum Profiles After Extrusion?

When an aluminum profile exits the extrusion die, it is still extremely hot and relatively sensitive to mechanical contact.

Industry references indicate that aluminum extrusion temperatures at the die exit can commonly reach approximately 510–550°C, after which the profile travels along the run-out table while being cooled by air, water spray, or other quenching methods.

At this stage, conveying is not simply about moving the profile forward.

The roller must support the profile weight while simultaneously handling high temperature, continuous friction, long operating cycles, and strict surface-quality requirements.

This is why a high temperature felt roller should be evaluated as a complete high-temperature conveying interface, rather than only as a heat-resistant component.

Problem: Why Is Conveying Freshly Extruded Aluminum More Difficult?

The section immediately after the extrusion press is one of the hottest areas of the downstream handling system.

Depending on alloy, profile geometry, extrusion speed, and process conditions, die-exit temperatures can be around 500–550°C or higher.

This creates several challenges.

First, ordinary rubber, plastic, and low-temperature felt materials may not tolerate direct and repeated contact with the hot profile.

Second, the aluminum surface is still relatively sensitive, making concentrated hard contact undesirable.

Third, extrusions are often long products supported simultaneously by multiple rollers.

If one roller becomes compacted, hardened, worn, or dimensionally inconsistent, the profile may no longer receive uniform support across the run-out table.

The key selection question is therefore not simply:

“Can this roller withstand high temperature?”

It should be:

“Can the roller maintain stable and uniform support under continuous high-temperature conveying conditions?”

Cause: Why Can Conventional Rollers Affect Hot Aluminum Conveying?

1. Excessive Heat Changes the Surface Material

When the roller covering operates beyond its suitable temperature range, the material may undergo thermal aging, hardening, softening, or carbonization.

Once the surface properties change, the friction and contact conditions between the roller and extrusion change as well.

2. Profile Weight Continuously Compresses the Felt

Long aluminum profiles are supported by multiple rollers along the run-out table.

If high temperature causes the felt to lose resilience, repeated compression may create local low spots or inconsistent roller diameters.

Over an entire conveyor line, these small differences can affect support uniformity.

3. Rolling and Sliding Friction Can Occur Together

Although the system is designed primarily for rolling contact, localized sliding may occur during acceleration, deceleration, pulling, profile movement, or speed differences between rollers.

High temperature combined with friction accelerates wear when the felt material is unsuitable.

4. Hot Profiles Require a Softer Contact Interface

A hard roller surface can create concentrated contact pressure.

For profiles intended for anodizing, powder coating, electrophoresis, polishing, or architectural use, surface condition is particularly important.

A heat-resistant felt surface provides a softer interface between the extrusion and the conveyor structure.

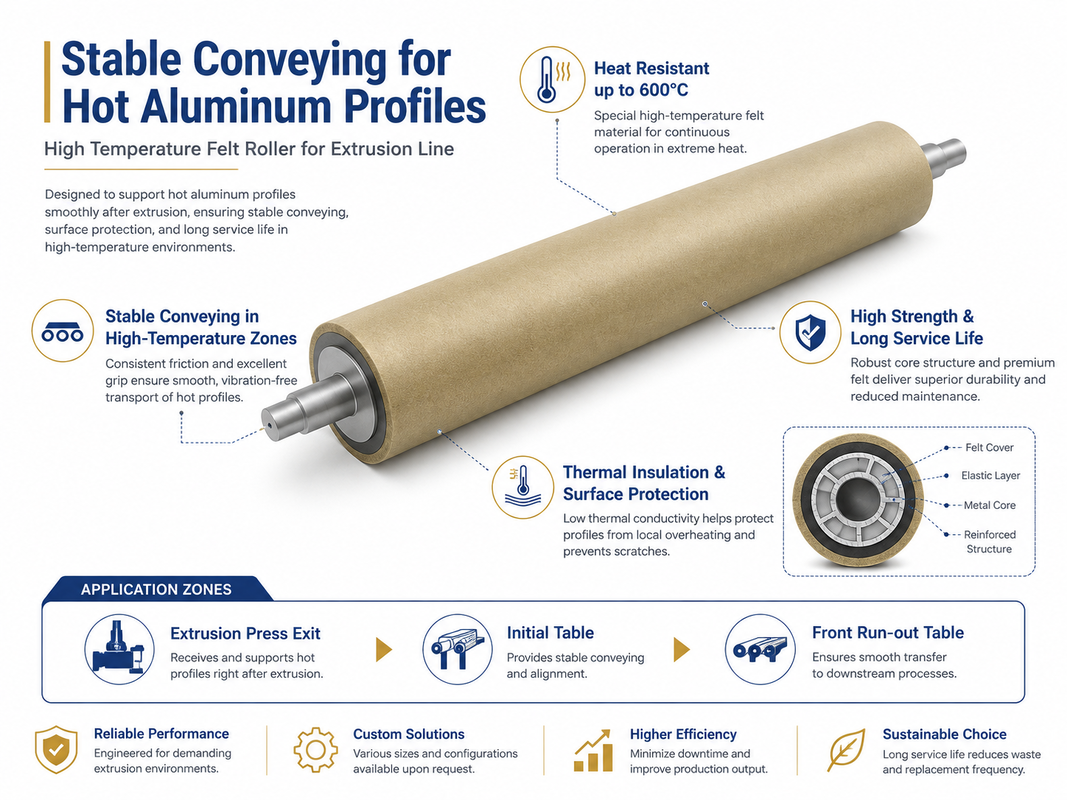

Solution: How Does a High Temperature Felt Roller Improve Conveying Stability?

The solution is not simply adding felt to a metal roller.

Stable hot-profile handling depends on the combination of:

Heat Resistance + Flexible Contact + Structural Strength + Correct Roller Dimensions

1. Heat Resistance up to 600°C for High-Temperature Zones

For positions close to the extrusion press, the felt roller can be designed for temperatures up to 600°C.

PBO-based felt products are also widely positioned for initial tables and first-contact areas where temperature requirements may reach approximately 550–600°C.

This makes the material more suitable for the hottest section of the extrusion handling process.

2. Flexible Contact Reduces Hard Surface Interaction

The felt surface creates a resilient interface between the aluminum profile and the metal roller body.

This helps distribute contact over a softer area instead of concentrating the load directly on a rigid surface.

It is especially useful for thin-wall profiles, architectural extrusions, and products requiring subsequent surface finishing.

3. High Strength Supports Long-Term Roller Stability

Heat resistance alone is not enough.

A felt roller also needs sufficient strength to resist compression and maintain its outer cylindrical geometry during repeated profile handling.

A more stable roller surface helps maintain consistent conveying height and contact conditions over extended operation.

4. Resistance to Premature Carbonization and Compaction

When conventional felt carbonizes or becomes compacted, a previously soft roller gradually turns into a harder contact surface.

A suitable high-temperature felt structure helps reduce premature thermal degradation under its intended operating conditions.

This supports more consistent roller performance over time.

5. Thermal Insulation Between the Profile and Roller Structure

The felt layer also provides a degree of thermal insulation.

It does not eliminate heat transfer, but it helps reduce immediate direct heat conduction from the hot aluminum profile into the underlying metal roller structure.

Application: Where Are High Temperature Felt Rollers Used?

Typical positions include:

Extrusion Press Exit

The profile is at or near its highest post-extrusion temperature.

Initial Table

This is one of the first continuous support areas for the freshly extruded profile.

Front Section of the Run-out Table

The run-out table carries the extrusion away from the die while cooling takes place. Public extrusion process references describe profiles extending along the run-out table directly after leaving the die.

Other High-Temperature Profile Transfer Positions

Any roller directly contacting aluminum before sufficient cooling should be selected according to its actual temperature zone.

A 600°C material is not necessarily required throughout the entire line.

As the extrusion cools downstream, different felt temperature grades can be selected for different sections.

How to Choose a Felt Roller for an Aluminum Extrusion Line

1. Determine the Actual Profile Temperature at the Roller

Do not select the roller based only on billet temperature or press settings.

The relevant value is the actual aluminum surface temperature when it contacts the roller.

2. Confirm the Effective Roller Length

The felt-covered working length should provide adequate support across the profile conveying area.

Incorrect working length may create insufficient support or unnecessary equipment size.

3. Confirm Roller Diameter

Roller diameter affects load support, contact geometry, rotational behavior, and available installation space.

For replacement projects, existing roller dimensions are especially important.

4. Confirm Shaft and Installation Dimensions

For customized rollers, useful dimensions include:

L – Overall Shaft Length

L1 – Roller Working Length

Bearing Position Diameter

Shaft Shoulder Dimensions

End Shaft Length

H – Relevant Shoulder or Installation Height

These dimensions determine whether the new roller can fit the existing extrusion conveyor.

5. Confirm Profile Weight and Production Cycle

Heavy profiles increase compression load.

High-output continuous extrusion increases repeated thermal exposure.

Two extrusion lines handling similar profile dimensions may therefore require different roller structures because their production speeds and operating cycles are different.

Recommended Selection Logic

Use:

Roller Position → Actual Temperature → Profile Load → Profile Width → Roller Dimensions → Shaft Structure → Operating Time → Felt Temperature Grade

rather than selecting a 600°C material first and forcing it into every position.

FAQ

Q1: What is the temperature of aluminum immediately after extrusion?

The exact temperature depends on alloy, extrusion speed, die design, and process settings.

Industry references report die-exit temperatures of approximately 510–550°C in many aluminum extrusion operations.

Q2: Why not use ordinary metal rollers for freshly extruded aluminum?

Metal rollers provide high mechanical strength, but they also create a hard contact surface.

For a hot and relatively sensitive extrusion, a heat-resistant felt layer provides a softer interface and helps reduce the risk associated with concentrated rigid contact.

Q3: Does every run-out table roller need a 600°C rating?

No.

A 600°C grade is mainly intended for high-temperature front sections such as the extrusion press exit, Initial Table, and early Run-out Table.

Lower downstream temperatures may allow the use of other felt grades.

Q4: Why can conveying become unstable after the rollers have been used for some time?

Do not check the bearings alone.

Inspect the felt for compression, carbonization, hardening, uneven wear, and changes in roller outside diameter.

Different roller heights can produce inconsistent support across the conveyor line.

Q5: How can I tell if the current felt temperature rating is too low?

Typical warning signs include rapid darkening, hardening, loss of flexibility, localized carbonization, and compaction, particularly on rollers closest to the extrusion press.

The actual profile temperature at those positions should be checked against the felt material rating.

Q6: What dimensions are required for a customized high temperature felt roller?

At minimum, provide the roller working length, outside diameter, overall shaft length, bearing installation diameter, shaft shoulder dimensions, shaft-end structure, and available installation space.

An existing roller drawing or sample dimensions can make replacement matching more reliable.

Conclusion

The first stage after extrusion is one of the most demanding areas for aluminum profile conveying.

With profile temperatures commonly around 510–550°C at the die exit, rollers installed on the Initial Table and front section of the Run-out Table must be selected specifically for high-temperature handling.

A high temperature felt roller rated up to 600°C combines heat resistance, soft surface contact, structural strength, thermal insulation, and resistance to premature carbonization to support stable handling of freshly extruded aluminum profiles.

For a B2B buyer, the correct approach is not simply to search for a “600°C felt roller.”

The roller should be matched according to the actual temperature zone, profile load, conveying position, roller dimensions, shaft structure, and continuous operating conditions.
