How Do High Temperature Felt Rollers Support Hot Aluminum Profiles After Extrusion?

On an aluminum extrusion line, felt rollers do much more than withstand heat.

They continuously carry profile weight, resist friction, operate through repeated heating cycles, and maintain consistent support over long production periods.

In many plants, felt rollers do not fail suddenly. Instead, they gradually develop surface wear, localized compression, hardening, carbonization, uneven diameter, or changes in conveying behavior.

These problems eventually increase replacement frequency and reduce line stability.

For this reason, evaluating roller life requires more than checking the maximum temperature rating.

The key question is whether the felt can maintain its structure under the combined effects of heat, compression, friction, and continuous operation.

Problem: Why Do Felt Rollers Wear and Deform Over Time?

Aluminum extrusion is typically a continuous production process.

Profiles repeatedly pass over the same roller surfaces, placing the felt under constant mechanical pressure and friction.

If the felt strength, density, or structure does not match the actual load, permanent compression may gradually occur.

Typical symptoms include:

surface thinning

localized flattening

uneven roller outside diameter

fiber wear or fuzzing

hardening in hot zones

carbonized or compacted areas

One worn roller may appear to be a minor issue.

However, when multiple rollers on the same run-out table wear unevenly, the extrusion no longer receives consistent support height.

This can directly affect conveying stability.

Cause: Why Does High Temperature Accelerate Roller Wear?

Roller life is determined by several operating conditions acting together.

1. Heat Can Reduce Long-Term Fiber Strength

Conventional fibers may not fail immediately at elevated temperatures.

However, prolonged thermal exposure can gradually reduce elasticity, toughness, and structural recovery.

Once the fibers lose resilience, the same profile load can create more permanent compression.

This is why apparent “wear” is often actually the combined result of thermal aging and mechanical loading.

2. Profile Weight Repeatedly Compresses the Felt

Heavy aluminum extrusions create higher pressure on the roller surface.

Large industrial profiles, thick-wall sections, or multiple profiles conveyed together require greater compressive strength.

If the felt structure is insufficient, permanent deformation can occur.

3. Rolling Contact Still Includes Friction

Although the system is designed for rolling contact, real production conditions include acceleration, deceleration, pulling, slight profile sliding, and differences in roller speed.

These conditions create localized sliding friction.

Repeated friction gradually removes fibers from the felt surface, especially when heat accelerates material degradation.

4. Hardened Areas Create Secondary Wear

Once high temperature causes the felt to harden or compact, the surface becomes less flexible.

This changes the contact condition and can generate additional abrasion.

Heat resistance and wear resistance are therefore closely connected.

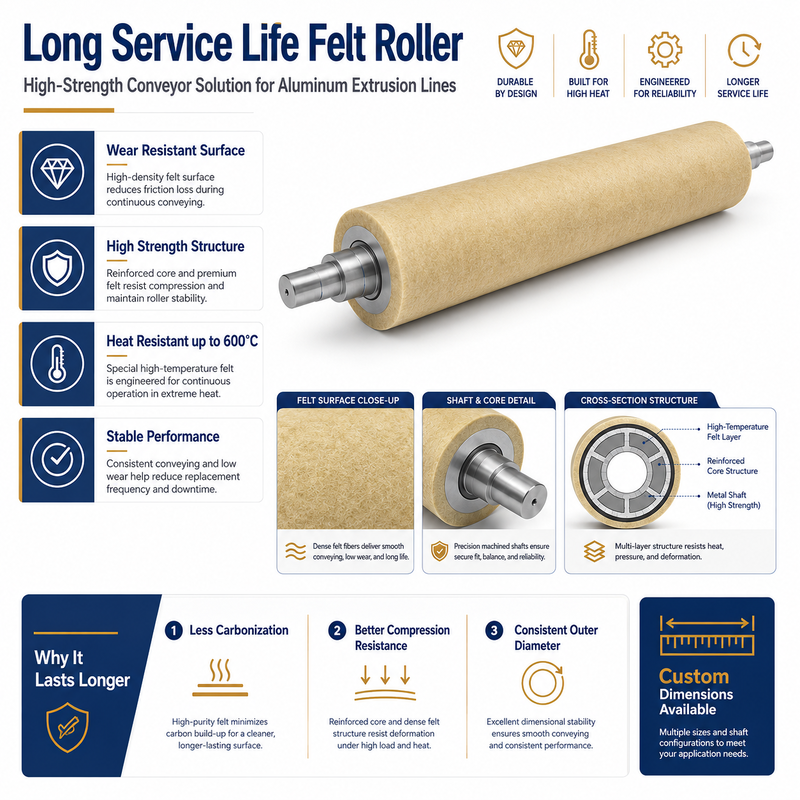

Solution: How Can a High-Strength Felt Roller Extend Service Life?

A durable felt roller needs to control four failure mechanisms:

Heat + Compression + Abrasion + Structural Deformation

1. Heat Resistance up to 600°C Helps Limit Thermal Aging

For high-temperature extrusion zones, the felt roller can withstand temperatures up to 600°C.

This makes it better suited to areas near the extrusion press exit, Initial Table, and front Run-out Table.

When the material temperature capability properly matches the actual operating zone, premature loss of strength and elasticity can be reduced.

2. High-Strength Felt Reduces Permanent Compression

“High strength” has a direct mechanical meaning.

The felt must resist long-term compression while maintaining a relatively stable thickness and outside diameter.

This is important because roller diameter determines support height.

If one roller permanently compresses and becomes smaller than surrounding rollers, the profile will no longer receive uniform support.

The practical benefits are:

reduced localized collapse

less permanent deformation

more stable roller diameter

more consistent conveying support

3. Wear-Resistant Surface Reduces Friction Loss

The felt surface repeatedly contacts hot aluminum profiles.

If fiber bonding and material strength are insufficient, the surface can quickly become fuzzy, thin, or damaged.

A more stable felt structure helps reduce the rate of mechanical wear.

This is particularly important on high-output extrusion lines operating continuously for long periods.

4. Resistance to Carbonization Helps Maintain a Soft Surface

When conventional felt becomes carbonized or compacted, its surface gradually becomes harder.

A suitable high-temperature felt helps delay this failure mode under proper operating conditions.

Maintaining a more stable soft contact surface benefits both roller life and profile protection.

5. Thermal Insulation Reduces Heat Transfer to the Roller Core

The felt layer also provides a degree of thermal insulation.

It cannot completely stop heat transfer, but it reduces direct thermal conduction from the hot profile to the internal roller structure.

This is valuable during continuous operation.

Application: Which Extrusion Lines Need Greater Focus on Roller Life?

High-Output Continuous Extrusion Lines

Lines running for long periods or multiple shifts experience more thermal cycles and more friction.

For these systems, roller durability can be more important than initial purchase cost.

Heavy Aluminum Profile Production

Large industrial and thick-wall profiles impose higher compressive loads.

In these applications, felt density and compressive strength are especially important.

High-Temperature Front Sections

Positions near the press exit, Initial Table, and early Run-out Table experience higher temperatures.

These zones are more likely to expose ordinary felt to accelerated aging.

Profiles with High Surface Quality Requirements

Architectural, decorative, anodized, electrophoretic, or powder-coated profiles require the roller surface to remain soft and uniform.

Localized hardening or heavy wear increases the risk of unwanted contact marks.

How to Choose a Longer-Life Felt Roller

Do not ask only, “How long will this roller last?”

Instead, break service life down into actual operating conditions.

1. Check the Actual Working Temperature

For rollers operating above 500°C, confirm that the felt material has sufficient thermal capability.

Operating too close to or beyond the material limit can significantly shorten service life.

2. Check Profile Weight

Light architectural profiles and heavy industrial profiles create very different roller loads.

Heavier profiles require greater attention to felt density, thickness, and compression resistance.

3. Check Line Speed

Higher conveying speeds increase contact cycles and friction per unit time.

High-output extrusion lines therefore require more stable felt construction.

4. Check Continuous Operating Time

A roller used for two hours per shift experiences very different thermal exposure from one operating for ten hours continuously.

Long production cycles make thermal stability more important.

5. Examine How the Existing Roller Fails

Typical failure signs include:

surface thinning

localized compression

fuzzing

carbonization

hardening

reduced roller diameter

These symptoms can help identify the real problem.

Compression damage suggests insufficient load resistance.

Darkening and hardening suggest temperature mismatch.

Heavy surface wear suggests excessive friction or insufficient abrasion resistance.

Recommended Selection Logic

Temperature + Profile Weight + Line Speed + Continuous Operating Time + Existing Failure Mode + Roller Dimensions = Better Felt Roller Selection

FAQ

Q1: Why does a felt roller develop local flat spots?

The most common reason is insufficient compressive strength for the actual profile load.

High temperature can also reduce fiber resilience, so permanent deformation becomes more likely when heat and heavy load occur together.

Q2: Does a 600°C temperature rating automatically mean longer service life?

No.

Temperature resistance is only one factor.

Excessive load, low felt density, poor alignment, or heavy sliding friction can still cause premature wear even when the temperature rating is sufficient.

Q3: When should a felt roller be replaced?

The roller should be inspected for replacement if it shows serious hardening, carbonization, delamination, excessive thinning, uneven diameter, or obvious changes in support height.

Large diameter differences between rollers can affect the entire conveyor system.

Q4: Does thicker felt always last longer?

No.

Felt thickness must be matched with roller geometry, required outside diameter, compression characteristics, and profile load.

A thick but low-density felt can still deform quickly.

Thickness cannot replace material strength.

Q5: How can replacement frequency be reduced?

Focus on five areas:

match the felt temperature grade to the actual zone

maintain consistent roller diameter and installation height

select appropriate felt density for the profile load

reduce abnormal sliding friction

inspect local wear and hardening regularly

These actions are usually more effective than simply increasing felt thickness.

Q6: What information is needed for a customized long-life felt roller?

Useful information includes actual operating temperature, maximum profile weight, profile width, line speed, daily operating time, roller outside diameter, working length, shaft installation dimensions, and common failure modes of the existing rollers.
