Why Does Serrated Jaw Design Matter in Automatic Aluminum Profile Racking?

On a fully automatic aluminum anodizing line, stable racking is not simply about applying more clamping force. The profile must enter the clamp, reach the intended depth, and establish a repeatable contact position.

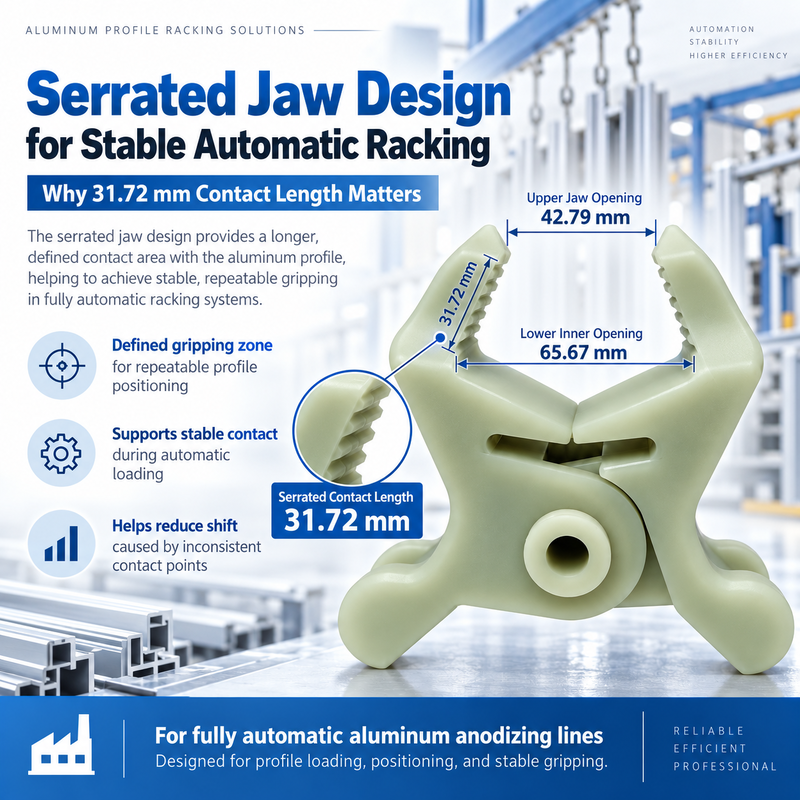

This automatic racking clamp uses two inward-facing serrated jaws. The product image confirms a 31.72 mm serrated jaw contact length, together with a 42.79 mm upper jaw opening and a 65.67 mm lower inner opening. These dimensions describe the geometric path from profile entry to final gripping contact.

Problem: Why Can a Profile Still Shift After It Has Entered the Clamp?

A profile physically entering the jaw does not automatically mean that it has reached a stable gripping position.

Typical automatic racking problems may include:

• inconsistent profile position after loading
• small movements along the gripping surface
• different contact points between production cycles
• the machine reaching its programmed position while the profile remains incorrectly positioned
• changing profile sections requiring a different gripping location

Manual operators can compensate by adjusting angle, depth, and position.

Automatic racking equipment normally repeats a predefined motion. The clamp therefore needs a clear and repeatable contact zone.

Cause: Why Can a Smooth Contact Surface Be Insufficient?

1. Gripping stability depends on more than clamping force

Resistance to sliding depends on several factors, including:

• normal clamping force
• friction condition
• contact position
• profile geometry
• direction of external forces

In simplified mechanical terms, resistance to tangential movement is related to:

friction coefficient × normal force

However, simply increasing clamping force does not solve an incorrect contact position.

If the profile contacts the wrong area, positional movement can still occur.

2. Serrations create defined local contact points

The inward serrated jaw geometry provides multiple localized contact points instead of relying only on one smooth surface.

For automatic racking, the practical value is that the profile can establish a more clearly defined gripping region after reaching the correct depth.

This does not mean a serrated jaw guarantees zero slipping.

Performance still depends on:

• insertion depth
• actual contact location
• available clamping force
• profile surface condition
• profile geometry

The serrated structure must therefore be matched with the correct gripping position.

3. Contact length defines the usable gripping region

The confirmed:

Serrated Jaw Contact Length: 31.72 mm

provides a measurable reference for evaluating the gripping zone.

The key engineering question is:

Does the intended profile contact surface actually reach this 31.72 mm serrated region?

If the profile only contacts the very top of the teeth, or if the contact point falls on a groove, radius, or narrow edge, the designed serrated area may not be fully utilized.

Solution: How Should the 31.72 mm Serrated Region Be Used in Clamp Selection?

Step 1: Make sure the profile can enter correctly

Effective serrated contact is only possible after the profile reaches the correct position.

The:

42.79 mm Upper Jaw Opening

provides an entry-clearance reference.

If interference occurs during entry, the serrated gripping area cannot function as intended.

Step 2: Confirm sufficient insertion depth

The:

65.67 mm Lower Inner Opening

provides a reference for the wider internal space.

This helps answer:

Can the profile move far enough into the clamp to reach an appropriate position within the serrated jaw zone?

The three dimensions therefore form one continuous selection sequence:

42.79 mm — Entry

↓

65.67 mm — Internal clearance

↓

31.72 mm — Serrated contact

Step 3: Select an appropriate profile contact surface

Not every point on an extrusion is equally suitable for serrated gripping.

Prefer a gripping location with:

• a relatively continuous surface
• no large groove at the contact point
• no very thin sharp edge
• repeatable cross-sectional geometry

If the gripping point is located on an irregular groove or radius, the actual contact condition may change with small positioning differences.

Step 4: Maintain consistent automatic loading geometry

Automatic equipment works through repetition.

For the serrated jaw to provide a consistent contact condition, the profile should ideally:

• enter from the same direction
• reach a similar insertion depth
• contact approximately the same serrated region each cycle

This is more important than simply stating that the clamp has an “anti-slip” jaw.

Application: Where Does the 31.72 mm Serrated Contact Zone Matter?

Automatic aluminum anodizing racking

The serrated region provides a measurable reference for defining where the profile should contact the clamp during automatic loading.

Production lines handling multiple extrusion sections

For different aluminum profiles, the 31.72 mm dimension can help engineers determine:

• whether the intended contact surface reaches the serrated zone
• whether the gripping position needs to change
• whether another clamp geometry may be required

Introducing a new extrusion profile

Before running a new profile on an automatic line, the expected gripping point can be marked on the profile drawing and compared with the clamp geometry.

This can identify potential interference before production trials.

Troubleshooting inconsistent profile positioning

If machine movement is repeatable but profile position is not, check:

1. Whether the profile reaches the serrated zone
2. Whether the contact point is consistent
3. Whether the profile contacts only the edge of the teeth
4. Whether grooves, ribs, or radiused surfaces affect the contact condition

How to Choose a Serrated Automatic Racking Clamp

1. Identify the actual gripping location

Do not rely only on the overall extrusion width.

Determine where the automatic system will actually grip the profile.

2. Check the entry opening

Confirm that the gripping section can pass through the:

42.79 mm Upper Jaw Opening

along the actual loading direction.

3. Check internal clearance

Verify that the profile can continue into the:

65.67 mm Lower Inner Opening

without interference.

4. Check the serrated contact region

Determine whether the intended contact surface can reach the:

31.72 mm Serrated Jaw Contact Length

5. Evaluate the contact geometry

Dimensions alone are not sufficient.

For a more accurate selection, provide:

• extrusion cross-section drawing
• intended gripping point
• loading direction
• required insertion depth
• automatic machine motion direction

This allows the serrated jaw to be evaluated against the actual operating condition.

FAQ

Q1: Why are serrated jaws used on an automatic racking clamp?

Serrated jaws provide multiple localized contact points and create a more defined gripping region.

This is useful in automatic racking systems where the profile needs to reach a repeatable position during each loading cycle.

Q2: Does 31.72 mm represent the total jaw length?

No.

Based on the current product image, 31.72 mm represents the serrated contact length on one jaw, not the total physical length of the jaw.

Q3: Is a serrated jaw always more stable than a smooth jaw?

Not necessarily in every application.

Gripping stability also depends on clamping force, surface condition, profile geometry, contact position, and external load direction.

The serrated design provides a defined contact geometry, but correct matching is still essential.

Q4: Is a longer serrated contact length always better?

No.

The important factor is whether the intended profile surface reaches an appropriate part of the serrated region.

A longer serrated zone cannot compensate for an incorrect gripping position or structural interference.

Q5: Why should 42.79 mm and 65.67 mm also be checked?

Because the profile must reach the serrated area before effective gripping can occur.

The 42.79 mm upper jaw opening relates to entry clearance, the 65.67 mm lower inner opening relates to internal clearance, and the 31.72 mm serrated contact length relates to the final gripping region.

Together, they provide a more complete method for evaluating automatic racking clamp compatibility.
