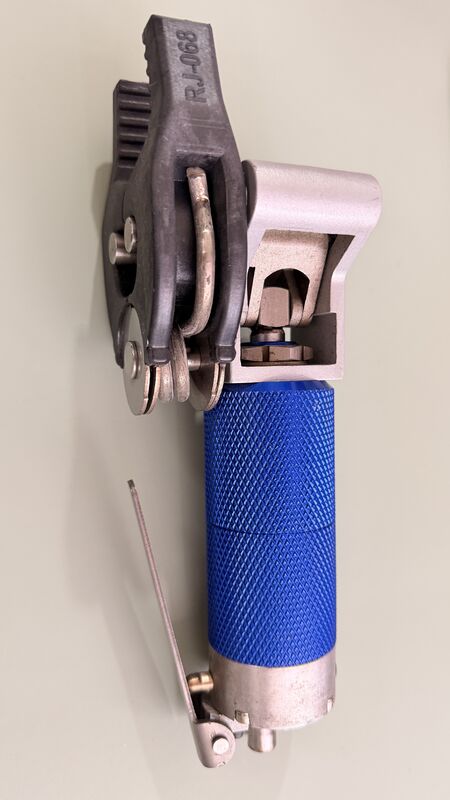

Aluminum Profile Clamp Opener Tool 194mm Improve Continuity Fixture Opener

How Does a Clamp Opener Improve Aluminum Profile Racking Continuity? The Role of Fast Pneumatic Clamp Opening in Anodizing Production

Problem | Why Does Aluminum Profile Racking Sometimes Feel Slow Even When Operators Work Quickly?

In an aluminum anodizing line, racking is a sequence of connected actions rather than one simple operation.

A typical cycle includes:

Pick Profile → Open Clamp → Insert Profile → Adjust Contact Position → Release Opener → Clamp Closes → Move to the Next Profile

If one step is inconsistent, the entire racking rhythm can be interrupted.

One common source of interruption is the clamp-opening stage.

When operators repeatedly open pneumatic clamps by hand, the opening angle, force position and jaw clearance may vary from one cycle to another.

One small delay may appear insignificant.

However, when dozens of clamps are handled on the same rack, these short interruptions accumulate and affect the continuity of the whole racking process.

The real question is therefore not only:

“Can the clamp hold the profile?”

It is also:

“Can the clamp enter the loading position quickly and consistently?”

Cause | Why Does Clamp Opening Affect the Entire Racking Cycle?

The primary purpose of a pneumatic clamp is to hold the aluminum profile securely.

To maintain stable holding, the clamp must retain a defined closing force and mechanical structure.

Before loading, this closed condition has to be overcome.

When operators open the clamp manually, three continuity problems may appear.

First, the opening action depends on operator force.

Different operators may apply force at different positions or angles.

Second, loading clearance may vary.

If the jaw is not fully opened, the operator may need to hold the clamp and position the extrusion at the same time.

Third, repeated actions magnify small inconsistencies.

When the same movement is repeated across many clamps, even minor interruptions can affect the overall racking rhythm.

The issue is therefore not that manual opening is impossible.

The issue is that manual opening can make the workflow less repeatable.

Cause | What Does “Racking Continuity” Actually Mean?

Racking continuity does not simply mean making one clamp open faster.

It means keeping the sequence consistent:

Position Opener → Open Clamp → Load Profile → Adjust → Release → Move to Next Clamp

When the operator follows the same mechanical sequence repeatedly, it becomes easier to establish a stable working rhythm.

This is where a dedicated clamp opener becomes useful.

It does not improve the holding performance of the pneumatic clamp itself.

Instead, it standardizes the transition from the closed condition to the loading condition.

This distinction is important.

Clamp performance is about secure holding.

Racking continuity is about consistent loading.

The clamp opener mainly addresses the second issue.

Solution | How Does a Clamp Opener Improve the Racking Rhythm?

The purpose of the opener can be summarized as:

Helping the pneumatic clamp enter a loading-ready condition in a more controlled way.

The current opener uses a dual-point front structure.

The confirmed center distance between these two operating points is 25 mm.

When the operating points correctly match the pneumatic clamp structure, the operator can use a defined mechanical opening action instead of manually forcing the clamp open.

A typical sequence becomes:

Closed Clamp → Opener Positioned → Clamp Opened → Profile Loaded → Position Confirmed → Opener Released → Clamp Closed

This can improve the workflow in three ways.

1. More Consistent Opening Position

The dedicated opener gives the operator a defined contact position.

This reduces the need to search manually for the correct place to apply force.

2. Easier Profile Loading

When the opener maintains the clamp in the open condition, the operator can focus more on inserting and positioning the aluminum profile.

The opening task and loading task are no longer combined into one unstable manual action.

3. More Repeatable Racking Cycles

Continuous racking depends heavily on repetition.

When each clamp follows the same opening, loading and release sequence, it becomes easier to maintain a consistent production rhythm.

Without actual production testing, a fixed efficiency improvement percentage should not be claimed.

A more accurate statement is:

The clamp opener supports a more consistent and repeatable aluminum profile racking workflow.

Solution | Why Do 194 mm, 50 mm and 25 mm Matter in Continuous Racking?

Three verified dimensions are currently available for this opener.

194 mm Overall Length

The opener has a confirmed overall length of 194 mm.

This dimension is relevant to handling space and operator access around the rack.

In compact racking systems, tool length should be checked against nearby clamps, profiles and structural components.

50 mm Front Head Height

The front head height is 50 mm.

This helps determine whether the working head can enter the clamp area without interference.

25 mm Center Distance

The dual operating points have a confirmed center distance of 25 mm.

This is one of the most important matching dimensions.

If these points do not correspond correctly with the pneumatic clamp, the operator may need to reposition the tool repeatedly, which directly affects workflow continuity.

For this reason, the 25 mm value is more than a basic specification.

It is a practical matching parameter.

Application | Where Is a Clamp Opener Most Useful?

Aluminum Anodizing Racking

Before anodizing, aluminum profiles must be mounted and held in the racking system.

When multiple pneumatic clamps are used, the opener can assist the operator in opening each clamp for profile loading.

Repetitive Aluminum Extrusion Loading

In high-frequency loading operations, the difference between individual opening actions becomes important.

A dedicated opener supports more consistent repeated movements.

Surface Treatment Lines Using Pneumatic Clamps

Factories already using pneumatic clamps can evaluate a clamp opener when manual opening becomes a bottleneck in the loading stage.

Multi-Clamp Racking Stations

The tool is especially useful where the operator repeatedly follows this pattern:

one clamp → one opening action → one profile → next clamp

This type of workflow benefits from repeatability.

How to Choose | How Should a Clamp Opener Be Selected for Better Racking Continuity?

1. Confirm the Clamp Opening Structure

Check how the pneumatic clamp is mechanically opened and where force must be applied.

2. Verify the 25 mm Center Distance

The current opener has a confirmed 25 mm center distance between its two operating points.

This should be compared with the clamp geometry.

3. Check Required Jaw Clearance

Consider the clamp's resting opening, maximum opening and the actual aluminum profile thickness.

The clamp must open far enough to provide practical loading clearance.

4. Evaluate the 194 mm Overall Length

Confirm that the racking station provides enough space for the opener to be positioned and operated.

5. Check the 50 mm Front Head Height

The front section must enter the working area without interfering with adjacent profiles, racks or other components.

6. Evaluate Workflow, Not Only Dimensions

A technically suitable opener should also support a smooth operating sequence.

If the operator still needs to repeatedly reposition the tool, the matching may not be ideal even if several dimensions appear correct.

FAQ | Clamp Opener and Racking Continuity

Q1: Is the main purpose of the opener simply to make the clamp open faster?

Not only faster.

Its more important role is to make the opening action more consistent and repeatable, which can support smoother racking.

Q2: Does the opener change the clamping force?

No.

The opener assists during the loading stage.

The pneumatic clamp remains responsible for final holding.

Q3: Why does the 25 mm center distance affect workflow continuity?

If the operating points do not correctly match the clamp, the operator may need to adjust the opener position repeatedly.

That interrupts the racking rhythm.

Q4: Is a 194 mm overall length suitable for every workstation?

Not necessarily.

The 194 mm dimension should be checked against the available operating space around the rack.

Q5: When is the benefit of a clamp opener most noticeable?

The benefit is more apparent when many pneumatic clamps need to be opened repeatedly during continuous aluminum profile loading.

Q6: Can we claim a specific efficiency increase?

Only if it is supported by real production testing.

Without measured cycle-time data, the safer and more accurate statement is:

The clamp opener reduces repetitive manual opening actions and supports a more consistent racking workflow.
