Anti-Collision Protection for Aluminum Extrusions

Product Summary

Anti-Collision Protection for Aluminum Extrusions addresses impact marks, edge damage, pressure marks and scratches caused by direct contact between aluminum profiles during stacking, handling, production transfer and transportation. A Silicone / TPU Protective Spacer Strip is positioned between upper and lower aluminum profile layers, creating a physical separation interface and providing flexible cushioning against vibration and small relative movements.

Two covering solutions can be selected according to the operating environment. Silicone-covered spacers are suitable for applications requiring higher temperature resistance, with the current series available for selection according to relevant conditions below 280°C. TPU-covered spacers are suitable for many routine stacking, warehouse, handling and transportation applications. Correct anti-collision protection should consider not only material selection but also extrusion weight, stacking height, support position and spacer arrangement.

Problem｜Why Are Aluminum Extrusions Damaged During Handling?

Not all aluminum surface damage occurs during extrusion or machining.

Many impact defects occur after the profile leaves the extrusion line.

The material may pass through cutting, crane handling, forklift transfer, temporary stacking, surface treatment and final packaging.

When aluminum extrusions are stacked in multiple layers without an effective separation structure, acceleration, braking, turning and vibration can create small relative movements.

These movements produce two common damage mechanisms:

Sliding → Surface Friction → Scratches

and:

Sudden Movement → Profile Collision → Edge or Localized Damage

For standard industrial profiles, such damage may interfere with downstream assembly.

For decorative, anodized, electrophoretic or powder-coated profiles, it may directly affect finished appearance.

The real purchasing question is therefore:

How can aluminum extrusions be separated and protected from collision during stacking, handling and transportation?

Cause｜What Causes Collision Damage?

No stable separation between profile layers

Without a spacer, two aluminum layers remain in direct contact.

When a forklift starts moving, a truck brakes or a crane changes direction, inertia can cause relative movement.

Without a flexible interface, contact occurs directly between aluminum surfaces or edges.

Simply asking operators to “handle more carefully” does not eliminate this structural risk.

Aluminum edges create localized contact

Extrusions are not flat plates.

Industrial aluminum profiles may contain grooves, thin walls, reinforcing sections, hollow chambers and projecting edges.

During collision, contact force can therefore be concentrated over a small area.

The overall extrusion may remain straight while a corner, edge or decorative surface develops a visible impact mark.

Multi-layer stacking increases supporting load

As additional layers are added, upper-layer weight is transferred through the supporting points.

Small rigid blocks can concentrate this load in limited areas.

An elongated Aluminum Extrusion Protective Spacer provides a broader and more continuous supporting interface while maintaining physical separation.

Temperature affects protective materials

When the spacer travels with aluminum through elevated-temperature stages, material selection cannot be based only on softness.

Temperature can influence the dimensions, hardness and elasticity of ordinary polymer protection materials.

Silicone should therefore be evaluated for higher-temperature conditions, while TPU can be considered for normal storage and handling applications.

Solution｜How Does an Anti-Collision Spacer Protect Aluminum?

Create physical separation

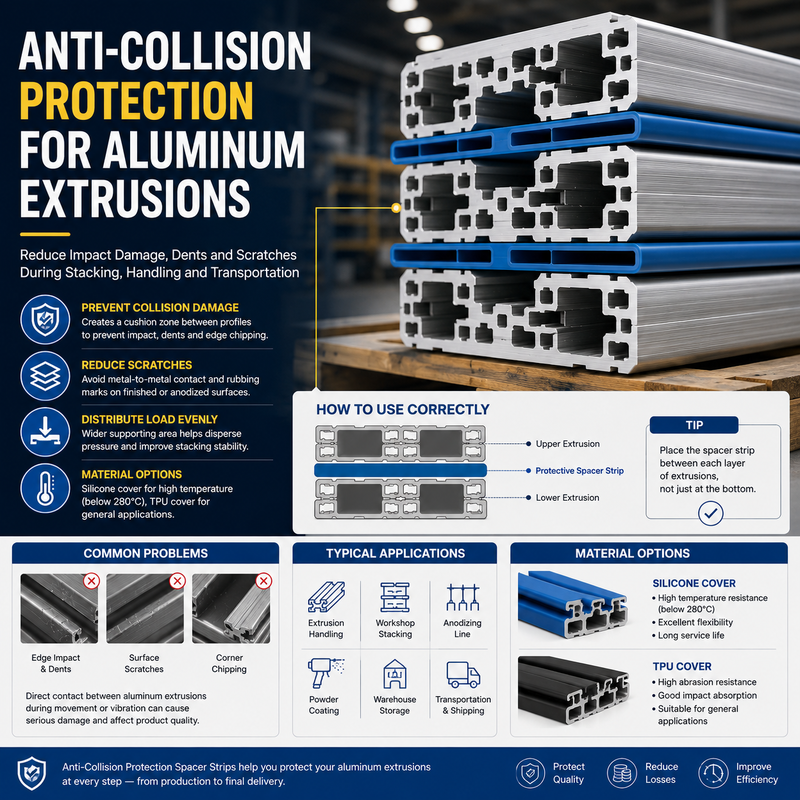

The fundamental protection structure is:

Upper Aluminum Extrusion Layer

↓

Silicone / TPU Protective Spacer Strip

↓

Lower Aluminum Extrusion Layer

This removes direct aluminum-to-aluminum contact.

When minor vibration or movement occurs, the flexible protective interface is contacted first instead of two hard aluminum surfaces colliding directly.

Use continuous elongated protection

An important feature of this product is its long strip structure rather than a collection of small individual pads.

For long aluminum extrusions, this provides a more continuous supporting zone.

Its functional role can be summarized as:

Separation + Cushioning + Support + Friction Reduction

Provide a flexible contact interface

Silicone and TPU coverings create a softer contact surface between the aluminum extrusion and the spacer structure.

This reduces direct hard contact when small movements occur.

The spacer should not be described as an industrial shock absorber capable of absorbing every impact.

A technically accurate description is:

It helps reduce the risk of surface damage caused by direct hard contact and localized collision between aluminum profiles.

Match the covering to the operating environment

TPU can be evaluated for warehouse storage, packaging, routine handling and transportation.

Where elevated temperature resistance is required, Silicone Cover should be considered first.

The current product series can be selected for relevant high-temperature applications below 280°C, subject to actual continuous temperature, peak temperature and exposure duration.

Application｜Where Is Anti-Collision Protection Needed?

Post-extrusion handling

After extrusion, straightening and cutting, profiles move between multiple production stages.

At this stage, protection primarily focuses on mechanical collision, friction and stacking damage.

Multi-layer workshop stacking

Protective spacers should be positioned between each profile layer requiring separation.

This addresses both:

Profile-to-Profile Contact

and

Profile-to-Profile Collision.

After anodizing, electrophoresis or coating

Anti-collision protection becomes even more important after surface finishing.

A relatively small impact can damage the continuity of the decorative surface.

For finished extrusions, anti-collision and anti-scratch protection should therefore be considered together.

Finished-product storage and transportation

Continuous transportation vibration can create small movements inside a profile stack.

Without separation, these movements may gradually produce rubbing marks.

Silicone or TPU Protective Spacer Strips can form part of the layer-to-layer protection system during storage and shipment.

How to Choose｜How to Select an Anti-Collision Spacer

1. Evaluate profile weight

Confirm individual profile weight, quantity per layer and maximum stacking height.

Heavier extrusions generally require greater attention to supporting structure and contact area.

2. Match the material to temperature

For normal warehouse storage, transportation and handling, TPU can be evaluated.

For elevated-temperature processes, consider Silicone Cover and confirm continuous temperature, peak temperature and exposure duration.

3. Identify vulnerable areas

Check whether the extrusion has projecting corners, thin walls, grooves or decorative surfaces.

The spacer should support structurally appropriate areas without creating unnecessary concentrated pressure on sensitive surfaces.

4. Determine support spacing

Long extrusions should not rely on one supporting point.

Spacer quantity and spacing should be selected according to extrusion length, weight, cross-sectional rigidity and stacking arrangement.

5. Distinguish unfinished and finished profiles

Semi-finished profiles mainly require:

Anti-Collision + Support

Finished profiles require:

Anti-Collision + Anti-Scratch + Surface Protection

This distinction is important when specifying the correct protective spacer.

FAQ

Why can carefully stacked aluminum profiles still suffer collision damage?

Initial alignment does not eliminate vibration or inertia during forklift handling, crane movement and transportation. Without layer separation, profiles can still move relative to each other and collide directly.

How is an anti-collision spacer different from ordinary packaging foam?

Industrial spacers must consider repeated handling, profile weight, support position and operating temperature. Their role combines flexible contact with structured layer-to-layer separation.

Why use a long protective spacer instead of small pads?

An elongated spacer provides a more continuous supporting area, reduces localized contact compared with small isolated pads and provides more complete separation for long aluminum extrusions.

Do anodized aluminum profiles still require collision protection?

Yes. Anodized surfaces remain vulnerable to mechanical impact during stacking, handling and packaging. Collision marks can affect the final appearance even after surface treatment has been completed.

Should I choose Silicone or TPU?

Silicone should be evaluated first for applications requiring higher temperature resistance. TPU is suitable for many normal-temperature storage, handling and transportation conditions.

Is a softer spacer always better for collision protection?

No. Softness alone does not determine protection performance. Material properties, profile weight, contact area, support spacing and operating temperature should all be evaluated together.

Conclusion

Effective Anti-Collision Protection for Aluminum Extrusions is not simply about adding a soft material between profiles.

The engineering objective is to establish an appropriate separation, cushioning and supporting interface between aluminum layers that may move relative to each other.

A Silicone / TPU Protective Spacer Strip provides elongated layer-to-layer separation that helps reduce direct hard contact and the risk of damage caused by vibration, sliding and minor collision during production, handling and transportation.

For extrusion plants, anodizing facilities, electrophoresis lines and coating operations, spacer selection should therefore follow:

Profile Weight → Cross-Section → Vulnerable Area → Stacking Method → Operating Temperature → Support Spacing.

This addresses the buyer's actual problem: how to reduce collision damage to aluminum extrusions throughout production, storage and transportation.
