Scratched Vertical Clamps 40.7mm Electrophoresis Coating Anodizing Clamps

Why Do Aluminum Profiles Get Scratched During Anodizing? KRT-FZ03 Anti-Collision Protection Solution

Scratches and impact marks found after aluminum anodizing do not always indicate a problem with the anodizing bath or process parameters. On continuous aluminum finishing lines, profiles move with the rack during conveying, lifting, tank entry, immersion, and removal. Long profiles can swing, causing the effective distance between adjacent workpieces to change continuously.

The patented KRT-FZ03 Anti-Collision Clamp is not designed to replace the main anodizing clamp or electrical contact fixture. Its purpose is to create a physical separation and buffering zone at locations where adjacent aluminum profiles may collide.

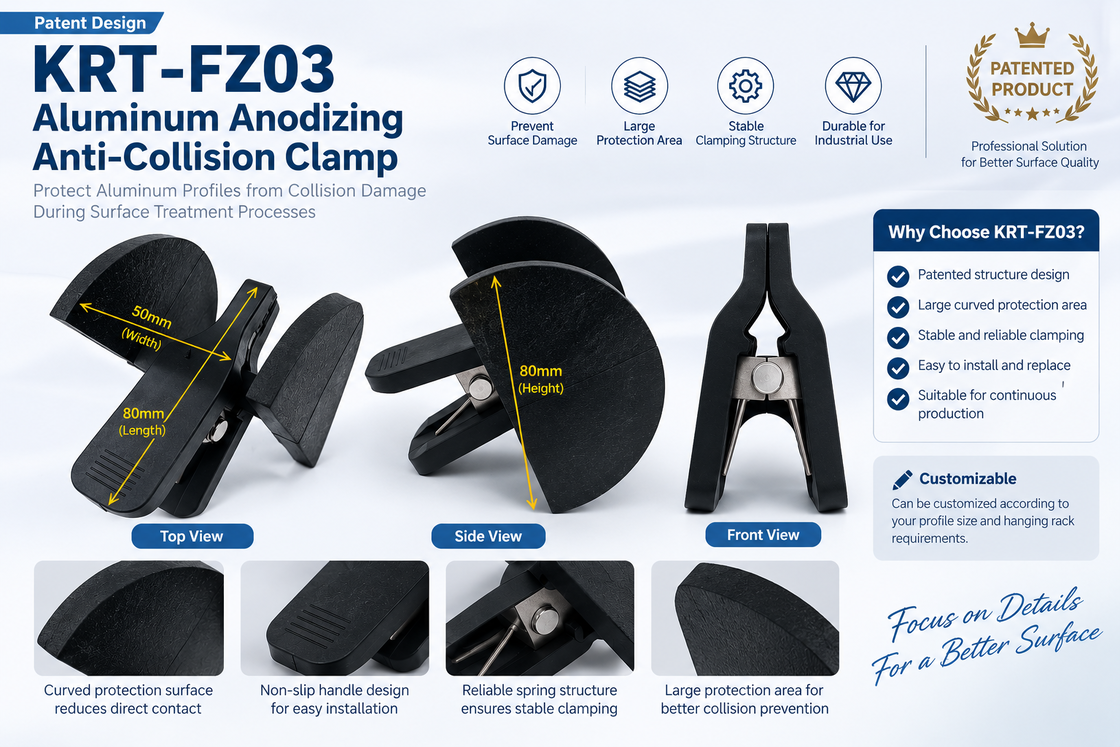

With a 50mm × 80mm curved protection area, KRT-FZ03 functions as an auxiliary surface protection fixture for aluminum anodizing rack systems.

Problem: Why Are Aluminum Profiles Still Scratched After Anodizing?

A common production question is:

“Our anodizing parameters are normal, so why do finished profiles still have scratches or impact marks?”

The answer may be mechanical rather than chemical.

Long aluminum profiles are commonly suspended vertically from racks. Even when the upper section is securely held, the remaining length of the profile can still move during production.

Potential damage includes:

• Edge impact marks
• Surface scratches
• Friction marks
• Contact marks between adjacent profiles
• Appearance inconsistency after finishing

Changing anodizing time, current, or bath chemistry will not solve a defect caused by physical contact between workpieces.

Cause: Why Are Long Aluminum Profiles More Vulnerable to Collision?

1. Secure upper clamping does not eliminate movement along the entire profile

The main rack clamp holds the profile at its designated clamping point.

For long profiles, however, the middle and lower sections can still move laterally.

This means collision analysis should not focus only on whether the main clamp is secure. The actual movement of the complete profile during line operation also needs to be considered.

2. Effective profile spacing changes during production

Static spacing and dynamic spacing are different.

Two profiles may have sufficient clearance when the rack is stationary. During conveying or tank movement, however, simultaneous swinging can reduce the minimum distance between them.

For collision prevention, the important factor is therefore:

dynamic minimum clearance, not only static profile spacing.

3. Small hard-contact points concentrate impact

Direct edge-to-edge contact concentrates mechanical force in a small area.

KRT-FZ03 uses an enlarged curved protection surface so that potential contact can occur against the protective structure rather than directly between finished aluminum surfaces.

Solution: How Does KRT-FZ03 Create a Collision Protection Zone?

KRT-FZ03 combines a mechanical clamping structure with a large curved protection surface.

Its purpose is to establish additional physical separation at locations where profile movement creates collision risk.

What Does the 50mm × 80mm Protection Area Actually Do?

The key question is not simply whether the clamp has a large protection surface.

The correct engineering question is:

Does the 50mm × 80mm protection area cover the actual collision zone created by profile movement?

If the protective surface is positioned outside the real contact zone, increasing clamp quantity alone will not solve the problem.

Why Use a Curved Protection Surface?

The curved structure provides a broader and more continuous physical barrier than a narrow edge or small contact point.

Its role is to intercept potential profile movement and create separation before adjacent aluminum surfaces contact each other directly.

For this reason, KRT-FZ03 can also be understood as an:

Aluminum Profile Separation & Collision Protection Fixture.

Application: Where Should KRT-FZ03 Be Used?

In actual production, multiple KRT-FZ03 clamps can be installed along an aluminum profile rack system and work together with the main production clamps.

The main clamps perform the primary holding and process-related functions, while KRT-FZ03 provides auxiliary collision protection at selected locations.

Aluminum Anodizing Lines

KRT-FZ03 is particularly relevant when:

• Multiple long profiles are processed on the same rack
• Profile spacing is relatively limited
• Noticeable swinging occurs during conveying
• Finished surface appearance is important

Electrophoresis and Other Aluminum Finishing Lines

The same protection concept can be considered wherever suspended profiles experience movement and collision risks.

Selection should therefore be based on the actual profile arrangement, movement, collision zone, and mounting space, rather than the process name alone.

How to Choose the Right Anti-Collision Clamp

Step 1: Identify the actual collision zone

Before deciding clamp quantity, observe the production line.

Determine:

• Where do profiles contact each other?
• Does contact occur in the middle or lower section?
• Does collision occur during conveying or tank movement?
• Is the contact profile-to-profile or profile-to-rack?

The protection fixture should be positioned according to the actual mechanical interference point.

Step 2: Check whether the 50mm × 80mm protection area covers the risk zone

Compare the KRT-FZ03 protection area with:

• Profile cross-section
• Spacing between adjacent profiles
• Actual swinging range

This is more useful than selecting a clamp based only on the product name.

Step 3: Verify mounting space

Check the 40.7mm opening width, 22.7mm clamp-end width, and 8mm clamp-head thickness against the existing rack structure.

The clamp should fit without interfering with adjacent profiles or rack components.

Step 4: Determine protection positions according to profile length

There is no universal rule stating that every profile requires a fixed number of anti-collision clamps.

The correct quantity and position depend on:

profile length, rack structure, profile spacing, and actual movement range.

FAQ

Q1: Why do I need an anti-collision clamp if the aluminum profile is already securely clamped?

Because secure holding at the main clamping point does not necessarily eliminate movement along the full length of a long profile.

KRT-FZ03 provides auxiliary protection against mechanical contact between adjacent profiles.

Q2: Is KRT-FZ03 an electrical contact clamp for anodizing?

No.

KRT-FZ03 is primarily an anti-collision and surface protection fixture. It is designed to work with the main clamping system rather than replace the primary anodizing contact clamp.

Q3: What does the 50mm × 80mm dimension represent?

It represents the key dimensions of the curved protection structure.

The 50mm width extends lateral protection, while the 80mm height increases vertical coverage. These dimensions should be compared with the actual collision area on the production line.

Q4: How many KRT-FZ03 clamps are required for each aluminum profile?

There is no fixed number.

The required quantity depends on profile length, rack design, spacing, and the locations where profiles actually swing or contact each other.

Q5: Can KRT-FZ03 eliminate all anodizing surface defects?

No. It is designed specifically to address mechanical collision-related surface damage.

If defects are caused by bath chemistry, pretreatment, temperature, electrical conditions, or other process factors, those issues must be investigated separately.

Therefore, when scratches appear after anodizing, the first diagnostic question should be:

Is this a chemical process defect or mechanical contact damage?

That distinction determines whether an anti-collision solution such as KRT-FZ03 is relevant.
