How to Reduce Profile Collision on Automatic Aluminum Anodizing Lines? KRT-FZ03 Protection Clamp

Automatic anodizing lines can precisely control conveying, lifting and process cycles, but automation does not mean that suspended aluminum profiles remain completely motionless.

When multiple long profiles are arranged on the same rack, acceleration, deceleration, lifting, tank entry and liquid disturbance can cause lateral movement. As a result, two profiles that appear safely separated when stationary may move closer together during actual production.

The engineering question is therefore not simply:

“How can we clamp the profile tighter?”

A more useful question is:

“How can we prevent adjacent profiles from contacting each other without changing the function of the main anodizing clamp?”

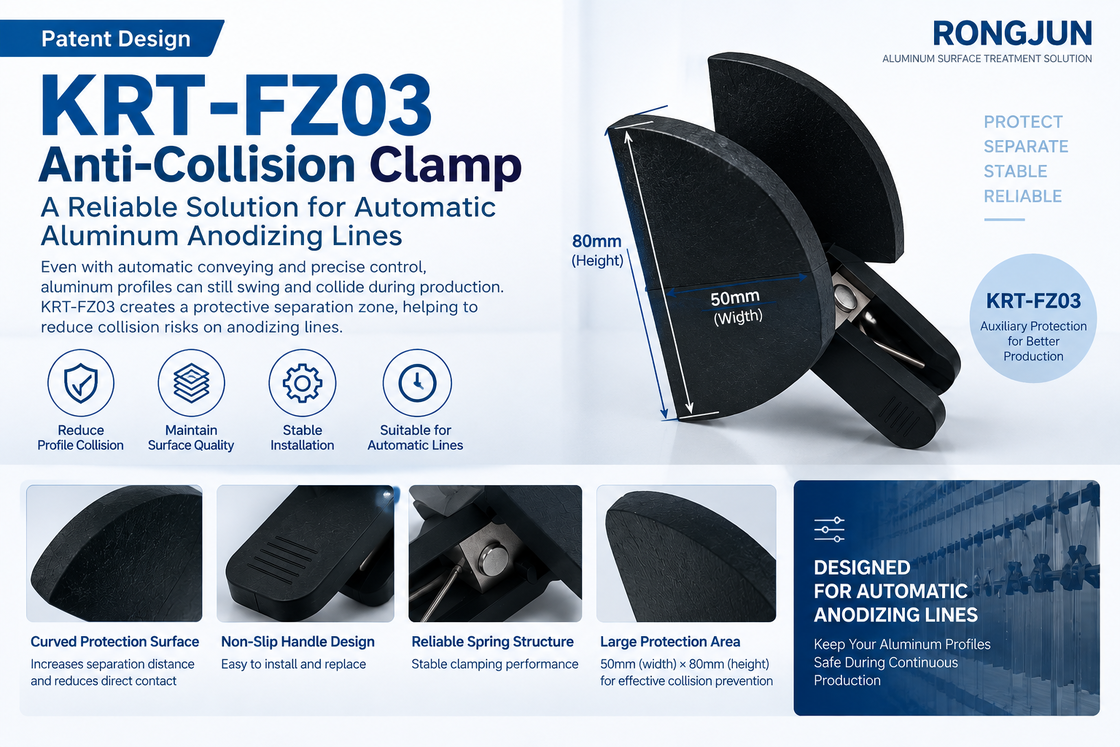

The patented KRT-FZ03 Anti-Collision Clamp addresses this problem by creating an auxiliary physical separation zone at potential collision locations. Its 50mm × 80mm curved protection area works independently from the primary holding function of the main clamp.

Problem: Why Do Profiles Still Collide on an Automatic Anodizing Line?

Automation controls machine movement and process timing. It does not completely eliminate the mechanical movement of suspended workpieces.

Typical conditions include:

• The upper end is securely clamped while the lower section still swings
• Profiles move because of conveyor acceleration and deceleration
• Effective spacing changes during rack lifting
• Profiles move during tank entry and removal
• Closely arranged profiles have limited dynamic clearance

A rack may therefore appear completely safe during a stationary inspection but still experience profile-to-profile contact during operation.

This is why checking clamping force alone is not enough to evaluate collision risk.

Cause: What Creates Collision on Automated Lines?

1. The main clamp controls a fixing point, not the entire profile

The primary anodizing clamp provides restraint at a specific position.

For long aluminum profiles, the middle and lower sections may still move laterally.

Therefore:

Clamping Stability ≠ Full-Length Motion Control

This distinction explains why a primary clamp and an anti-collision fixture perform different functions.

2. Acceleration and deceleration create inertia

During:

Start → Convey → Decelerate → Stop

the suspended profile does not necessarily stop moving at exactly the same moment as the rack.

Temporary inertial movement may occur.

As a result:

Static Clearance > Dynamic Minimum Clearance

The spacing measured while the line is stopped may therefore be greater than the minimum clearance experienced during production.

3. Long profiles amplify displacement away from the fixing point

Even a relatively small angular movement near the upper section can produce more noticeable lateral displacement farther away from the fixing point.

Collision analysis should therefore include:

• Middle profile sections
• Lower profile sections
• Closest points between adjacent profiles

rather than focusing only on the rack head.

4. Tank movement changes the operating condition

Once profiles enter a treatment tank, they are surrounded by liquid.

Rack lifting and liquid movement may introduce additional disturbance.

A rack configuration that is stable outside the tank may therefore behave differently during actual processing.

Solution: KRT-FZ03 Creates Separation Instead of Simply Increasing Clamping Force

Increasing the force of the primary clamp does not necessarily solve a collision occurring far from the main fixing point.

KRT-FZ03 uses a different engineering approach:

Main Clamp: Holding and Process Function

KRT-FZ03: Separation and Collision Protection

This separates the two functions instead of expecting one clamp to solve both problems.

What Does the 50mm × 80mm Curved Protection Area Do?

The 50mm × 80mm dimension is not a recommended profile size or profile spacing.

It describes the protection structure itself.

The correct selection question is whether this protection area covers the actual movement and collision zone of the profiles.

Why Use a Large Curved Protection Surface?

A narrow stop only protects a limited contact point. If profile movement changes, the workpiece may move outside that small protection area.

The larger curved surface of KRT-FZ03 creates a broader physical separation zone.

Its purpose is to establish protection before two finished aluminum surfaces contact each other directly.

A more precise functional description is therefore:

Auxiliary Profile Separation and Anti-Collision Fixture for Aluminum Finishing Lines

Application: How Is KRT-FZ03 Used on Automatic Lines?

KRT-FZ03 can be configured as multiple auxiliary protection points on an aluminum profile rack system.

It works together with the primary clamps rather than replacing them.

Closely Arranged Long Profiles

When multiple long profiles are processed on one rack, observe the actual clearance between adjacent workpieces during operation.

Protection should be positioned where profiles are most likely to approach each other.

Conveyor Start and Stop Positions

If contact occurs mainly during acceleration, deceleration or stopping, inertia may be the main cause.

In this case, protection positions should be determined according to the maximum movement zone.

Rack Lifting and Tank Entry

If profiles remain stable during normal conveying but collide during lifting or tank entry, dynamic clearance during vertical movement should be examined.

Protection should then be positioned according to the actual tank-entry movement rather than the stationary rack position.

How to Choose KRT-FZ03 for an Automatic Anodizing Line

Step 1: Observe the complete production cycle

Do not evaluate the rack only while the line is stopped.

Observe:

Loading → Conveying → Lifting → Tank Entry → Tank Exit → Conveying

Identify exactly when and where adjacent profiles move closest together.

Step 2: Separate holding problems from swinging problems

If the profile moves at the primary clamping point, the main clamping system should be checked first.

If the primary clamp remains stable but the middle or lower section collides, an auxiliary anti-collision fixture becomes more relevant.

KRT-FZ03 should not be used to compensate for a failed primary clamp.

Step 3: Match the protection area with the collision path

Compare the 50mm × 80mm protection area with:

• Profile cross-section
• Adjacent profile spacing
• Maximum swing range
• Collision height

This provides a more meaningful selection method than choosing only by product dimensions.

Step 4: Check installation compatibility

The 40.7mm opening width, 22.7mm clamp-end width and 8mm clamp-head thickness should be checked against the existing rack structure.

Installation should not interfere with the main clamp, adjacent profiles, rack movement or other components.

Step 5: Determine quantity according to actual risk points

There is no universal fixed quantity.

The correct configuration depends on:

Profile Length + Rack Spacing + Swing Range + Collision Position

The objective is to protect actual collision zones rather than simply install more clamps.

FAQ

Q1: Why is an anti-collision clamp needed if an automatic anodizing line already controls conveyor speed?

Speed control can reduce unnecessary movement, but it cannot completely eliminate profile inertia, long-profile swinging or disturbance during tank movement.

If dynamic clearance becomes too small, collision may still occur.

Q2: Can KRT-FZ03 replace the main anodizing clamp?

No.

KRT-FZ03 is designed for auxiliary separation and collision protection. The primary anodizing clamp performs the main holding and process-related functions.

Q3: Does 40.7mm represent the recommended spacing between aluminum profiles?

No.

40.7mm is the measured opening width shown in the product information. It should not be interpreted as recommended profile spacing.

Q4: Should the clamp be installed at the top, middle or bottom of the profile?

There is no universal position.

Installation should correspond to the actual mechanical contact zone identified during production.

Q5: How many KRT-FZ03 clamps are required?

There is no fixed quantity per profile.

The number should be determined according to profile length, rack spacing, rack structure and actual movement zones.

Q6: What problems cannot be solved by KRT-FZ03?

KRT-FZ03 is not intended to correct problems caused by a loose primary clamp, deformed rack, incorrect profile arrangement, chemical process parameters or equipment faults.

Its specific role is to address mechanical collision risk created by profile movement during aluminum finishing production.
