How to Choose an Anti-Collision Clamp for Aluminum Anodizing Racks? KRT-FZ03 Size & Installation Guide

Selecting an anti-collision clamp for an aluminum anodizing line is not simply a matter of choosing the largest protection fixture or checking whether the clamp can physically be attached to the rack.

A suitable solution must satisfy three conditions at the same time:

Mounting compatibility, protection coverage, and dynamic clearance.

The patented KRT-FZ03 Anti-Collision Clamp features a 50mm × 80mm curved protection structure designed to create an auxiliary separation zone between aluminum profiles. Correct selection therefore requires its dimensions to be evaluated together with rack geometry, profile spacing, swing range, and the actual collision location.

Problem: Why Can a Clamp Fit the Rack but Still Fail to Solve the Collision Problem?

A common selection mistake is assuming:

“If the anti-collision clamp can be installed, it is compatible.”

Physical installation alone does not guarantee effective collision protection.

A clamp may fit the rack while still creating problems such as:

• The protection surface does not cover the actual collision zone
• The protection position is too far from the contact point
• Profile movement extends beyond the protected area
• The clamp interferes with adjacent profiles
• The added fixture changes the original rack clearance

Correct selection therefore requires:

Mounting Compatibility + Protection Coverage + Dynamic Clearance

rather than a single dimensional comparison.

Cause: Why Are Product Dimensions Alone Not Enough?

1. Mounting dimensions and protection dimensions serve different purposes

KRT-FZ03 contains both installation-related dimensions and protection-related dimensions.

The 40.7mm dimension should not automatically be interpreted as a 40.7mm profile capacity, and the 50mm protection width should not be interpreted as a recommended profile spacing.

These are structural dimensions of KRT-FZ03 itself.

2. Static clearance is different from operating clearance

When the line is stopped, two profiles may have sufficient clearance.

This only confirms:

Static Clearance > 0

What matters during production is:

Dynamic Minimum Clearance

Profiles may move closer during conveying, lifting, tank entry, or stopping.

Therefore, measurements taken only while the rack is stationary cannot fully determine anti-collision requirements.

3. Profile length changes the collision zone

Movement is not necessarily identical along the full length of a suspended aluminum profile.

The upper section is more constrained by the main rack clamp, while sections farther from the fixing point may experience greater lateral movement.

The correct question is therefore:

“Where does the profile actually collide?”

not:

“Where is it easiest to install the clamp?”

Solution: Use a Three-Step Matching Method for KRT-FZ03

A practical KRT-FZ03 selection process can be divided into three engineering checks.

Step 1: Mounting Match

First determine whether the clamp can be correctly installed at the required position.

Check:

• Rack geometry
• Available installation space
• Adjacent fixture positions
• Profile clearance
• Space required for clamp operation

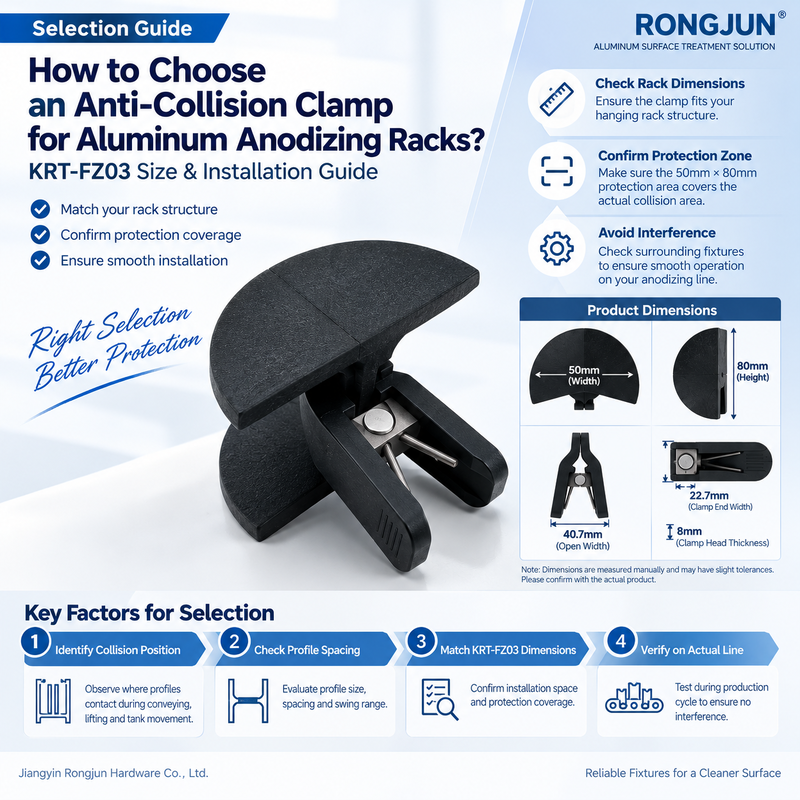

KRT-FZ03 dimensions such as the 40.7mm opening width, 22.7mm clamp-end width, 8mm clamp-head thickness, and 15mm × 20mm local connection area can be used for preliminary compatibility checks.

These dimensions are useful because they help identify possible interference before installation.

Step 2: Protection Match

Once mounting compatibility is confirmed, determine whether the protection surface actually covers the collision zone.

KRT-FZ03 provides a:

50mm wide × 80mm high curved protection structure.

Compare this protection area with:

• Aluminum profile cross-section
• Spacing between adjacent profiles
• Swing direction
• Collision height
• Actual contact area

A clamp that is securely mounted but positioned outside the real collision path cannot provide the intended protection.

Step 3: Dynamic Match

The final check must be performed while the production line is moving.

Observe the complete cycle:

Start → Convey → Decelerate → Lift → Tank Entry → Tank Exit → Stop

Verify that:

1. The KRT-FZ03 remains securely positioned.
2. Moving profiles enter the protected zone before contacting adjacent profiles.
3. The clamp does not create new interference with racks, profiles, or surrounding components.

This is the difference between dimensional fit and functional fit.

Why Is the 50mm × 80mm Protection Area Important?

For KRT-FZ03 selection, the protection area is more meaningful than simply quoting the overall clamp size.

The 50mm width determines lateral protection coverage, while the 80mm height determines vertical coverage.

These dimensions answer:

“What area can the fixture physically protect?”

They do not answer:

“What size aluminum profile can it clamp?”

Keeping these two concepts separate prevents incorrect specification interpretation.

Application: How Should KRT-FZ03 Be Evaluated for Different Rack Configurations?

Multiple Long Profiles on One Rack

When multiple long profiles are suspended closely together, identify the maximum swing zone before determining the anti-collision clamp position.

Focus on:

Profile Spacing + Swing Range + Protection Position

Racks with Limited Installation Space

For compact rack systems, the protection surface is not the only consideration.

The 40.7mm opening width, 22.7mm clamp-end width, and 8mm head thickness should also be checked to avoid creating new mechanical interference.

Different Profile Sizes on the Same Line

An anodizing line may process different profile sections and lengths.

When profile geometry changes significantly, the original anti-collision position should not automatically be assumed to remain suitable.

A different profile length or arrangement may create a different collision zone.

How to Choose: What Information Should Be Provided Before Selection?

For a more accurate KRT-FZ03 compatibility assessment, buyers should ideally provide:

1. Aluminum profile cross-section or drawing
2. Actual profile length
3. Normal spacing between adjacent profiles
4. Rack mounting dimensions
5. Photo of the intended installation position
6. Location where collision currently occurs
7. Photo or short video of the line during operation

The last two items are particularly useful.

Profile dimensions can help determine basic geometric compatibility, while operating images or videos help identify the actual dynamic collision zone.

A Practical KRT-FZ03 Selection Logic

Use the following sequence:

Can it be mounted?

↓

Does the 50mm × 80mm protection area cover the collision zone?

↓

Does it remain clear of surrounding components during movement?

↓

Does it intercept profile movement before direct contact occurs?

This provides a more practical engineering selection method than choosing an anti-collision clamp by product dimensions alone.

FAQ

Q1: Is 40.7mm the maximum aluminum profile size that KRT-FZ03 can clamp?

Not necessarily.

The available product image identifies 40.7mm as an opening dimension of the clamp structure. It should not automatically be treated as the maximum profile clamping capacity.

Compatibility should be evaluated according to the actual mounting structure.

Q2: Does 50mm × 80mm represent the recommended aluminum profile size?

No.

It represents the dimensions of the curved protection area, not the recommended profile cross-section.

Its purpose is to help evaluate whether the protection surface covers the potential collision zone.

Q3: How can I determine whether KRT-FZ03 fits my existing anodizing rack?

Check three factors:

Mounting space, protection coverage, and dynamic operating clearance.

Static rack dimensions can support preliminary evaluation, while an operating video provides better information about actual collision points.

Q4: Should KRT-FZ03 always be installed next to the main anodizing clamp?

No.

The anti-collision clamp should be positioned according to the actual collision risk zone.

The main anodizing clamp and KRT-FZ03 perform different functions.

Q5: Is a larger protection surface always better?

No.

The protection area should cover the collision risk while maintaining sufficient clearance for profiles, racks, and other fixtures.

The correct selection requires a balance between Protection Coverage and Installation Clearance.

Q6: Can the same mounting position be used for aluminum profiles of different lengths?

It should not be assumed.

Changing profile length can change the swing range and collision location. The protection position should be checked again when significantly different profiles are introduced.

Q7: What information is most useful before ordering KRT-FZ03?

Instead of only requesting an “anti-collision clamp,” provide:

Profile dimensions + rack dimensions + profile spacing + mounting-position photos + operating video.

This information makes it possible to evaluate whether KRT-FZ03 matches the actual anodizing line rather than only the static rack dimensions.
