How to Prevent Scratches When Stacking Aluminum Profiles

Product Summary

Scratches on stacked aluminum profiles are often caused not by the finishing process itself, but by direct aluminum-to-aluminum contact combined with small movements during handling and transportation. Long extrusions, multi-layer stacks and finished anodized or coated profiles are particularly vulnerable because even minor vibration can create surface friction.

A Silicone or TPU Protective Spacer Strip is positioned directly between upper and lower aluminum profile layers to create a continuous non-metallic separation interface. The elongated strip reduces direct rubbing while also providing cushioning and more stable load distribution. Silicone-covered versions can be evaluated for higher-temperature applications, while TPU-covered versions are suitable for many normal-temperature storage, handling and transportation conditions.

Problem｜Why Do Aluminum Profiles Get Scratched During Stacking?

Aluminum extrusion plants normally store profiles in multiple rows and layers.

Without a protective separation material, the upper profile layer rests directly on the layer below.

Under completely static conditions, visible scratches may not appear immediately. The real problem begins when the stack moves.

Typical sources of movement include:

• Forklift acceleration and braking;
• Crane handling;
• Manual profile adjustment;
• Truck vibration;
• Production-line transfer.

Even very small horizontal movements can create repeated friction between two aluminum surfaces.

For anodized, electrophoretic or powder-coated profiles, this is especially problematic because the decorative surface has already been completed.

The customer's real question is therefore:

How can stacked aluminum profiles be prevented from rubbing against each other during handling and transportation?

Cause｜What Causes Surface Scratches?

Direct metal-to-metal friction

When aluminum profiles contact each other directly, the weight of the upper layer creates continuous contact pressure.

Once horizontal movement occurs, friction develops at the interface.

The heavier the profile and the higher the stack, the more important separation becomes.

Concentrated supporting points

Some plants use several small foam pads, blocks or temporary spacers.

These may separate the profiles, but small contact areas can concentrate the load at limited points.

For long aluminum extrusions, widely spaced small blocks may also create unsupported sections.

An elongated Aluminum Profile Protective Spacer Strip provides a more continuous support surface.

Incorrect material selection

Scratch prevention is not only a structural issue.

If a spacer is exposed to elevated processing temperatures, ordinary plastic protection materials may soften or change shape.

For these conditions, a High Temperature Silicone Pad Strip should be evaluated.

For normal storage, warehouse handling and transportation, a TPU Protective Spacer Strip may be more appropriate.

Finished profiles remain vulnerable

Many surface defects occur after the main production process.

Particularly vulnerable stages include:

• After anodizing;
• After electrophoresis;
• After coating;
• Before final packaging.

At these stages, the profile requires secondary surface protection.

Solution｜How Can Scratches Be Reduced?

The most effective approach is to create a stable, continuous and process-compatible separation system between profile layers.

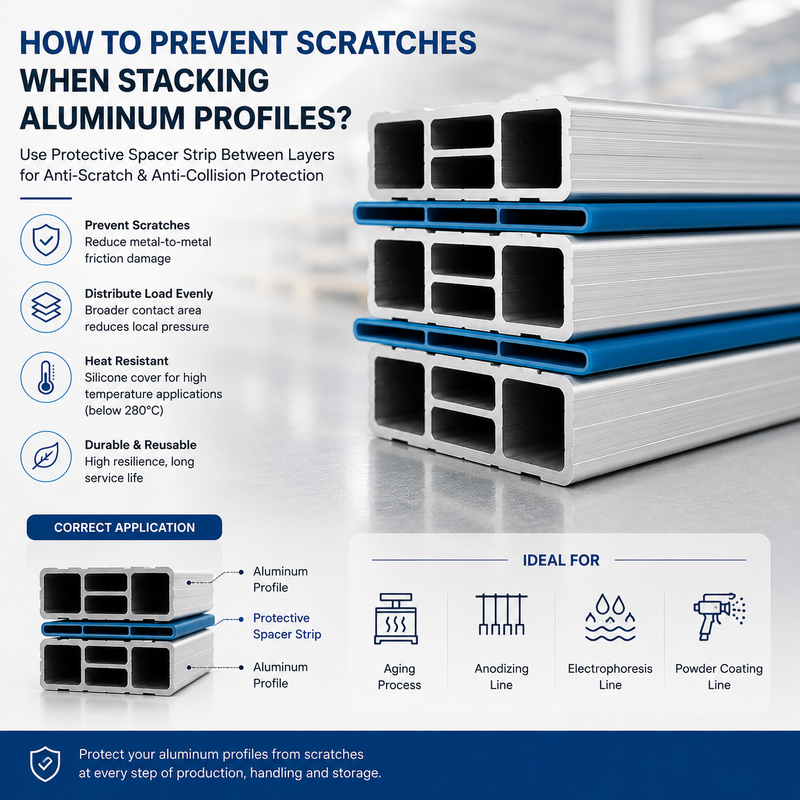

Install protective spacers between every required layer

The correct arrangement is:

Upper Aluminum Profile Layer

Silicone / TPU Protective Spacer Strip

Lower Aluminum Profile Layer

The spacer should sit between the profiles rather than only underneath the entire stack.

This directly eliminates aluminum-to-aluminum contact.

Use an elongated separation structure

Compared with several small pads, a long spacer creates a more continuous supporting area.

This helps:

• Increase the effective contact area;
• Reduce localized load concentration;
• Maintain consistent separation;
• Reduce direct friction during movement.

Match the material to the temperature

For applications requiring higher temperature resistance, a silicone-covered spacer can be selected.

The current high-temperature series can be evaluated for relevant working conditions below 280°C, while final selection should still consider continuous temperature, peak temperature and exposure duration.

For ordinary warehouse stacking and transportation, TPU-covered solutions can also be considered.

Match protection to the surface condition

Semi-finished extrusions mainly require:

Anti-Collision + Separation

Finished anodized, electrophoretic or coated profiles require:

Anti-Scratch + Finished Surface Protection

The same type of spacer therefore serves different quality objectives at different production stages.

Application｜Where Is This Protection Used?

Post-extrusion stacking

After extrusion, straightening and cutting, profiles often need temporary storage or transfer.

A protective spacer between layers reduces friction during subsequent movement.

Before and after aging

If the spacer enters a higher-temperature production stage with the aluminum profiles, the covering material should be selected according to the actual operating temperature.

Silicone-covered solutions are therefore particularly relevant to applications requiring higher heat resistance.

After anodizing

After anodizing, color and decorative appearance have already been established.

At this stage, the spacer protects the finished surface from secondary scratches before packaging.

Electrophoresis and coating

Electrophoretic and coated profiles can also benefit from flexible separation when stacked before final shipment.

Warehouse storage and transportation

Where elevated temperature resistance is not required, TPU-covered spacer strips can be selected according to flexibility, wear resistance and repeated-use requirements.

How to Choose｜How Should an Anti-Scratch Spacer Be Selected?

1. Identify the surface condition

For unfinished extrusions, impact protection and stable support may be the main priorities.

For anodized, electrophoretic or coated products, the contact surface should be selected with finished-surface protection in mind.

2. Confirm profile weight and stacking height

The upper stack load is transferred through the protective spacer.

Buyers should therefore provide:

• Individual profile weight;
• Profiles per layer;
• Maximum number of layers;
• Profile length.

3. Confirm operating temperature

For warehouse handling and normal-temperature transportation, TPU can be evaluated.

For higher-temperature production environments, High Temperature Silicone Pad Strip should be considered first.

4. Match the actual support area

Spacer width should correspond to the profile geometry and intended supporting position.

A wider spacer is not automatically better; stable load transfer and correct surface contact are more important.

5. Consider support spacing for long extrusions

Long aluminum profiles normally require more than one supporting position.

The number and spacing of spacers should be selected according to profile length, weight, cross-sectional rigidity and stacking arrangement.

FAQ

Why do aluminum profiles get scratched when stacked?

Scratches are mainly caused by direct contact combined with relative movement. Forklift handling, crane movement, manual adjustment and transportation vibration can all generate friction between aluminum surfaces.

Can spacer strips really reduce profile scratches?

Yes. They create a non-metallic separation layer that reduces direct rubbing. Performance also depends on correct positioning, supporting distance, profile weight and the selected covering material.

Which is better for scratch protection, silicone or TPU?

Both can provide separation. Silicone is generally more suitable where higher temperature resistance is required, while TPU works well for many normal-temperature stacking, storage and transportation applications.

Do anodized aluminum profiles still need protective spacers?

Yes. Anodized surfaces can still be scratched during stacking and packaging. A protective spacer helps reduce direct contact between finished decorative surfaces.

Should the spacer be placed under the entire stack or between layers?

Its main function is to separate upper and lower aluminum profile layers. Placing a strip only underneath the complete stack does not prevent layer-to-layer rubbing.

Can anti-scratch spacers be customized?

Yes. Spacer structure and material can be selected according to profile cross-section, weight, length, support position, working temperature and surface-finish condition.

Conclusion

Preventing scratches during aluminum profile stacking is not simply a matter of handling the profiles more carefully.

The more reliable approach is to remove the conditions that allow direct surface friction to occur.

A Silicone / TPU Protective Spacer Strip creates a continuous flexible interface between stacked aluminum layers, helping address direct contact, localized loading and movement-related friction.

For aluminum extrusion, anodizing, electrophoresis and coating plants, selection should be based on profile weight, stacking height, surface condition, working temperature and supporting configuration.

This makes the product highly relevant to buyers searching for a practical solution to:

“How to Prevent Scratches When Stacking Aluminum Profiles?”
