Vertical Anodizing Clamp for Aluminum Profile | 231mm & 327mm Custom Anodizing Fixture

Product Overview

Vertical Anodizing Clamp for Aluminum Profile | 231mm & 327mm Custom Anodizing Fixture

The Vertical Anodizing Clamp is a specialized fixture designed for aluminum profile vertical anodizing lines. It is used for profile clamping, electrical contact connection, and vertical positioning during anodizing surface treatment.

In continuous anodizing production, the clamp is not only responsible for hanging and holding aluminum profiles but also plays an important role in maintaining stable electrical contact and positioning accuracy during the process.

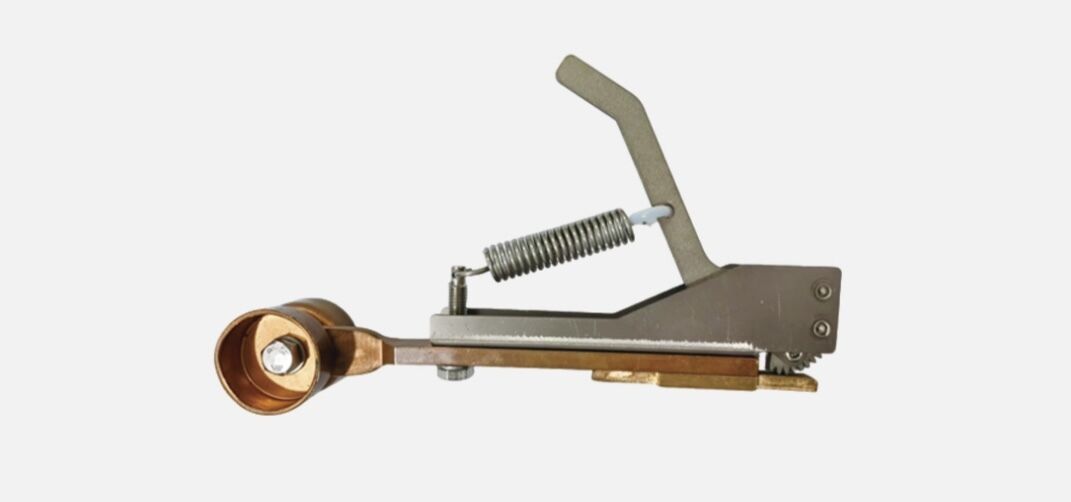

Rongjun Hardware provides KRT series vertical anodizing clamps with different structural sizes for various aluminum extrusion applications. The KRT-001 features a compact 231mm overall length with an 11mm maximum jaw opening, while the KRT-003 adopts a longer 327mm structure, a 45mm handle height, and an 8mm maximum jaw opening to meet different installation and operation requirements.

Problem

Common Challenges in Vertical Anodizing Production

During aluminum profile vertical anodizing processes, clamps operate under continuous loading cycles, acidic and alkaline chemical environments, and electrical current transmission conditions.

Common challenges include:

1. Unstable Profile Clamping

If the clamp opening size does not match the aluminum profile dimension, the profile position may shift during anodizing operations.

2. Limited Compatibility with Different Line Designs

Different anodizing lines have different hanging structures and operating spaces. A fixed clamp size may not fit all production layouts.

3. Inconsistent Electrical Contact

The anodizing clamp works as a conductive connection point. Insufficient contact area or unstable clamping force may affect current transmission during anodizing.

Cause

Why Does Vertical Anodizing Clamp Design Matter?

A professional anodizing clamp must balance mechanical holding performance and electrical connection requirements.

1. Jaw Opening Determines Profile Compatibility

The jaw opening is one of the key selection factors.

The KRT-001 provides an 11mm maximum jaw opening for different aluminum profile sizes.

The KRT-003 provides an 8mm maximum jaw opening with a 0mm static jaw opening design for stable closed positioning.

2. Clamp Length Affects Installation Matching

Different anodizing lines require different fixture dimensions.

The KRT-001 with 231mm length is suitable for compact installation environments.

The KRT-003 with 327mm length provides an extended structure for applications requiring longer positioning distance.

3. Operating Structure Influences Handling Efficiency

The KRT-003 features a 45mm handle height design, providing a clear operating position for manual opening and closing.

Solution

KRT Series Vertical Anodizing Clamp Solution

The KRT series provides a structured solution for aluminum profile clamping, positioning, and electrical connection requirements in vertical anodizing lines.

1. Multiple Sizes for Different Applications

2. Precision Mechanical Clamping Structure

The mechanical lever structure controls clamp opening and closing, helping maintain consistent profile positioning.

The KRT-001 provides an 11mm maximum opening for wider profile compatibility.

The KRT-003 provides an 8mm maximum opening with 0mm static opening design for closed clamp stability.

3. Custom Manufacturing Capability

Different aluminum extrusion factories have different production line layouts and profile specifications.

Custom options include:

• Clamp length adjustment
• Jaw opening optimization
• Handle structure modification
• Installation adaptation

Application

Main Application Fields

Aluminum Profile Anodizing Lines

Used for continuous anodizing treatment of architectural and industrial aluminum profiles.

Aluminum Extrusion Processing Plants

Suitable for extrusion manufacturers requiring reliable profile hanging and electrical connection during surface treatment.

Industrial Surface Treatment Lines

Applied in vertical anodizing, electrolytic coloring, and related aluminum finishing processes.

How to Choose

When selecting a vertical anodizing clamp, consider:

1. Profile Size

Choose jaw opening according to aluminum profile thickness and cross-section.

2. Production Line Space

Compact lines:

Choose 231mm structure.

Longer positioning requirements:

Choose 327mm structure.

3. Operation Method

Manual production:

Focus on handle design and operation space.

Automatic production:

Focus on installation dimensions and fixture consistency.

FAQ

Q1: What is a Vertical Anodizing Clamp used for?

A Vertical Anodizing Clamp is used for holding aluminum profiles, maintaining positioning, and providing electrical connection during vertical anodizing processes.

Q2: What is the difference between KRT-001 and KRT-003?

The KRT-001 has a 231mm overall length and 11mm maximum jaw opening.

The KRT-003 has a 327mm overall length, 45mm handle height, and 8mm maximum jaw opening.

Q3: How do I select the correct anodizing clamp?

Selection should consider:

1. Aluminum profile dimensions
2. Vertical anodizing line structure
3. Manual or automated operation requirements

Q4: Can Vertical Anodizing Clamps be customized?

Yes.

Customization options include:

• Length
• Jaw opening size
• Handle structure
• Installation design

Q5: Why is jaw opening important?

Jaw opening determines compatibility between the clamp and aluminum profile.

For example:

KRT-001: Maximum jaw opening 11mm

KRT-003: Maximum jaw opening 8mm

These specifications help customers select suitable clamps according to their actual production requirements.
