Product Overview

In industrial manufacturing, stable workpiece positioning is a key factor affecting machining quality, welding accuracy, and assembly efficiency. During drilling, cutting, welding, or fixture assembly processes, even slight movement of the workpiece may lead to repeated adjustments, reduced processing consistency, and additional operation time.

The Heavy Duty C Clamp is designed as a manual mechanical workholding solution for industrial fixing applications. Featuring a traditional C-frame open structure and manual screw adjustment system, this clamp provides controlled mechanical holding without requiring pneumatic or electrical power.

With a maximum jaw opening of 51mm, the clamp can accommodate different workpiece thicknesses and provide flexible adjustment for various manufacturing environments. The screw-driven mechanism allows operators to gradually control the clamping position according to actual application requirements, making it suitable for metal fabrication, welding positioning, assembly assistance, and maintenance operations.

Problem | Workpiece Movement During Industrial Processing

In metal fabrication and assembly environments, one of the common challenges is maintaining stable workpiece positioning throughout the operation process.

Typical problems include:

• Workpieces shifting during drilling, cutting, or welding
• Difficulty maintaining alignment during assembly
• Frequent repositioning when using fixed-size clamps
• Lack of flexibility when handling different material thicknesses

For workshops with multiple product sizes or small-batch production requirements, a fixed clamping solution may not provide enough adaptability. Operators often need a clamp that can be adjusted quickly while maintaining reliable mechanical contact with the workpiece.

A suitable workholding clamp should not only provide holding force but also allow precise adjustment according to different working conditions.

Cause | Why Does Unstable Clamping Happen?

1. Incorrect Clamp Size Selection

One major reason for unstable fixing is selecting a clamp with insufficient opening capacity.

When the clamp opening does not match the workpiece thickness, users may experience:

• Limited application range
• Reduced adjustment space
• Increased need for different clamp sizes

The Heavy Duty C Clamp provides a 51mm maximum jaw opening, allowing users to select a more flexible solution for different workpiece dimensions.

2. Lack of Adjustable Clamping Control

Different materials and applications require different levels of tightening pressure.

A clamp that cannot be adjusted gradually may cause:

• Excessive pressure on sensitive surfaces
• Insufficient holding force during machining
• Difficulty achieving stable positioning

The threaded screw mechanism solves this issue by allowing continuous manual adjustment rather than fixed-position clamping.

3. Limited Accessibility During Operation

In real production environments, operators frequently need to install, remove, and reposition clamps.

A complex clamp structure may slow down operation efficiency.

The open C-frame design provides easier access for placing workpieces and adjusting the clamping position, especially in welding, repair, and assembly applications.

Solution | How Heavy Duty C Clamp Improves Workholding Performance

1. 51mm Maximum Jaw Opening for Flexible Applications

The clamp features a maximum jaw opening of 51mm, providing a wider adjustment range for different workpiece thicknesses.

This specification allows the clamp to be used for:

• Metal plate fixing
• Fabricated component positioning
• Welding preparation
• Assembly support

By selecting a clamp according to actual workpiece dimensions, users can improve fixture compatibility and reduce unnecessary replacement between different clamp sizes.

2. Manual Screw Adjustment for Controlled Clamping

The screw adjustment system provides continuous mechanical adjustment.

Operators can control:

• Clamping distance
• Contact position
• Tightening process

This structure is especially suitable for applications where operators need direct control over fixing conditions.

Compared with automatic systems, manual screw clamps offer a simple and reliable solution without additional air supply or electrical connections.

3. C-Frame Open Structure for Easy Workpiece Positioning

The C-frame structure provides an open working area, allowing operators to position workpieces from the side.

This design is beneficial for:

• Quick installation
• Flexible positioning
• Temporary fixing operations

It is widely suitable for workshops where workpiece sizes and production requirements frequently change.

Technical Specifications

Specification Source:

• Maximum Jaw Opening: 51mm (User-provided product specification)

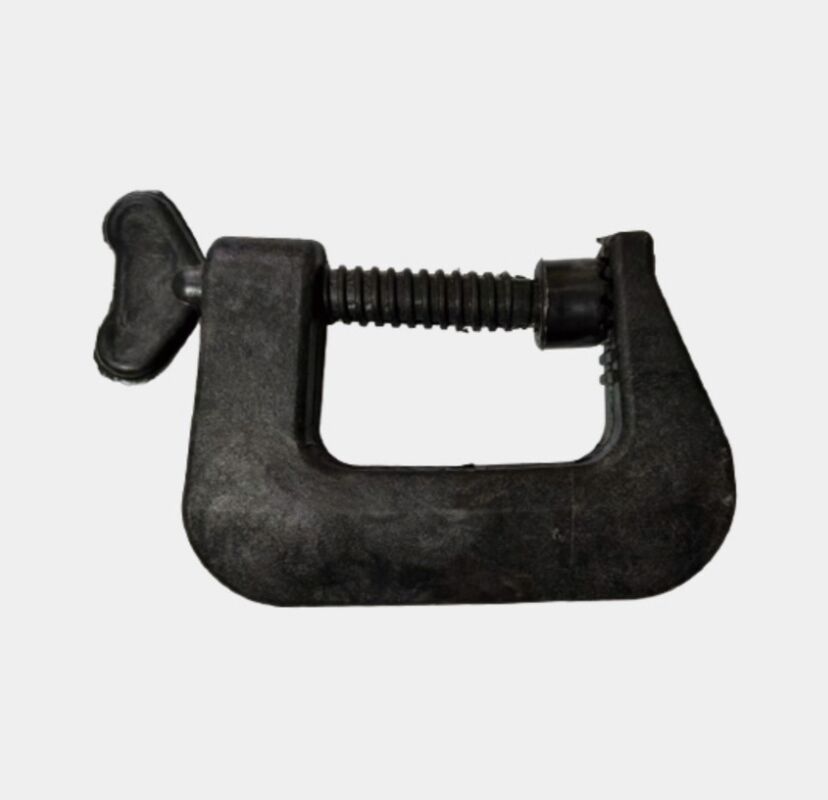

• Structure and operation method: Product image reference

Application | Industrial Usage

Metal Fabrication

During metal fabrication processes, workpieces need to remain stable before cutting, drilling, or machining.

The Heavy Duty C Clamp provides temporary mechanical fixation, helping operators maintain workpiece position during processing preparation.

Welding Positioning

Welding requires accurate positioning before joining components.

The adjustable screw mechanism allows operators to secure parts before welding while maintaining flexibility for final alignment adjustment.

Assembly and Maintenance

In assembly and maintenance operations, flexibility and portability are often more important than automation.

The manual C Clamp provides a practical fixing solution without requiring external power systems, making it suitable for repair stations, workshops, and manufacturing environments.

How to Choose the Right C Clamp

1. Check the Required Jaw Opening

The first consideration is the required clamping range.

Users should evaluate:

• Maximum workpiece thickness
• Available clamping space
• Required adjustment allowance

For this model, the maximum jaw opening is 51mm.

2. Select According to Application Requirements

3. Consider Operating Environment

For frequent industrial use, users should consider:

• Screw adjustment durability
• Frame structure
• Ease of operation
• Compatibility with workpiece dimensions

FAQ | Frequently Asked Questions

Q1: What is the maximum jaw opening of this Heavy Duty C Clamp?

The maximum jaw opening is 51mm. This allows the clamp to accommodate different workpiece thicknesses for industrial fixing and positioning applications.

Q2: Is this C Clamp suitable for welding applications?

Yes. The C-frame structure and manual screw adjustment system make it suitable for welding preparation, temporary fixing, and component positioning.

Q3: Does this clamp require compressed air or electrical power?

No. This is a fully manual mechanical clamp. It operates through screw adjustment and does not require pneumatic, hydraulic, or electrical systems.

Q4: What is the difference between a C Clamp and a pneumatic clamp?

A C Clamp uses manual screw adjustment to generate mechanical clamping force, while a pneumatic clamp uses compressed air for automatic operation.

C Clamps are more suitable for flexible manual operations, maintenance work, and applications requiring direct operator control.

Q5: How should I select the correct C Clamp size?

Selection should be based on:

• Required jaw opening
• Workpiece thickness
• Application environment
• Required adjustment range

The 51mm maximum opening should be matched with the actual workpiece dimensions before selecting the appropriate model.
