Manual Anodizing Clamp for Aluminum Extrusion Profiles | 100mm Maximum Opening Surface Treatment Fixture

Product Overview

During aluminum extrusion anodizing, the clamp is not only responsible for holding the profile but also affects electrical contact stability, anodizing consistency, and production efficiency.

Different aluminum profiles have different cross-sectional designs. If the clamp opening range or gripping structure does not match the profile, problems such as profile movement, unstable contact, and frequent fixture adjustment may occur.

This Manual Anodizing Clamp for Aluminum Extrusion Profiles is designed for aluminum surface treatment production lines. It features a manual mechanical clamping structure, serrated jaw design, and stainless steel spring system.

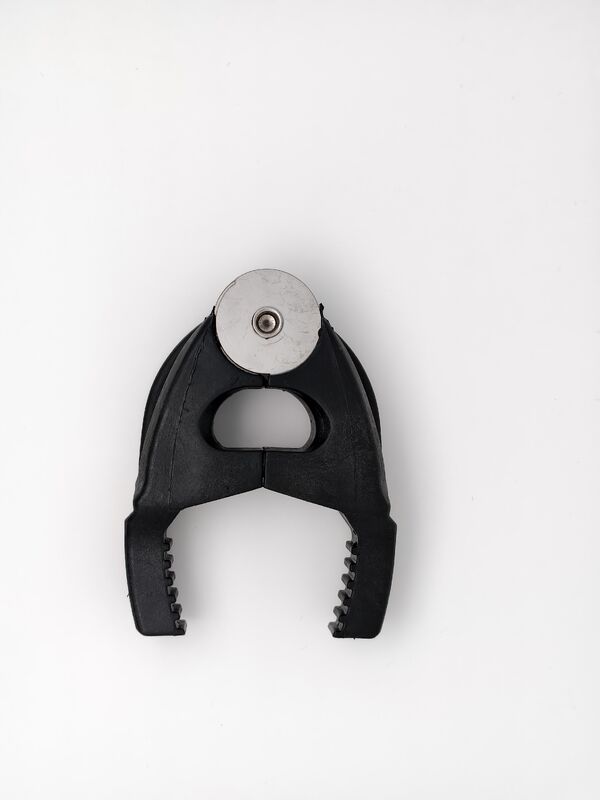

With a 47mm resting opening, 100mm maximum opening, 41mm jaw length, and 5mm stainless steel spring wire diameter, this fixture provides flexible and stable clamping performance for different aluminum extrusion profiles.

Problem

Why Does the Correct Anodizing Clamp Matter in Aluminum Surface Treatment?

In aluminum anodizing production, manufacturers often process various profile sizes, including architectural aluminum, industrial aluminum, and customized extrusion profiles.

An unsuitable clamp may cause:

Unstable Profile Holding

Incorrect clamp size can lead to:

• Profile movement during transportation
• Unstable electrical contact
• Inconsistent anodizing conditions

Insufficient Contact Area

The clamp must provide both mechanical holding and stable electrical connection.

Insufficient contact area may result in:

• Uneven pressure distribution
• Increased contact resistance
• Surface treatment variation

Reduced Manual Production Efficiency

Manual anodizing lines require repeated opening and closing operations.

Poor clamp design may increase:

• Operator workload
• Fixture replacement frequency
• Production interruptions

Cause

What Determines Anodizing Clamp Performance?

Opening Range

The opening capacity directly affects profile compatibility.

This clamp provides:

• Resting Opening: 47mm
• Maximum Opening: 100mm

The wider opening range allows manufacturers to handle more aluminum profile variations.

Jaw Structure

A flat jaw may provide limited gripping performance.

The serrated jaw design improves:

• Mechanical contact
• Anti-slip capability
• Profile positioning stability

Spring Design

The stainless steel spring with 5mm wire diameter provides continuous elastic force for repeated manual clamping operations.

Solution

How Does This 100mm Opening Manual Anodizing Clamp Improve Production?

Flexible Profile Compatibility

The 100mm maximum opening supports different aluminum extrusion sizes and reduces fixture selection problems caused by profile variation.

Serrated Jaw for Stable Holding

The 41mm jaw length increases the effective contact area.

The serrated surface helps maintain stable positioning during:

• Anodizing
• Cleaning
• Material transfer

Stainless Steel Spring Structure

The 5mm stainless steel spring provides reliable mechanical elasticity for repeated production cycles.

Application

Typical Applications

Aluminum Extrusion Anodizing Production Line

Used for:

• Manual profile loading
• Anodizing rack fixing
• Surface treatment processing

Industrial Aluminum Manufacturing

Suitable for:

• Machine frame profiles
• Industrial aluminum components
• Customized extrusion products

Aluminum Surface Treatment Factories

Applied in:

• Aluminum anodizing plants
• Electrophoresis processing factories
• Aluminum finishing companies

How to Choose

1. Select According to Profile Size

Check:

• Profile width
• Actual gripping position
• Profile thickness

For different profile sizes, choose a clamp with suitable opening capacity.

2. Choose According to Production Method

Manual production line:

Choose:
Manual Anodizing Clamp

Automatic production line:

Choose:
Pneumatic Anodizing Clamp

3. Consider Jaw Structure

For anodizing applications, prioritize:

• Serrated jaw design
• Stable contact area
• Reliable spring structure

FAQ

Q1: What aluminum profiles can this manual anodizing clamp hold?

This clamp is suitable for various aluminum extrusion profiles.

With a maximum opening of 100mm, it can handle different profile sizes used in industrial and architectural aluminum processing.

The actual selection should be based on the profile gripping position.

Q2: Why is the 100mm maximum opening important?

The maximum opening determines the profile compatibility range.

A larger opening helps reduce fixture changes when processing different aluminum profiles.

Q3: Does the serrated jaw damage aluminum profiles?

The serrated jaw is designed to improve holding stability.

In production, the clamping position is normally selected according to the anodizing process requirements to protect visible surfaces.

Q4: How do I maintain this manual anodizing clamp?

Regular inspection of:

• Spring elasticity
• Jaw wear
• Mechanical movement

helps maintain consistent performance during long-term anodizing operations.
