Manual Anodizing Aluminum Profile Clamps 68mm Opening

Manual Anodizing Clamp for Aluminum Profiles | 68mm Maximum Opening Surface Treatment Fixture

Product Overview

Manual anodizing clamps are essential fixtures used in aluminum profile surface treatment processes, providing both mechanical holding and electrical connection during anodizing operations.

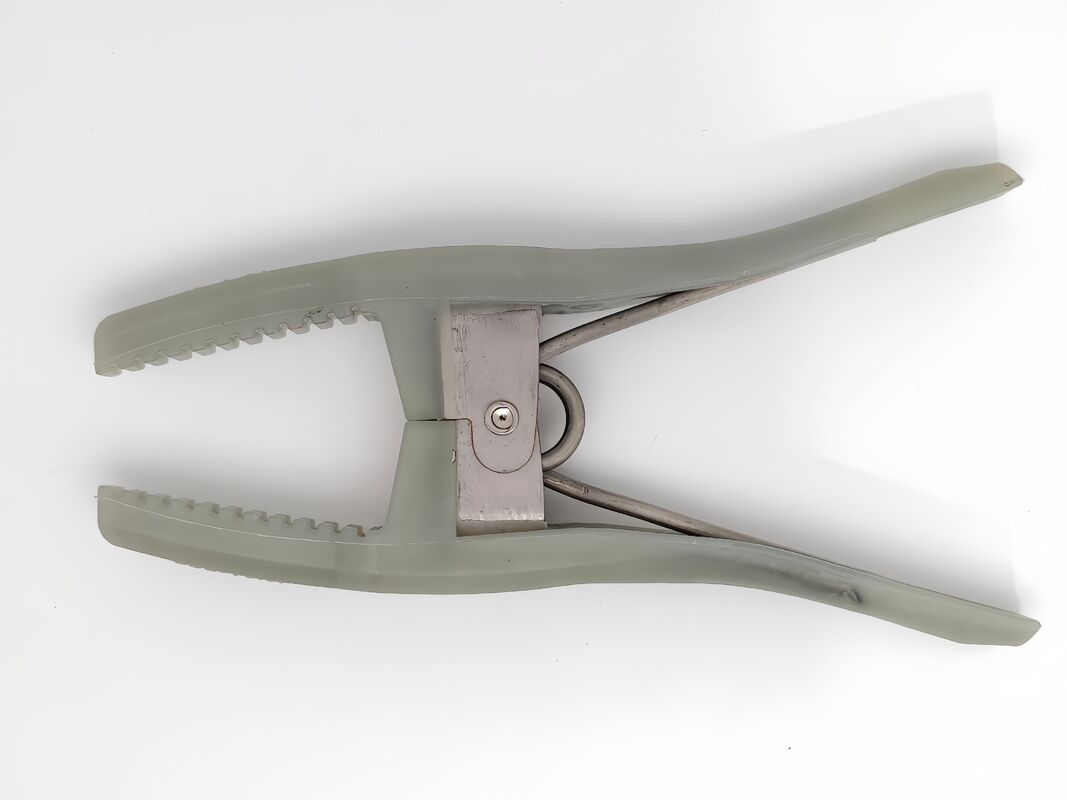

This Manual Anodizing Clamp is designed for aluminum extrusion applications with a serrated jaw structure and mechanical spring clamping mechanism. It features a 68mm maximum opening, 30mm resting opening, and a compact 64×14×14mm jaw structure, providing flexible compatibility with different aluminum profile sizes.

The product focuses on three key requirements in anodizing production:

• Stable profile positioning
• Reliable contact during processing
• Flexible adaptation to different extrusion sizes

Problem

Why do aluminum profiles experience unstable clamping during anodizing?

During aluminum anodizing, clamps are responsible not only for holding profiles but also maintaining a stable connection within the processing system.

Common issues include:

• Clamp size mismatch with profile dimensions
• Insufficient opening range
• Profile movement during processing
• Poor contact caused by unsuitable fixture design

Cause

How does clamp structure influence anodizing performance?

Profile Size Variation

Different aluminum extrusions have different:

• Cross-section designs
• Wall thickness
• Reinforcement structures
• Contact positions

A clamp with insufficient opening capacity may not properly match the profile.

The 68mm maximum opening provides additional adjustment space for different aluminum profiles.

Jaw Contact Design

This clamp features:

• 64mm jaw length
• 14mm jaw width
• 14mm jaw height

The compact jaw structure helps maintain proper contact between the clamp and aluminum profile.

Serrated Jaw Structure

The serrated contact surface improves mechanical gripping and helps reduce unwanted movement during processing.

Solution

Flexible Clamping Range with 68mm Maximum Opening

This manual anodizing clamp provides a practical solution for aluminum profile manufacturers requiring flexible fixture adjustment.

68mm Maximum Opening

Benefits:

• Supports different aluminum profile sizes
• Reduces fixture replacement caused by size variation
• Provides flexible clamping adjustment

30mm Resting Opening

Benefits:

• Provides convenient initial jaw spacing
• Improves manual loading operation
• Supports repeated clamping processes

64mm Jaw Length

Benefits:

• Provides effective contact area
• Supports stable profile positioning
• Suitable for repeated anodizing operations

Application

Aluminum Extrusion Anodizing

Suitable for:

• Industrial aluminum profiles
• Architectural aluminum profiles
• Custom aluminum extrusions

Surface Treatment Production Lines

Used in:

• Aluminum anodizing lines
• Surface treatment processes
• Manual loading systems

How to Choose

Select According to Profile Size

Check the actual gripping position of the aluminum profile before selecting a clamp.

A larger maximum opening is recommended for manufacturers processing multiple profile sizes.

Select According to Jaw Structure

Consider:

• Profile thickness
• Contact position
• Installation space

This clamp features a compact 64×14×14mm jaw structure for space-efficient applications.

Select According to Production Method

FAQ

Q1: What aluminum profiles can this manual anodizing clamp be used for?

It is suitable for various aluminum extrusion profiles, including industrial, architectural, and customized profiles.

The actual selection should be based on the gripping position and profile dimensions.

Q2: Why is the 68mm maximum opening important?

Maximum opening determines the range of profiles that the clamp can accommodate.

A 68mm opening provides greater flexibility for different aluminum profile sizes.

Q3: Does the serrated jaw damage aluminum profiles?

The serrated jaw is designed to improve mechanical gripping stability.

The recommended practice is selecting an appropriate non-visible or process-allowed gripping area according to product requirements.

Q4: How should I choose between manual and pneumatic anodizing clamps?

Manual clamps are suitable for flexible production with frequent profile changes.

Pneumatic clamps are more suitable for automated lines requiring faster repetitive operations.
