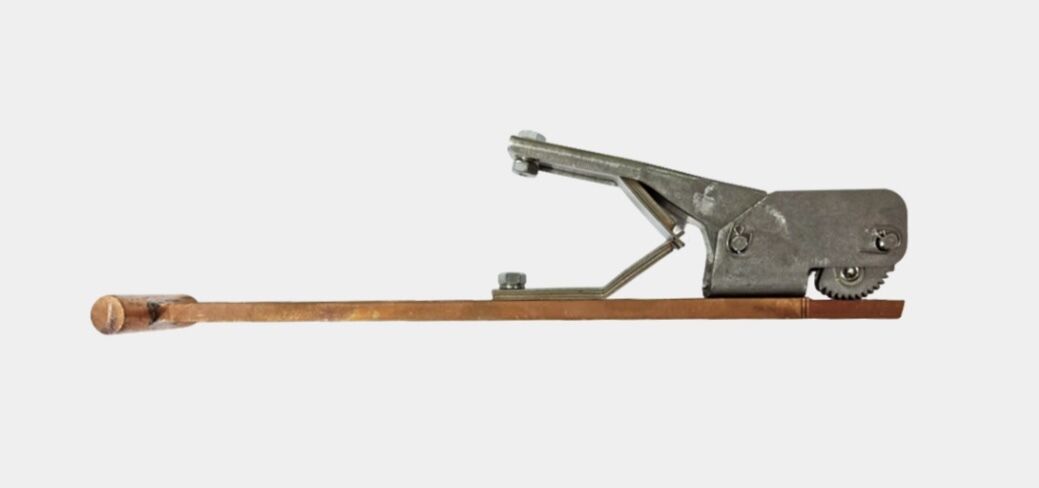

KRT-003 Vertical Anodizing Clamp for Aluminum Profile

327mm Vertical Anodizing Line Clamp with 45mm Handle Height & 8mm Maximum Opening

Product Overview

The KRT-003 Vertical Anodizing Clamp is a specialized fixture designed for aluminum profile vertical anodizing production lines. It is mainly used for aluminum profile clamping, electrical contact connection, and vertical positioning during anodizing surface treatment processes.

In continuous aluminum anodizing production, the clamp is not only a mechanical holding component but also an important connection point between the aluminum profile and the electrical system. The clamp structure, opening size, and installation dimensions directly influence profile positioning, contact stability, and production consistency.

The KRT-003 vertical anodizing clamp adopts a 327mm overall length design, a 45mm handle height structure, and an 8mm maximum jaw opening, making it suitable for vertical anodizing lines that require extended clamp dimensions and convenient manual operation.

Compared with general-purpose clamps, anodizing clamps need to consider both mechanical clamping performance and electrical connection requirements. The correct clamp size helps aluminum extrusion manufacturers achieve better matching with their anodizing line structure and profile specifications.

Problem

Common Challenges in Vertical Anodizing Production Lines

During aluminum profile vertical anodizing processes, clamps operate under continuous production cycles, chemical solution environments, and electrical current transmission conditions.

The performance of the clamp directly affects profile positioning and process stability.

1. Unstable Aluminum Profile Positioning

In vertical anodizing lines, aluminum profiles are usually suspended vertically.

If the clamp does not provide suitable holding force or the jaw size does not match the profile, the aluminum profile may move during lifting, lowering, or chemical treatment.

Possible impacts include:

• Unstable profile positioning
• Uneven contact conditions
• Increased adjustment requirements during production

2. Clamp Size Mismatch with Production Line Structure

Different anodizing factories use different hanging systems, line designs, and operating spaces.

A clamp that is too short may not provide sufficient installation flexibility.

A clamp that is too long may affect operator access and equipment arrangement.

Therefore, clamp length is an important selection factor for vertical anodizing applications.

3. Low Operation Efficiency During Manual Loading

Many aluminum anodizing lines still require manual loading and unloading operations.

Without a suitable handle design, repeated opening and closing operations may become inconvenient.

The handle position and mechanical structure of the clamp directly influence daily operation efficiency.

Cause

Why Does Vertical Anodizing Clamp Design Matter?

A professional vertical anodizing clamp needs to balance three key factors:

• Mechanical holding capability
• Electrical contact performance
• Production line compatibility

1. Jaw Opening Determines Profile Compatibility

The jaw opening is one of the most important specifications when selecting an anodizing clamp.

The KRT-003 provides an 8mm maximum jaw opening.

This dimension helps users evaluate whether the clamp matches their aluminum profile thickness and clamping position.

Different aluminum profiles have different cross-sections and wall thicknesses, so the correct opening size is important for achieving proper contact between the clamp and the profile.

2. Overall Length Affects Installation Matching

The KRT-003 features a 327mm overall length.

This dimension provides a reference for:

• Hanging system matching
• Installation distance
• Operator working space

For vertical anodizing lines requiring a longer fixture structure, the 327mm design provides additional installation flexibility.

3. Handle Height Influences Operation Experience

The KRT-003 is designed with a 45mm handle height.

A defined handle position helps operators identify the opening and closing area more easily during manual operation.

For production lines with frequent loading cycles, ergonomic structure is an important consideration in fixture selection.

Solution

KRT-003 Vertical Anodizing Clamp Technical Solution

The KRT-003 is developed for aluminum profile vertical anodizing lines that require stable clamping, suitable dimensions, and convenient operation.

1. 327mm Extended Structure for Different Line Layouts

The KRT-003 has an overall length of 327mm.

This design is suitable for applications including:

• Vertical anodizing lines with longer installation distance
• Aluminum profiles requiring extended fixture positioning
• Production environments with specific hanging structures

2. 8mm Maximum Jaw Opening for Profile Clamping

The maximum jaw opening of KRT-003 is:

8mm

This specification helps customers select the correct clamp according to:

• Aluminum profile thickness
• Contact position
• Profile structure

3. 45mm Handle Height for Manual Operation

The handle height of KRT-003 is:

45mm

This structural dimension provides a clear operation position for manual opening and closing.

It is suitable for aluminum anodizing factories where operators frequently install and remove profiles from the production line.

Technical Specifications

Application

1. Aluminum Profile Vertical Anodizing Lines

The KRT-003 is mainly used in vertical anodizing production lines for:

• Architectural aluminum profiles
• Industrial aluminum profiles
• Window and door aluminum profiles
• Solar aluminum frame profiles

2. Aluminum Extrusion Processing Plants

After extrusion, aluminum profiles usually require surface treatment processes.

The KRT-003 helps manufacturers achieve:

• Stable profile suspension
• Reliable fixture positioning
• Consistent production operation

3. Customized Aluminum Surface Treatment Lines

Different aluminum factories have different anodizing equipment layouts.

The KRT-003 can be customized according to customer requirements, including:

• Overall clamp length
• Jaw opening size
• Handle structure
• Installation design

How to Choose the Right Vertical Anodizing Clamp

Selecting an anodizing clamp requires consideration of the actual production conditions instead of only looking at the clamp appearance.

1. Select According to Aluminum Profile Size

The first step is to confirm the profile clamping area.

Important factors include:

• Profile thickness
• Cross-section structure
• Required contact position

The KRT-003 with an 8mm maximum jaw opening is suitable for applications where this clamping range matches the aluminum profile design.

2. Select According to Anodizing Line Structure

Before selecting the clamp, customers should check:

• Hanging distance
• Fixture installation position
• Operator access space

The KRT-003 with 327mm overall length is suitable for production lines requiring longer fixture dimensions.

3. Select According to Operation Method

For manual production lines, focus on:

• Handle position
• Opening and closing operation
• Operator convenience

For automated production lines, focus on:

• Dimensional consistency
• Installation compatibility
• Fixture replacement requirements

FAQ

Q1: What is the KRT-003 Vertical Anodizing Clamp used for?

The KRT-003 is designed for aluminum profile vertical anodizing lines.

It is used for:

• Holding aluminum profiles
• Maintaining vertical positioning
• Supporting electrical contact during anodizing processes

Q2: Why does KRT-003 use a 327mm overall length?

The 327mm length is designed for applications where a longer fixture structure is required.

Customers should consider:

• Production line layout
• Hanging system distance
• Operating space

before selecting the clamp size.

Q3: What does the 8mm maximum jaw opening mean?

The 8mm maximum jaw opening represents the maximum opening distance of the clamp head.

This specification helps customers evaluate whether the clamp is suitable for their aluminum profile thickness and clamping requirements.

Q4: Why is the 45mm handle height important?

The 45mm handle height provides a defined operating position.

During repeated manual loading and unloading operations, proper handle dimensions help improve operation control and reduce difficulty during clamp opening.

Q5: Can KRT-003 be customized for different anodizing lines?

Yes.

Customization options include:

• Clamp length adjustment
• Jaw opening modification
• Handle structure optimization
• Installation adaptation

Q6: How should customers choose a suitable vertical anodizing clamp?

Customers should evaluate:

1. Aluminum profile size
2. Required jaw opening
3. Anodizing line structure
4. Installation space
5. Manual or automated operation method

The key selection data for KRT-003:

327mm Overall Length + 45mm Handle Height + 8mm Maximum Jaw Opening

These technical parameters help aluminum extrusion manufacturers quickly evaluate whether the clamp matches their vertical anodizing production requirements.
