Manual Anodizing Clamp for Aluminum Profile Surface Treatment

Product Overview

In aluminum profile anodizing processes, clamps are not only used for holding profiles but also affect positioning accuracy, operation consistency, and production handling efficiency.

Different aluminum profiles require suitable clamp structures and opening ranges. An unsuitable clamp may cause insufficient holding force, profile movement, or inefficient manual operation.

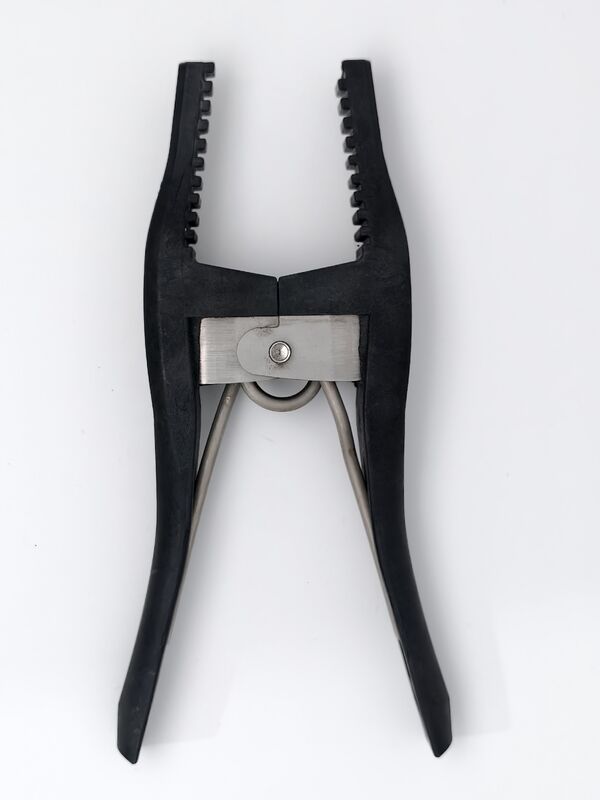

KRT-082 Manual Anodizing Clamp is designed for aluminum profile anodizing and surface treatment lines. It adopts a manual clamping structure and is suitable for anodizing tanks, electrophoresis lines, and other surface treatment applications requiring manual loading.

The clamp features a 201mm overall length, 75mm handle height, 27mm standard jaw opening, and 73mm maximum jaw opening. The structure provides flexible profile compatibility while maintaining convenient manual operation.

Problem

Unstable Profile Holding During Aluminum Anodizing

During anodizing production, clamps must continuously hold aluminum profiles while being exposed to processing environments.

Common problems include:

• Limited compatibility with different profile sizes;
• Insufficient jaw opening range;
• Poor positioning during surface treatment;
• Difficult manual loading and unloading operations.

For production lines handling multiple aluminum profile sizes, an unsuitable clamp design can increase fixture replacement frequency and reduce operational flexibility.

Cause

Incorrect Clamp Dimension Matching with Aluminum Profiles

Clamp performance depends not only on material selection but also on structural dimensions.

Important factors include:

1. Jaw Opening Range

The jaw opening determines the profile size range that the clamp can accommodate.

KRT-082 provides:

• Standard jaw opening: 27mm
• Maximum jaw opening: 73mm

This opening design improves flexibility for different aluminum profile dimensions.

2. Overall Structure Size

A clamp that is too large may affect production space, while a compact structure improves operator handling.

KRT-082:

Overall length: 201mm

The dimension balances holding capability and manual operation requirements.

3. Handle Position Design

The handle position affects operator gripping and repeated loading operations.

KRT-082:

Handle height: 75mm

The design provides a practical operation area for manual anodizing processes.

Solution

KRT-082 Manual Anodizing Clamp Design Solution

KRT-082 addresses manual anodizing requirements through:

Manual Quick Clamping Structure

No pneumatic system or electrical control is required.

Suitable for:

• Manual loading stations;
• Flexible production environments;
• Different aluminum profile processing conditions.

27mm Standard Jaw Opening

The standard opening of:

27mm

provides a defined initial clamping position for repeated manual operations.

73mm Maximum Jaw Opening

The maximum opening of:

73mm

allows greater profile size compatibility and reduces limitations caused by profile variations.

201mm Compact Structure

The overall length of:

201mm

provides a balance between profile holding capability and operator convenience.

Specification Table

Application

Aluminum Profile Anodizing Production Line

KRT-082 is mainly used for fixing aluminum profiles during anodizing and surface treatment processes.

Typical applications include:

Architectural Aluminum Profiles

Examples:

• Window and door profiles;
• Curtain wall profiles;
• Decorative aluminum profiles.

Industrial Aluminum Profiles

Examples:

• Automation equipment frames;
• Mechanical structures;
• Industrial aluminum systems.

Solar Aluminum Profiles

Examples:

• Solar frame profiles;
• Aluminum support structures.

How to Choose Manual Anodizing Clamp

1. Select According to Profile Size

Confirm the profile thickness and clamping position first.

For production involving multiple profile sizes, a larger opening range provides better flexibility.

KRT-082:

Maximum opening: 73mm

2. Choose Manual or Pneumatic Structure

Manual clamps are suitable for:

• Manual loading;
• Small and medium production;
• Flexible profile changes.

Pneumatic clamps are suitable for:

• Automated production lines;
• High-frequency automatic handling.

KRT-082 is designed specifically as a manual clamp.

3. Consider Installation Space

The clamp length should match the working area.

KRT-082:

Overall length: 201mm

FAQ

Q1: What production lines can KRT-082 Manual Anodizing Clamp be used for?

KRT-082 is designed for aluminum profile anodizing lines and can also be used in electrophoresis and other surface treatment processes requiring manual fixture operation.

Q2: Is KRT-082 a pneumatic clamp?

No.

KRT-082 is a manual anodizing clamp. It operates through manual handling and does not require cylinders, air supply, or automatic control systems.

Q3: What does the 73mm maximum jaw opening mean?

The 73mm maximum jaw opening refers to the largest opening distance of the clamp jaws.

This specification determines the range of aluminum profiles that can be accommodated.

Q4: How do I know whether KRT-082 is suitable for my production line?

Check:

• Aluminum profile size;
• Manual or automatic loading method;
• Required opening range;
• Available installation space.

If the application requires manual profile loading and flexible fixture adjustment, KRT-082 is a suitable solution.
