Manual Anodizing Clamp for Aluminum Extrusion Profiles | Custom Surface Treatment Fixture

Product Overview

In aluminum extrusion anodizing production, clamps are not only used to hold profiles. They also affect profile positioning stability, contact consistency, and the reliability of repeated processing operations.

The Manual Anodizing Clamp for Aluminum Extrusion Profiles is designed for aluminum surface treatment applications where operators require a simple and reliable mechanical clamping solution. Through a manual lever structure, the clamp provides convenient opening and closing operation while maintaining stable holding performance during anodizing, electrophoresis, and other surface treatment processes.

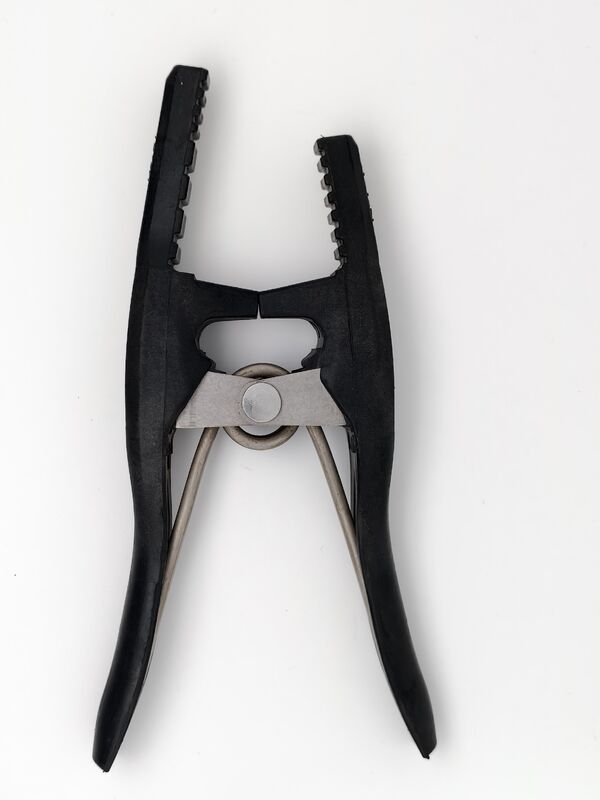

The clamp features a double-side jaw structure with serrated contact surfaces. This design increases the mechanical engagement between the clamp and aluminum profiles, helping reduce profile movement during handling and processing.

Unlike general-purpose clamps, anodizing clamps are developed specifically for aluminum profile production environments, where corrosion resistance, repeatable clamping, and stable positioning are important factors for continuous operation.

Problem｜Common Clamping Problems in Aluminum Anodizing Production

Why do aluminum anodizing lines require dedicated manual clamps?

During aluminum anodizing, profiles usually pass through multiple processes, including:

• Surface cleaning
• Chemical treatment
• Anodizing
• Water rinsing
• Sealing treatment

Throughout these processes, the aluminum profiles must remain correctly positioned.

Using unsuitable clamps may lead to several production issues:

• Profile movement during handling
• Unstable contact position
• Difficult manual operation
• Increased adjustment time when changing profile sizes
• Reduced consistency between production batches

For manual loading and unloading anodizing lines, the clamp must provide both secure holding and convenient operation.

A suitable anodizing clamp is therefore not simply a fixing tool. It is an important fixture component that influences the stability of the entire surface treatment process.

Cause｜Why Do Standard Clamps Fail in Anodizing Applications?

1. Different Aluminum Profiles Require Different Clamping Conditions

Aluminum extrusion profiles have various cross-sectional designs, including:

• Industrial aluminum profiles
• Window and door profiles
• Decorative profiles
• Customized extrusion shapes

Because profile geometry varies, the contact position between the clamp and the aluminum profile directly affects holding stability.

If the clamp structure does not match the profile shape, problems may occur:

• Limited contact area
• Uneven holding force
• Profile shifting during transportation or processing

2. Surface Treatment Environments Are More Demanding

Aluminum anodizing production involves chemical solutions and repeated processing cycles.

Clamps used in these environments need to consider:

• Exposure to treatment liquids
• Frequent opening and closing operations
• Long-term mechanical reliability

A clamp designed only for temporary holding may not meet the requirements of continuous surface treatment production.

3. Manual Production Requires Repeatable Operation

In manual anodizing lines, operators frequently install and remove profiles.

A suitable manual clamp should provide:

• Simple operation
• Clear clamping action
• Stable positioning after repeated use

A well-designed mechanical structure helps operators maintain consistent handling procedures.

Solution｜How Manual Anodizing Clamp Improves Profile Holding

1. Serrated Jaw Design for Improved Mechanical Contact

The serrated jaw structure increases the contact points between the clamp and aluminum profile.

Compared with smooth contact surfaces, serrated jaws can provide:

• Better mechanical engagement
• Reduced slipping possibility
• More stable profile positioning

This structure is especially suitable for aluminum profiles requiring repeated handling during surface treatment.

2. Double-Side Clamping Structure for Balanced Holding

The clamp adopts a double-side jaw design.

The symmetrical structure helps distribute the holding force on both sides of the profile.

Benefits include:

• Improved positioning consistency
• Reduced profile movement
• More balanced mechanical support

3. Manual Mechanical Operation for Flexible Production

The manual structure does not require pneumatic equipment or external power sources.

This makes it suitable for:

• Small and medium production lines
• Multiple profile sizes
• Flexible production environments
• Manual loading and unloading operations

For manufacturers producing various aluminum extrusion profiles, manual clamps provide a practical solution with simple operation and easy maintenance.

Technical Specifications

Note:
The current product information is based on the provided product image. Specific dimensions such as overall length, jaw opening, material specification, and temperature resistance should be confirmed according to engineering drawings or product data sheets.

Application｜Application Areas

1. Aluminum Profile Anodizing Lines

Manual anodizing clamps are widely used in aluminum surface treatment production.

Typical applications include:

• Aluminum profile loading
• Anodizing tank processing
• Profile transfer
• Manual unloading operations

The clamp helps maintain stable profile positioning throughout the treatment process.

2. Multi-Profile Aluminum Extrusion Production

Many aluminum manufacturers process different extrusion designs according to customer requirements.

In these environments, production often requires:

• Frequent profile changes
• Flexible fixture adjustment
• Manual operation

Manual anodizing clamps provide a practical solution for manufacturers who need adaptable clamping tools.

3. Customized Surface Treatment Production

For customized aluminum products with different sizes and shapes, clamp selection is important.

The fixture should match:

• Profile geometry
• Contact position
• Production method
• Handling requirements

Proper clamp selection helps maintain stable operation during repeated processing cycles.

How to Choose｜How to Select the Right Manual Anodizing Clamp?

1. Consider Aluminum Profile Shape and Contact Position

The first step is to evaluate:

• Profile cross-section
• Wall thickness
• Clamping location
• Product weight

The jaw design should match the actual contact area of the aluminum profile.

2. Consider Production Environment

Before selecting a clamp, manufacturers should evaluate:

• Chemical exposure conditions
• Processing frequency
• Cleaning methods
• Production cycle requirements

For long-term anodizing applications, mechanical reliability and corrosion resistance are key considerations.

3. Choose According to Production Mode

Manual anodizing clamps are suitable for:

✔ Flexible production
✔ Multiple aluminum profile sizes
✔ Manual loading systems
✔ Small and medium batch production

Automatic or pneumatic clamps may be considered for:

✔ Fully automated production lines
✔ High-speed continuous processing
✔ Standardized mass production

FAQ｜Frequently Asked Questions

Q1: What is a manual anodizing clamp used for?

A manual anodizing clamp is used to hold aluminum extrusion profiles during anodizing and surface treatment processes.

It helps maintain stable profile positioning during manual loading, processing, and unloading operations.

Q2: What is the difference between a manual anodizing clamp and a standard clamp?

A standard clamp is designed for general holding applications, while a manual anodizing clamp is developed for aluminum surface treatment environments.

The main differences include:

• Specialized jaw design
• Aluminum profile compatibility
• Surface treatment application requirements

Q3: Can manual anodizing clamps be customized for different aluminum profiles?

Yes.

For different extrusion designs, clamps can be customized according to:

• Profile shape
• Jaw opening requirements
• Contact position
• Installation conditions

Q4: How can manufacturers improve clamping stability during anodizing?

Manufacturers can improve stability by:

• Selecting the correct jaw structure
• Matching the clamp with the profile geometry
• Checking jaw wear regularly
• Maintaining clean contact surfaces

Q5: Are manual anodizing clamps suitable for automatic anodizing lines?

Manual anodizing clamps are mainly designed for manual operation systems.

For fully automated anodizing production lines, pneumatic or automatic clamping solutions may be more suitable depending on production requirements and line configuration.
