Manual Anodizing Clamp for Aluminum Extrusion Profiles | Serrated Jaw Surface Treatment Fixture

Product Overview

During aluminum extrusion anodizing processes, clamps are not only used for holding profiles but also affect positioning accuracy, electrical contact stability, and overall processing consistency.

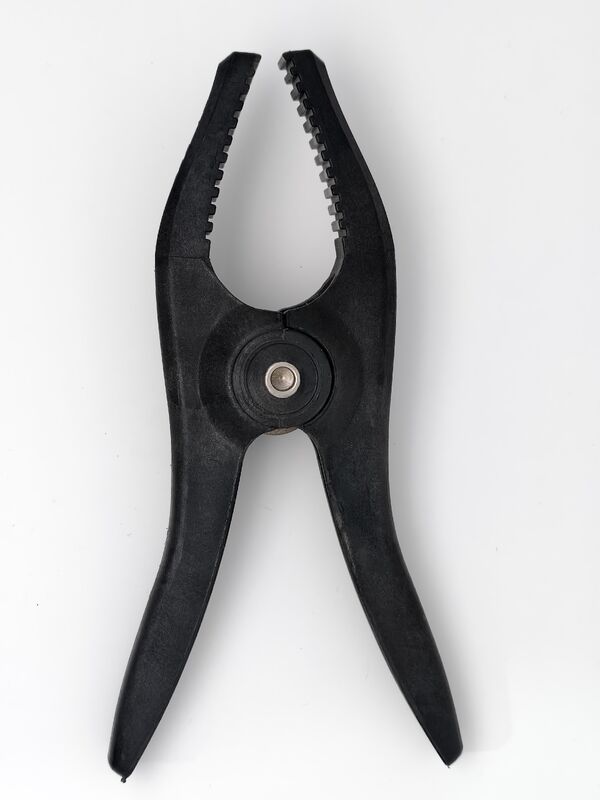

The Manual Anodizing Clamp is designed for aluminum extrusion surface treatment applications. With a dual serrated jaw structure, the clamp improves mechanical engagement between the fixture and aluminum profile, helping maintain stable positioning during anodizing and related processes.

This manual clamp is suitable for manual loading and unloading operations. Compared with smooth jaw clamps, the serrated jaw design increases contact friction and reduces profile movement caused by handling variations, liquid impact, or profile weight changes.

Problem｜Common Clamping Challenges in Aluminum Anodizing

1. Profile Movement During Processing

During anodizing, unstable gripping may cause aluminum profiles to shift.

Smooth contact surfaces may provide insufficient friction when profiles have surface liquid residue or different surface conditions.

2. Frequent Profile Changeover Requirements

Aluminum extrusion manufacturers often process different profile designs:

• Industrial profiles
• Window and door profiles
• Custom extrusion shapes

Different profiles require suitable gripping structures to maintain stable positioning.

3. Long-Term Exposure to Chemical Processing Environments

Anodizing production environments involve:

• Acid solutions
• Alkaline cleaning processes
• Repeated processing cycles

Clamp structure and material selection are important factors affecting service performance.

Cause｜Factors Affecting Clamp Stability

1. Jaw Design Determines Holding Performance

The contact structure between clamp and profile directly influences gripping stability.

A serrated jaw design creates additional mechanical engagement compared with a flat contact surface.

Evidence:

• Product image RJ-059

2. Contact Position Affects Processing Consistency

During anodizing, aluminum profiles need stable positioning.

Incorrect gripping positions may influence:

• Electrical contact area
• Profile alignment
• Surface treatment consistency

3. Operation Method Influences Efficiency

Manual production lines require clamps that provide:

• Quick opening
• Fast gripping
• Repeatable operation

Solution｜Serrated Jaw Manual Anodizing Clamp Solution

1. Dual Serrated Jaw Improves Profile Holding

The clamp uses a dual serrated jaw structure.

The serrated surface increases effective contact points between the clamp and aluminum profile, improving mechanical holding performance during anodizing operations.

Evidence:

• Product image RJ-059

2. Suitable for Various Aluminum Profiles

Aluminum extrusion manufacturers often require flexible production solutions.

Clamp selection should consider:

• Profile dimensions
• Contact position
• Surface treatment requirements

3. Designed for Surface Treatment Applications

Manual Anodizing Clamp supports:

• Stable gripping
• Easy operation
• Repeated usage
• Aluminum surface treatment processes

Application｜Applications

Aluminum Anodizing Production Line

Typical applications include:

• Architectural aluminum anodizing
• Industrial extrusion processing
• Window and door aluminum profiles
• Aluminum surface treatment factories

Electrophoresis and Related Processes

The clamp can also be used in applications requiring manual profile holding during surface treatment operations.

How to Choose｜How to Select the Right Anodizing Clamp

1. Select According to Profile Cross Section

Consider:

• Profile thickness
• Available gripping area
• Surface marking requirements

2. Choose Manual or Pneumatic Type According to Production Method

Manual clamps:

Suitable for:

• Flexible production
• Small batch orders
• Manual loading operations

Pneumatic clamps:

Suitable for:

• Automated production lines
• High-frequency continuous processing

3. Consider Processing Environment

Confirm:

• Chemical exposure conditions
• Temperature requirements
• Operating frequency
• Replacement cycle

FAQ

Q1: Can this Manual Anodizing Clamp fit all aluminum profiles?

No.

Different extrusion profiles have different dimensions and gripping positions. Proper clamp selection should be based on the actual profile structure.

Q2: Why does an anodizing clamp need a serrated jaw design?

The serrated jaw increases mechanical contact between the clamp and aluminum profile, improving holding stability during repeated processing operations.

Q3: What is the difference between manual and pneumatic anodizing clamps?

Manual clamps are operated by workers and provide flexible operation.

Pneumatic clamps use air cylinders and are designed for automated production systems.

Q4: Can anodizing clamps be customized?

Yes.

Customization can be developed according to:

• Aluminum profile size
• Clamping position
• Production line requirements
• Processing conditions
