Manual Anodizing Clamp for Aluminum Extrusion Profiles | 194mm Length with 66mm Maximum Opening

Product Overview

During aluminum extrusion anodizing, electrophoresis, and surface treatment processes, a clamp does more than simply hold the profile. It directly affects fixture positioning, electrical contact consistency, and operation efficiency.

The Manual Anodizing Clamp is designed for manual loading processes and flexible production environments where aluminum profiles vary frequently.

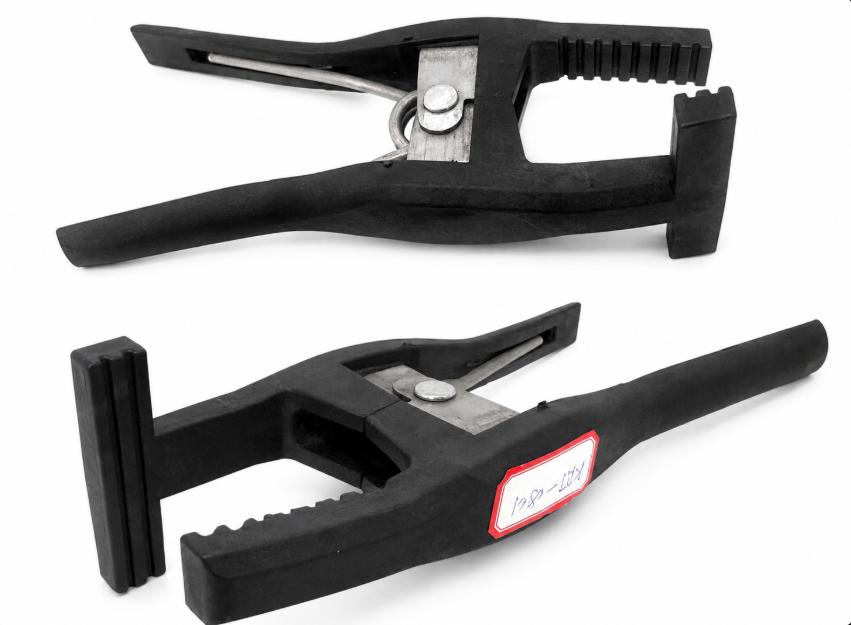

With a 194mm overall length, 27mm resting opening, and 66mm maximum opening, this fixture provides a practical solution for aluminum extrusion surface treatment applications. The handle design includes a 100mm maximum handle width and 75mm grip width to support repeated manual operation.

Problem

Why do manual anodizing clamps have unstable performance during aluminum processing?

In aluminum anodizing production, many clamping problems are caused by incorrect fixture selection rather than the clamp itself.

Common issues include:

• Insufficient opening range for different profiles
• Incorrect contact position on aluminum extrusion
• Difficult manual operation during repeated loading
• Poor compatibility between clamp size and profile design

For production lines handling multiple aluminum profiles, clear dimensional references are essential.

Cause

The main reason is insufficient matching between clamp structure and profile geometry

The correct clamp selection should consider:

Clamp Opening Range

The opening determines profile compatibility.

This clamp provides:

• Resting Opening: 27mm
• Maximum Opening: 66mm

The resting opening defines the natural jaw position, while the maximum opening indicates the available operating range.

Handle Design and Operation Consistency

Manual anodizing requires repeated cycles:

Open clamp → Insert profile → Release clamp → Transfer process

The handle structure affects operator comfort and repeated operation.

This product provides:

• Maximum Handle Width: 100mm
• Grip Width: 75mm

Solution

How does the 194mm Manual Anodizing Clamp improve production operations?

66mm Maximum Opening for Profile Compatibility

The 66mm maximum opening provides an important reference for aluminum profile selection.

Engineers can evaluate compatibility before production to reduce incorrect fixture selection.

27mm Resting Opening for Accurate Selection

The resting opening provides information about the clamp condition before operation.

The 27mm resting opening helps operators understand:

• Initial clamp position
• Loading method
• Profile compatibility

194mm Compact Structure Design

The 194mm overall length provides a balanced structure between operating space and fixture size.

It is suitable for manual loading environments where flexibility is required.

Application

This Manual Anodizing Clamp is suitable for:

• Aluminum extrusion anodizing lines
• Manual surface treatment production
• Electrophoresis processing
• Customized aluminum profile manufacturing
• Small and medium batch production

How to Choose a Manual Anodizing Clamp

1. Check the profile gripping dimension

Always compare the clamp opening with the actual aluminum profile gripping position.

The maximum opening is one of the most important selection references.

2. Match the clamp type with production method

Manual Clamp:

Suitable for flexible production and multiple profile sizes.

Pneumatic Clamp:

Suitable for automated continuous production lines.

3. Consider operator handling requirements

For frequent manual operation, check:

• Handle width
• Grip size
• Opening mechanism

These factors influence long-term usability.

FAQ

Q1: What is the difference between a manual anodizing clamp and a pneumatic clamp?

A manual anodizing clamp uses mechanical operation, while a pneumatic clamp uses compressed air control.

Manual clamps are suitable for flexible production environments, while pneumatic clamps are generally used in automated systems.

Q2: How can I confirm whether this 66mm opening clamp fits my aluminum profile?

Measure the actual gripping position of the aluminum profile and compare it with the 66mm maximum opening.

Correct matching should consider both size and contact position.

Q3: Why is the resting opening important for anodizing clamp selection?

The maximum opening shows the limit capacity, but the resting opening shows the normal working condition.

The 27mm resting opening helps engineers evaluate loading requirements more accurately.

Q4: Can this manual anodizing clamp be customized for different aluminum profiles?

Yes. Customization should be based on profile size, gripping position, and production requirements.
