40mm Opening Manual G Clamp for Industrial Applications

Product Overview

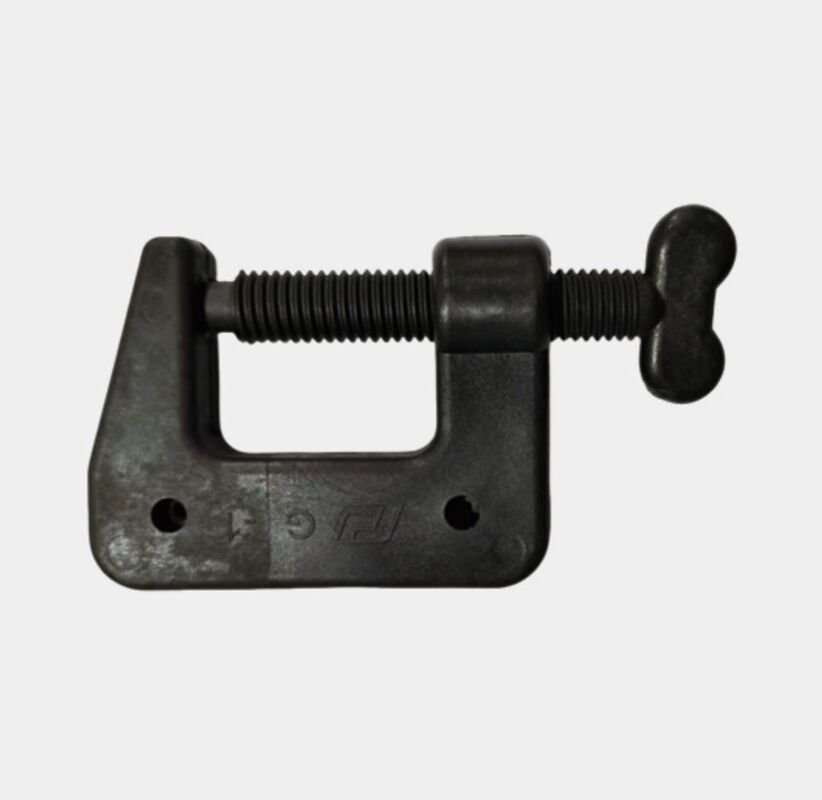

The 40mm Opening Manual G Clamp is a mechanical clamping tool designed for industrial fixing, positioning, and auxiliary fixture applications. It uses a traditional screw adjustment structure to control the clamping distance manually, allowing operators to secure different workpieces according to actual size requirements.
Unlike pneumatic or hydraulic clamps, this manual G clamp does not require an air source or additional control system. Its compact G-shaped frame and adjustable screw mechanism make it suitable for manufacturing environments where flexible positioning, simple operation, and reliable mechanical fixing are required.
With a maximum opening of 40mm, this clamp provides a practical solution for small and medium-size workpiece holding applications, including aluminum profile processing, fixture positioning, assembly assistance, and surface treatment support.

Problem｜Common Challenges in Industrial Clamping

Unstable Fixing During Processing

In many manufacturing processes, workpieces may shift during drilling, assembly, welding, inspection, or surface treatment preparation.
When the fixture cannot provide sufficient positioning support, even small movement can affect processing accuracy and increase adjustment time.
For operators, the challenge is not only holding the workpiece but also maintaining a repeatable fixing position during repeated operations.

Fixed-Size Clamps Cannot Handle Different Workpieces

Traditional fixed clamps usually have limited adjustment capability.
When production involves different material thicknesses or different workpiece dimensions, operators may need multiple clamp sizes, increasing tool management complexity.
A flexible mechanical clamp with adjustable opening can reduce the need for frequent fixture replacement.

Complex Clamping Systems Increase Maintenance Requirements

Pneumatic and hydraulic clamping systems provide automation advantages but require additional components such as cylinders, air supply systems, valves, and maintenance procedures.
For manual operations, temporary fixtures, or low-volume production environments, a mechanical clamp can provide a simpler alternative.

Cause｜Why Clamping Problems Occur

Incorrect Clamp Size Selection

One common reason for unstable fixing is selecting a clamp without considering the actual opening requirement.
The maximum opening determines whether the clamp can properly cover the workpiece thickness.
For this G Clamp, the maximum opening is 40mm, which should be considered before application selection.

Lack of Adjustable Positioning Mechanism

A fixed-position clamp may not adapt well when workpiece dimensions change.
The screw adjustment structure of a manual G Clamp allows the operator to control the clamping position gradually instead of relying on fixed dimensions.

Mismatch Between Clamp Type and Application

Different production environments require different clamp structures.
Pneumatic clamps are suitable for automated lines requiring frequent opening and closing cycles, while manual mechanical clamps are more suitable for flexible positioning, auxiliary fixing, maintenance work, and small-batch production.

Solution｜40mm Opening Manual G Clamp Design Advantages

Screw Adjustment for Flexible Fixing

The manual screw adjustment mechanism allows operators to fine-tune the clamping distance according to workpiece dimensions.
This structure provides direct mechanical control and does not depend on compressed air or electrical systems.
The adjustment method is especially suitable for applications where operators need quick fixture changes and manual positioning.

Compact G-Shaped Frame Structure

The G-shaped frame provides a compact structure while maintaining a stable support area.
The open throat design allows the clamp to reach different fixing positions, making it suitable for various workpiece holding requirements.
The compact structure also helps reduce installation space requirements in production areas.

40mm Maximum Opening Capability

The key specification of this model is the 40mm maximum opening.
This parameter helps engineers evaluate compatibility before selecting the clamp.
For workpieces within this opening range, the clamp can provide adjustable mechanical fixing support without requiring additional power systems.

Product Specification Parameters

Key Data for Technical Content Integration

Application｜Industrial Usage Scenarios

Aluminum Profile Processing

In aluminum profile processing, manual G clamps can be used as auxiliary positioning tools during cutting, drilling, inspection, or fixture preparation.
The 40mm opening capacity allows the clamp to support many small and medium-size profile fixing requirements.
For aluminum-related applications, the clamp should be selected according to profile thickness, contact position, and required holding force.

Assembly and Manufacturing Fixtures

During assembly processes, operators often need temporary positioning before final fastening.
A manual G Clamp provides adjustable fixing without requiring permanent fixture installation.
It is commonly used for component alignment, temporary holding, and assembly assistance.

Maintenance and Workshop Applications

For maintenance departments and workshops, flexible tools are important because different repair tasks require different fixing positions.
The mechanical structure allows quick operation without preparing air pressure systems or electrical connections.

How to Choose the Right Manual G Clamp

1. Confirm Maximum Opening Requirement

The first selection factor is the required opening size.
If the workpiece thickness exceeds the clamp opening capacity, the clamp cannot provide effective fixing.
This model provides a 40mm maximum opening, making it suitable for applications within this range.

2. Consider Operation Frequency

Manual G Clamps are recommended for applications requiring flexible adjustment and moderate operation frequency.
For high-frequency automated production cycles, pneumatic clamps may be more suitable.

3. Evaluate Installation Space

The compact G-shaped structure should match the available working space.
In areas with limited access, a smaller mechanical clamp design may provide better flexibility.

FAQ｜Frequently Asked Questions

Q1: What is the maximum opening of this Manual G Clamp?

The maximum opening of this G Clamp is 40mm.
This specification determines the maximum workpiece thickness or fixture distance that can be accommodated.
Before purchasing, users should compare the 40mm opening with the actual clamping position required in their application.

Q2: Is this G Clamp a pneumatic clamp?

No.
This product is a manual mechanical clamp operated through a screw adjustment mechanism.
It does not include pneumatic cylinders, air connections, or automatic opening systems.
It is designed for applications where manual adjustment and flexible fixing are required.

Q3: Can this clamp be used for aluminum profile applications?

Yes, it can be used as an auxiliary fixing tool for aluminum profile processing applications.
However, the suitability depends on profile size, contact position, and required fixing method.
For aluminum surface treatment lines requiring automatic loading or frequent cycling, pneumatic or dedicated anodizing clamps may be more appropriate.

Q4: How should users select the correct G Clamp size?

Users should consider three main factors:

1. Required maximum opening distance
2. Workpiece shape and contact area
3. Operation frequency and production environment

For this model, the key selection value is the 40mm maximum opening.

Q5: What are the advantages compared with pneumatic clamps?

The main advantage is simplicity.
A manual G Clamp does not require compressed air, valves, or additional control components.
For temporary fixing, maintenance operations, and flexible workshop applications, the mechanical structure provides an efficient solution with fewer system requirements.
