Manual Anodizing Clamp for Aluminum Profile Surface Treatment | Serrated Jaw Fixture

Product Overview

During aluminum profile anodizing and surface treatment processes, clamps are not only used for holding profiles but also influence positioning stability, contact reliability, and processing consistency.

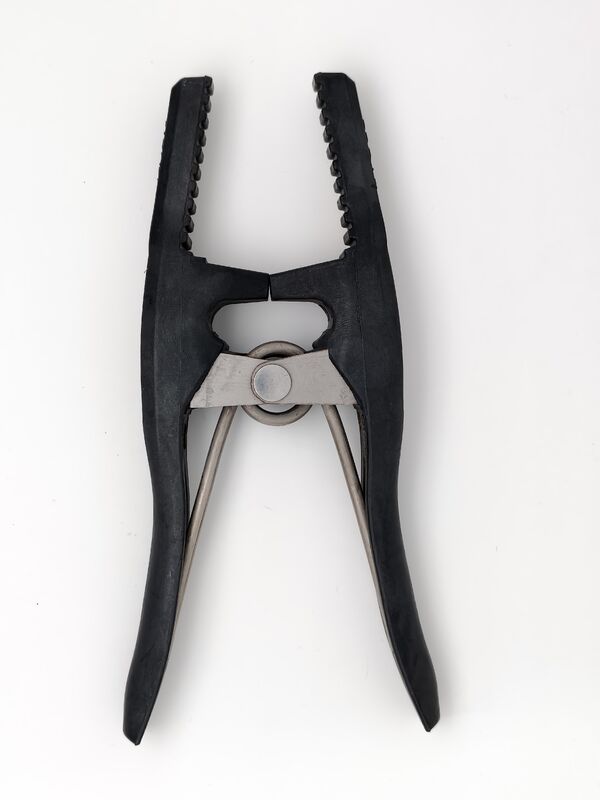

The Manual Anodizing Clamp is designed for aluminum extrusion profiles during anodizing, electrophoresis, and related surface treatment operations.

The clamp adopts a mechanical manual operation structure with a Serrated Jaw Design. The toothed gripping surface improves contact stability between the clamp and aluminum profiles, making it suitable for flexible production environments with multiple profile sizes and customized extrusion designs.

Problem

Why Do Aluminum Surface Treatment Processes Need Dedicated Manual Clamps?

During anodizing production, aluminum profiles must remain stable throughout the treatment process.

Common problems include:

Profile movement during clamping

Different aluminum profiles have different:

• Cross-section designs
• Wall structures
• Gripping positions
• Surface conditions

Traditional smooth clamps may not provide enough mechanical holding capability.

Reduced processing consistency

Unstable clamping may cause:

• Profile movement
• Position adjustment requirements
• Inconsistent operation

For aluminum processors handling multiple products, clamp adaptability becomes important.

Poor performance of general industrial clamps

Standard clamps are usually not designed for:

• Acid and alkaline environments
• Anodizing processes
• Repeated industrial cycles

Cause

Why Do Traditional Clamps Have Limitations?

1. Contact design does not match extrusion profiles

Aluminum extrusion profiles have complex shapes.

Without proper jaw design, clamping force cannot be effectively transferred.

2. Smooth jaws rely only on friction

Traditional flat jaws depend mainly on surface friction.

Serrated jaws improve mechanical contact by creating multiple gripping points.

3. Flexible production requires adaptable fixtures

Many aluminum manufacturers process:

• Different profile sizes
• Customized orders
• Small production batches

A flexible manual fixture can simplify operation.

Solution

Serrated Jaw Manual Anodizing Clamp for Stable Profile Holding

Serrated jaw structure

The serrated jaw design increases contact points between the clamp and aluminum profile.

This structure helps reduce profile movement during surface treatment operations.

Manual mechanical operation

The manual structure provides:

• Simple operation
• No compressed air requirement
• Flexible profile adjustment

It is suitable for customized and small-batch production.

Designed for aluminum surface treatment

The clamp is suitable for:

• Aluminum profile anodizing
• Aluminum extrusion processing
• Surface treatment applications

Application

Aluminum Anodizing Production

Used for fixing aluminum profiles during anodizing processes.

Suitable for:

• Industrial aluminum profiles
• Architectural aluminum profiles
• Customized extrusions

Flexible Production

Manual clamps are suitable when manufacturers need frequent profile changes and flexible positioning.

Customized Aluminum Processing

The clamp structure can be adjusted according to:

• Profile dimensions
• Clamping position
• Production requirements

How to Choose

1. Select According to Profile Geometry

Check:

• Available gripping area
• Profile edge position
• Contact requirements

2. Select According to Production Mode

Manual clamps are suitable for:

• Small batches
• Multiple profile types
• Customized production

3. Consider Processing Environment

Confirm:

• Chemical exposure
• Temperature requirements
• Operating conditions

FAQ

Q1: What is a manual anodizing clamp used for?

A manual anodizing clamp is used to hold aluminum profiles during anodizing and surface treatment processes.

It provides flexible manual clamping for different aluminum extrusion profiles.

Q2: Why does this clamp use a serrated jaw design?

The serrated jaw improves mechanical contact between the clamp and aluminum profile.

It is suitable for profiles with different shapes and gripping conditions.

Q3: Can the clamp be customized?

Yes.

The clamp can be customized according to profile dimensions, gripping position, and production requirements.

Q4: Is it suitable for automatic anodizing lines?

This product is mainly designed for manual or flexible production environments.

Automatic production lines may require pneumatic anodizing clamps.

Q5: What information is needed for clamp selection?

Customers should provide:

• Aluminum profile drawing
• Profile dimensions
• Required gripping position
• Surface treatment process
• Working environment
