Product Details
Place of Origin: China
Brand Name: Krieit
Model Number: KRT-106
Payment & Shipping Terms
Minimum Order Quantity: 500
Packaging Details: packed in cartons
Delivery Time: 5days
Payment Terms: D/A,D/A,D/P,T/T
Supply Ability: 1000pcs/day
|
Name:
|
Automatic Clamping Component For Aluminum Surface Treatment Lines
|
Type:
|
Pneumatic-driven Industrial Clamp For Automated Production Systems
|
Main Application:
|
Aluminum Anodizing, Electrophoresis, And Surface Treatment Lines
|
Clamping Structure:
|
Dual-side Jaw Clamping Structure
|
Jaw Design:
|
Toothed Anti-slip Clamping Jaws
|
|
Name:
|
Automatic Clamping Component For Aluminum Surface Treatment Lines
|
|
Type:
|
Pneumatic-driven Industrial Clamp For Automated Production Systems
|
|
Main Application:
|
Aluminum Anodizing, Electrophoresis, And Surface Treatment Lines
|
|
Clamping Structure:
|
Dual-side Jaw Clamping Structure
|
|
Jaw Design:
|
Toothed Anti-slip Clamping Jaws
|
In aluminum anodizing production, the key question is often not whether a clamp is available, but whether the clamp geometry actually matches the profile cross-section, gripping position, and racking method.
Standard clamps may work well for common profiles, but irregular aluminum extrusions, special-shaped components, or restricted gripping positions often require a customized fixture.

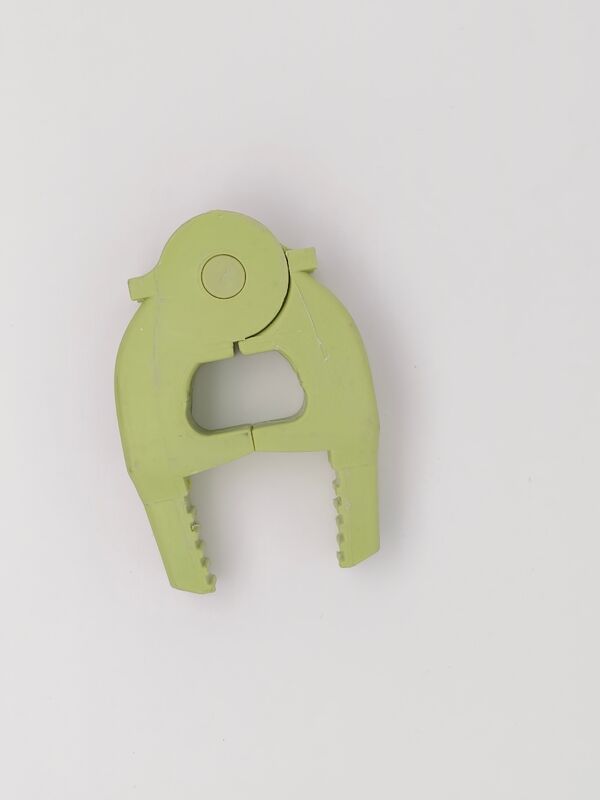

This custom anodizing clamp is designed for aluminum anodizing and surface treatment lines where standard fixture dimensions cannot properly match the workpiece. The visible design uses two opposing jaws, two serrated gripping sections, and one central mechanical pivot, providing a structural basis for customer-specific clamping solutions.
Aluminum extrusion profiles vary significantly in cross-section.
Architectural profiles, industrial extrusions, solar frame components, and customized aluminum parts may have completely different wall thicknesses, grooves, edges, and available gripping areas.
When a standard clamp is used on a non-standard profile, several problems can occur:
Increasing clamping force alone does not solve these issues.
The real question is whether the jaw geometry matches the workpiece geometry.
Stable clamping begins with proper contact.
If the jaw only touches a narrow edge of the profile, even a relatively strong clamp may still provide an unstable contact condition.
For a customized anodizing fixture, the following factors should be evaluated:
This is why a custom clamp should not be selected only by maximum opening.
The current fixture uses two serrated gripping sections.
Serrations create multiple local mechanical contact points between the clamp and the workpiece.
For some aluminum profiles, this type of jaw can help reduce the risk of movement during racking, transfer, and processing.
However, a serrated jaw should not be described as “100% slip-proof.”
Actual performance still depends on workpiece geometry, weight, contact position, jaw dimensions, and clamping force.
A clamp may appear suitable in its resting position but interfere with the profile, rack bar, or neighboring workpieces when opened.
For this reason, selection should consider several parameters together:
Resting Jaw Opening
Maximum Jaw Opening
Jaw Travel
Installation Clearance
These dimensions should be evaluated as one system.
This fixture follows a customer-specific, non-standard design approach.
The current product structure includes:
| Specification | Current Configuration |
|---|---|
| Product Type | Custom Anodizing Clamp |
| Number of Jaws | 2 |
| Serrated Contact Sections | 2 |
| Central Mechanical Pivot | 1 |
| Jaw Type | Dual Serrated Jaw |
| Design Type | Customer-Specific Non-Standard Design |
| Main Application | Anodizing and Surface Treatment Racking |
| Target Workpieces | Irregular Profiles and Special-Shaped Aluminum Parts |
The product uses two opposing gripping jaws.
Unlike a one-sided pressing structure, the two jaws establish mechanical contact from opposite directions and provide a more defined positioning area.
During customization, jaw geometry, jaw length, and contact location can be designed around the customer's extrusion profile.
Both jaws contain serrated gripping surfaces, creating two mechanical engagement areas.
This configuration is particularly useful when a smooth profile surface does not provide enough geometric engagement.
For applications where surface marking must be controlled, tooth depth, tooth pitch, and contact position should also be considered.
Deeper serrations are not automatically better.
The clamp includes one central mechanical pivot point.
The pivot provides the mechanical reference for opening and closing movement.
Its position can influence:
Therefore, pivot geometry should be evaluated together with the workpiece dimensions.
Profiles with grooves, thin walls, unusual edges, or complex structural features may not provide a suitable gripping point for standard clamps.
A customized jaw can be developed based on the actual profile cross-section.
Customer-designed extrusion profiles often have no universal fixture solution.
Instead of forcing the component to fit an existing clamp, the fixture can be designed around the component.
Some profiles have large visible surfaces and allow clamping only in hidden or subsequently machined areas.
In such cases, the fixture must be designed around the permitted gripping location.
A clamp must not only hold the workpiece but also fit into the existing racking system.
Rack bars, conductive components, and neighboring workpieces can limit the available space, so the clamp's opened movement path should also be checked.
For accurate customization, provide:
This is normally the most important input for jaw design.
Do not confuse:
Resting Jaw Opening
with
Maximum Jaw Opening
The resting opening determines the clamp's initial geometry, while maximum opening determines whether the workpiece can be inserted.
Long aluminum profiles may generate additional movement during transfer and processing.
Workpiece length and weight therefore affect gripping position and fixture design.
An anodizing clamp normally requires direct mechanical contact with the workpiece.
If cosmetic surfaces are critical, specify:
If the fixture will work with pneumatic opening equipment, additional information should be supplied, including:
Only after these details are confirmed should the product be positioned specifically as a Pneumatic Anodizing Clamp.
A standard clamp normally uses a fixed jaw geometry and predefined opening range.
A custom anodizing clamp is designed around the customer's profile cross-section, wall thickness, gripping position, and racking environment.
For irregular profiles, contact geometry is often more important than overall clamp size.
Serrated jaws create multiple local mechanical contact points.
The current design uses two serrated contact sections, helping increase mechanical engagement and reduce the risk of relative movement under suitable gripping conditions.
The serration geometry should still be selected according to the profile surface and acceptable contact-mark area.
No.
Maximum opening only indicates how far the clamp can open.
It does not guarantee that every smaller workpiece can be held correctly.
Resting opening, jaw shape, contact position, wall thickness, and clamping direction must also be considered.
A photo is useful for preliminary evaluation, but it is not recommended as the only design reference.
A profile drawing, key dimensions, gripping position, and installation conditions provide much better information for fixture development.
Usually not.
The purpose of a custom fixture is to match a specific workpiece or a defined profile range rather than to function as a universal clamp.
Different cross-sections, weights, and racking methods may require different jaw designs.
Customization should be considered when a standard clamp cannot fit the profile, contacts the visible surface, allows excessive workpiece movement, interferes with the production line, or cannot match a customer-specific extrusion cross-section.
In these situations, simply choosing a larger standard clamp may not solve the actual engineering problem.
