Why Does an Automatic Racking Clamp Fail to Match Aluminum Profiles? Key Dimensions to Check

On a fully automatic aluminum anodizing line, clamp mismatch is often not caused by a defective clamp. The real issue is usually a geometric mismatch between the clamp, aluminum profile cross-section, and automatic loading path.

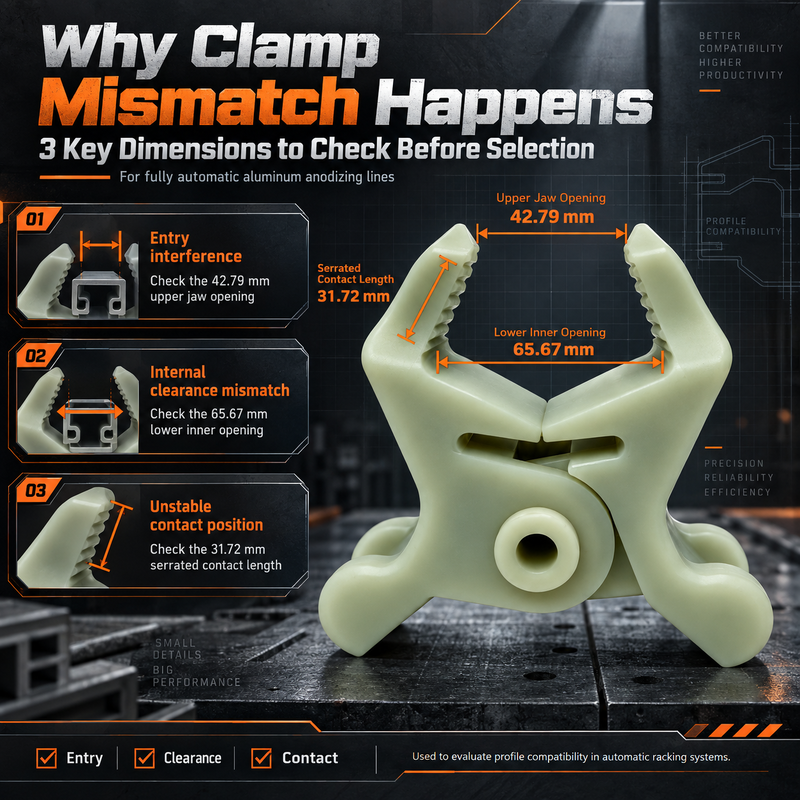

For this automatic racking clamp, three confirmed dimensions are especially useful for troubleshooting and selection:

• 42.79 mm Upper Jaw Opening
• 65.67 mm Lower Inner Opening
• 31.72 mm Serrated Jaw Contact Length

These three dimensions describe profile entry, internal clearance, and final gripping contact.

Problem: Why Can a Profile Enter the Clamp but Still Rack Incorrectly?

A profile may physically fit inside a clamp and still fail to reach the correct gripping position.

Typical symptoms include:

• shallow profile insertion
• inconsistent gripping positions
• additional machine offset during loading
• contact only at the top edge of the serrated jaw
• one profile working correctly while another section causes interference
• correct machine motion but incorrect final profile position

The problem is therefore not simply:

“Is the clamp opening large enough?”

The more useful question is:

“Can the profile move through every stage of the automatic loading path and reach the intended gripping zone?”

Cause: What Creates Clamp-to-Profile Mismatch?

1. Treating 65.67 mm as the maximum opening

The image confirms:

Upper Jaw Opening: 42.79 mm

and

Lower Inner Opening: 65.67 mm

The difference is:

22.88 mm

This clearly shows that the jaw does not form a uniform-width channel.

The 65.67 mm measurement represents a wider internal region. It is not a confirmed maximum dynamic opening.

For example, a profile section that is 50 mm wide might appear compatible when compared only with 65.67 mm.

However, it still has to pass through the narrower 42.79 mm upper region first.

A flange, rib, or projection may therefore cause interference before the profile reaches the wider internal space.

2. Measuring overall profile width instead of the gripping section

Aluminum extrusions often include:

• ribs
• cavities
• T-slots
• flanges
• radiused corners
• changing wall thickness

The overall profile width does not necessarily represent the geometry that enters the clamp.

The more important dimension is the:

local cross-section at the actual gripping position and loading orientation.

A large extrusion may still be compatible if its gripping section is narrow.

A smaller extrusion may fail if the gripping section has a large projection.

3. Ignoring insertion depth

Successful entry does not guarantee successful gripping.

The confirmed:

31.72 mm Serrated Jaw Contact Length

defines the available serrated contact region.

If the profile stops too early, it may contact only the upper edge of the serrated zone rather than reaching the intended gripping position.

4. Ignoring the fixed machine motion path

Manual operators can rotate or reposition a profile during loading.

Automatic equipment normally follows a fixed path.

Therefore, a clamp that works well during manual loading may still fail in a fully automatic system.

Automatic selection must consider the profile's movement envelope, not only its final position.

Solution: How Can Clamp Mismatch Be Prevented?

Step 1: Divide the selection process into three stages

Instead of relying on one nominal opening value, evaluate:

Entry → Internal Clearance → Contact

For this clamp:

42.79 mm
→ entry clearance reference

65.67 mm
→ internal clearance reference

31.72 mm
→ serrated gripping region

This provides a more realistic picture of how the profile moves through the clamp.

Step 2: Measure the local profile geometry

For accurate selection, check:

• width at the intended gripping point
• largest local dimension along the loading direction
• ribs and projecting edges
• gripping surface length
• intended insertion depth

For complex extrusion sections, a cross-section drawing is far more useful than one overall width measurement.

Step 3: Allow operating clearance

The 42.79 mm value is a measured upper jaw opening.

It should not be interpreted as:

42.79 mm profile width = guaranteed fit

Real production must also account for:

• profile dimensional tolerance
• machine positioning deviation
• profile orientation variation
• small movement during automatic loading

A suitable operating clearance should therefore be maintained.

A fixed percentage should not be assumed without actual line data.

Step 4: Verify the final contact surface

After confirming that the profile can enter, identify which surface actually reaches the 31.72 mm serrated region.

If the contact location falls on:

• a deep groove
• a radius
• a very narrow edge
• an irregular projection

then dimensional clearance alone does not confirm suitability.

The gripping position may need to be changed or another clamp geometry considered.

Application: Where Does Clamp Mismatch Most Commonly Occur?

Lines processing multiple aluminum profiles

Different extrusion sections may have similar overall dimensions but very different gripping geometries.

Each section should therefore be evaluated independently.

New profile introduction

When a new aluminum extrusion is introduced, its gripping geometry should be compared with:

42.79 mm / 65.67 mm / 31.72 mm

before automatic production settings are finalized.

Converting manual racking to automatic racking

A clamp that performs well during manual loading may not automatically be suitable for fixed-path automation.

The motion path becomes an additional selection requirement.

Troubleshooting an existing automatic line

If machine movement is repeatable but the final profile position is inconsistent, clamp-to-profile geometry should be checked before changing machine programming.

How to Choose the Correct Automatic Racking Clamp

1. Provide the complete extrusion drawing

Avoid relying only on overall width and height.

2. Mark the actual gripping location

Identify where the clamp will really contact the aluminum profile.

3. Check the 42.79 mm upper entry area

Verify whether the profile can enter along the actual loading direction.

4. Check the 65.67 mm internal space

Confirm that the profile can move deep enough without structural interference.

5. Check the 31.72 mm serrated region

Verify whether the intended contact surface reaches the available gripping zone.

6. Evaluate the complete automatic motion path

Check not only the final position but also whether interference occurs while the profile is moving into the clamp.

This method is better suited to fully automatic anodizing lines because it evaluates the real loading process, not just nominal dimensions.

FAQ

Q1: Why can a profile smaller than 65.67 mm still fail to fit?

Because 65.67 mm represents the lower internal opening.

The profile must first pass through the narrower 42.79 mm upper jaw opening, where interference may occur.

Q2: Is 42.79 mm the maximum allowable profile width?

No.

It is the measured upper jaw opening and should be treated as an entry-clearance reference.

Actual compatibility also depends on geometry, tolerance, loading direction, and machine positioning.

Q3: Why does the 31.72 mm serrated contact length matter?

Because entering the clamp is only part of the process.

The profile must also reach an effective gripping position within the serrated jaw region.

Q4: Can one automatic racking clamp be used for multiple aluminum profile sizes?

Possibly, but each profile should be evaluated at its actual gripping section.

Similar overall dimensions do not guarantee identical clamp compatibility.

Q5: What is the most commonly overlooked factor when selecting an automatic racking clamp?

The automatic motion path.

A profile may fit perfectly in the final position but still interfere with the clamp while entering. For automatic anodizing lines, entry clearance, internal clearance, gripping position, and movement direction should all be checked together.
