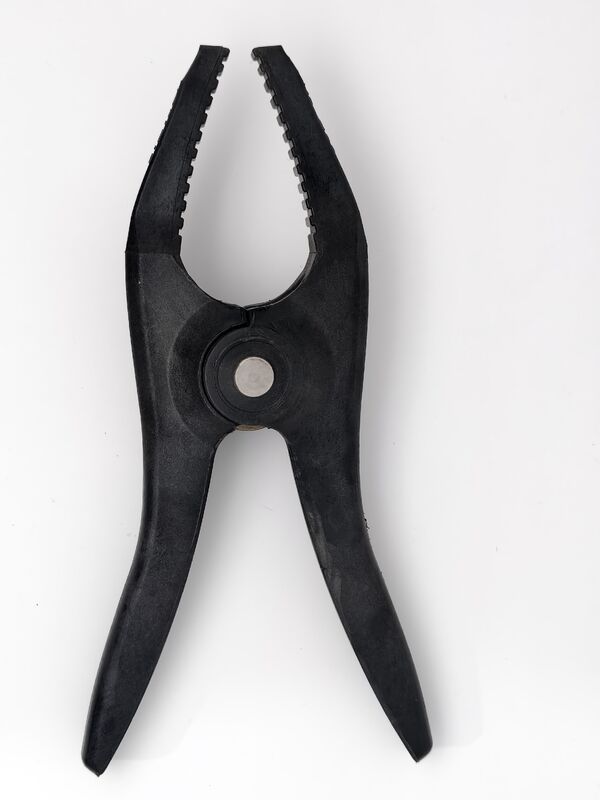

Acid & Alkali Resistant 190mm Aluminum Anodizing Manual Clamp

Product Positioning

The Acid & Alkali Resistant 190mm Aluminum Anodizing Manual Clamp is designed for aluminum anodizing, electrophoresis, and surface treatment production lines. It is mainly used for fixing and positioning aluminum profiles in anodizing tanks, electrophoresis systems, and surface treatment processes.

Unlike standard industrial clamps, anodizing clamps need to work under chemical exposure, temperature changes, and continuous production conditions. This manual clamp features a mechanical clamping structure with corrosion resistance and acid/alkali resistance, making it suitable for aluminum surface treatment applications.

The series covers overall lengths from 190mm to 217mm, while the 190mm version is suitable for production lines requiring compact fixture dimensions and flexible installation.

Problem

Why Do Anodizing Tanks Require Dedicated Manual Clamps?

During aluminum anodizing, clamps are exposed to complex production environments and need to maintain stable holding performance.

1. Chemical solutions can affect standard clamps

Anodizing and electrophoresis processes involve acidic and alkaline treatment solutions.

Unsuitable clamps may experience:

• corrosion;
• changes in contact areas;
• reduced repeat-use stability;
• unstable profile positioning.

Therefore, corrosion-resistant clamps are required for surface treatment applications.

2. Different aluminum profiles require different clamp sizes

Aluminum profiles vary in size and application.

Fixture selection needs to consider:

• clamp length;
• jaw opening;
• profile dimensions;
• production layout.

3. High-temperature processes require suitable clamps

Some surface treatment processes involve elevated temperatures.

According to the product specification, this clamp series provides temperature resistance up to:

280℃

Cause

Why Are Acid & Alkali Resistant Clamps Required?

1. Chemical environment in anodizing processes

During anodizing, clamps may contact:

• acidic solutions;
• alkaline cleaning environments;
• chemical treatment processes.

The product features:

• Corrosion Resistant
• Acid & Alkali Resistant

Suitable for aluminum anodizing and electrophoresis applications.

2. Fixture dimensions affect production compatibility

Specifications:

Solution

How Does the 190mm Manual Clamp Solve Anodizing Fixture Challenges?

1. Designed for anodizing and electrophoresis environments

Applications include:

• aluminum anodizing lines;
• electrophoresis coating lines;
• surface treatment systems.

2. Compact 190mm design

Suitable for:

• limited installation space;
• compact production layouts;
• flexible fixture arrangements.

3. Multiple opening options

Application

Aluminum Anodizing Production Lines

Used for:

• aluminum oxidation processing;
• anodizing tank fixation;
• surface treatment fixture systems.

Electrophoresis Production Lines

Suitable for:

• aluminum electrophoresis;
• coating processes;
• profile positioning.

Aluminum Extrusion Surface Treatment

Applications include:

• architectural aluminum profiles;
• industrial aluminum profiles;
• solar aluminum frames.

How to Choose

1. Choose according to process environment

Consider:

• acid exposure;
• alkaline exposure;
• temperature conditions.

Recommended features:

• corrosion resistance;
• acid and alkali resistance;
• suitable temperature resistance.

2. Choose according to profile dimensions

Check:

• clamp length;
• jaw opening;
• installation position.

Reference:

• Length: 190–217mm
• Static Jaw Opening: 18–28mm
• Maximum Opening: 69–77mm
• Some Series: Up to 88mm

3. Choose according to production layout

Consider:

• anodizing tank size;
• hanging system;
• profile arrangement;
• operation space.

FAQ

Q1: What is the Acid & Alkali Resistant 190mm Manual Clamp used for?

It is mainly used in aluminum anodizing, electrophoresis, and surface treatment production lines for profile fixing and positioning.

Q2: Why cannot standard clamps be used in anodizing tanks?

Because anodizing tanks involve chemical solutions and temperature conditions. Standard clamps may not be designed for long-term chemical exposure.

Q3: What aluminum profile sizes can this clamp handle?

Selection depends on the required opening size. The series provides maximum openings from 69–77mm, with some models reaching up to 88mm.

Q4: Can this clamp be used for electrophoresis lines?

Yes. It is suitable for aluminum electrophoresis processes as a production line fixture.

Q5: Is customization available?

Yes. The clamp can be customized according to production line requirements, profile dimensions, and application conditions.
