Serrated Jaw Aluminum Profile Anodizing Clamp | Anti-Slip Racking Fixture for Aluminum Extrusion Surface Treatment

Product Overview

During aluminum extrusion anodizing, the clamp is not only responsible for holding the profile but also affects electrical contact stability, anodizing consistency, and production efficiency.

Traditional fixing methods may experience profile movement, unstable contact, and inconsistent positioning due to profile variation, liquid circulation, and repeated production cycles.

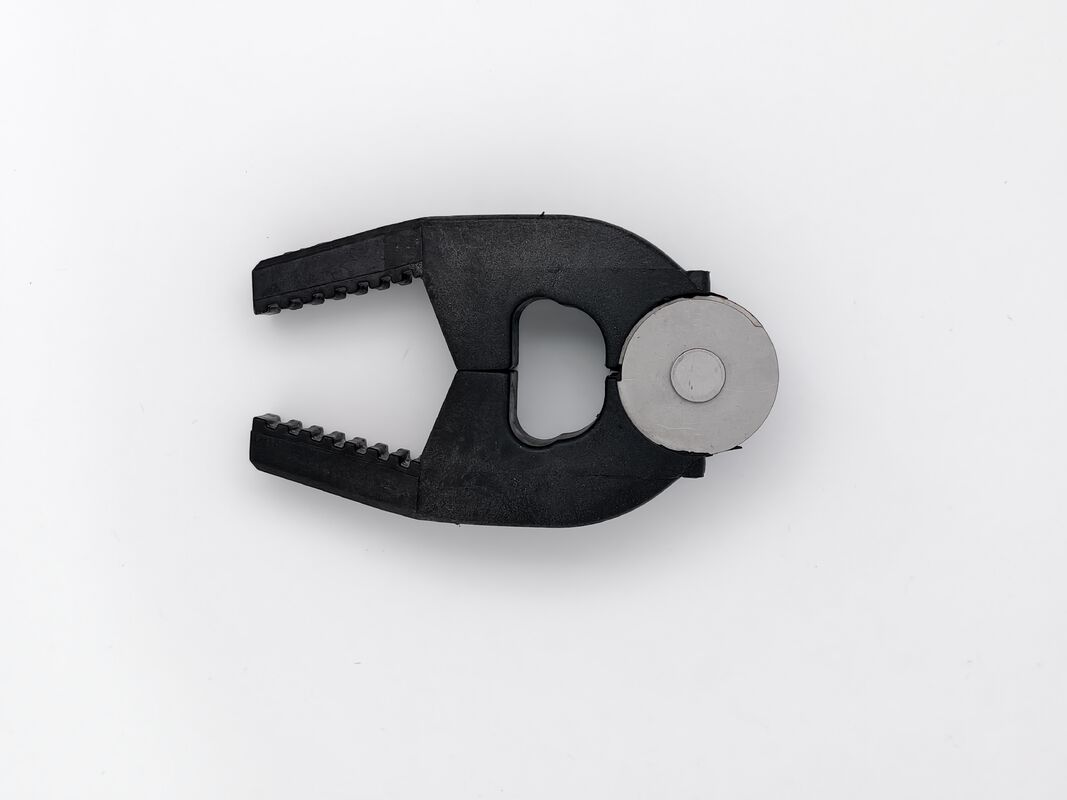

The Serrated Jaw Aluminum Profile Anodizing Clamp uses a toothed gripping structure to create stronger mechanical contact between the clamp and aluminum profiles.

Designed for aluminum extrusion anodizing and surface treatment lines, this manual fixture supports repeated loading operations and flexible production environments.

Problem｜Common Clamping Problems in Aluminum Anodizing

Profile Movement During Surface Treatment

Aluminum profiles usually pass through multiple processes:

• Degreasing
• Washing
• Electrochemical oxidation
• Coloring
• Sealing

During these processes, unstable clamping may cause:

• Profile position changes
• Poor electrical contact
• Inconsistent anodizing results
• Surface quality issues

Flat Jaw Clamps May Have Limited Grip Performance

Aluminum extrusion surfaces may include:

• Extrusion marks
• Different cross-section designs
• Residual processing liquid
• Different wall thickness areas

A smooth jaw mainly relies on compression force, which may not provide sufficient mechanical locking.

Traditional Wire Fixing Reduces Efficiency

Traditional fixing methods may increase:

• Loading time
• Manual adjustment requirements
• Production inconsistency

Cause｜Why Do These Problems Happen?

1. Insufficient Mechanical Contact

An anodizing clamp must maintain stable holding force and electrical contact during production.

Without effective gripping design, profiles may move due to:

• Profile weight
• Solution circulation
• Production movement

2. Different Profile Designs Require Flexible Clamping Solutions

Aluminum extrusion profiles vary widely:

• Industrial profiles
• Architectural profiles
• Custom extrusion shapes

3. Fixture Structure Influences Production Consistency

Repeated loading requires:

• Simple operation
• Stable positioning
• Reliable repeat use

Solution｜Serrated Jaw Anti-Slip Clamping Solution

Serrated Jaw Design Improves Mechanical Grip

The double serrated jaw structure provides:

• Increased contact friction
• Improved profile holding capability
• Reduced slipping risk

The serrated jaw design is the key structural feature that differentiates this clamp from conventional flat jaw fixtures.

Mechanical Pivot Clamping Structure

The pivot mechanism provides:

• Manual operation
• No pneumatic supply required
• Flexible production adjustment

Designed for Aluminum Extrusion Surface Treatment

The fixture is developed for:

• Aluminum anodizing lines
• Surface treatment processes
• Repeated industrial clamping operations

Key Specifications

Evidence Source:

• Product structure: Screenshot No. RJ-Q10

Application

Aluminum Extrusion Anodizing Production Line

Suitable for:

• Aluminum profile anodizing plants
• Industrial extrusion finishing
• Architectural aluminum treatment
• Custom aluminum processing

How to Choose the Right Anodizing Clamp

1. Match the Jaw Design with Profile Characteristics

For profiles requiring stronger holding performance, choose:

• Serrated jaw design
• Mechanical gripping structure

2. Select According to Production Requirements

3. Consider Processing Environment

Important factors include:

• Chemical exposure
• Temperature conditions
• Production cycle frequency
• Profile weight

FAQ

Q1: What makes a serrated jaw anodizing clamp different from a standard clamp?

The serrated jaw structure improves mechanical contact and helps maintain more stable profile positioning during anodizing operations.

Q2: Can this clamp be used for different aluminum extrusion profiles?

Yes. The suitable clamp design depends on:

• Profile shape
• Weight
• Contact position
• Production requirements

Q3: Is this a pneumatic anodizing clamp?

No.

This model is a manual mechanical anodizing clamp. Pneumatic versions are recommended for automated loading systems.

Q4: Will the serrated jaw damage aluminum profiles?

The clamp should be positioned on the designed contact area. Proper selection of clamping position and force helps protect the visible surface area.

Q5: Can this anodizing clamp be customized?

Yes.

Customization can be provided according to:

• Profile dimensions
• Jaw opening requirements
• Production line conditions
• Application requirements
